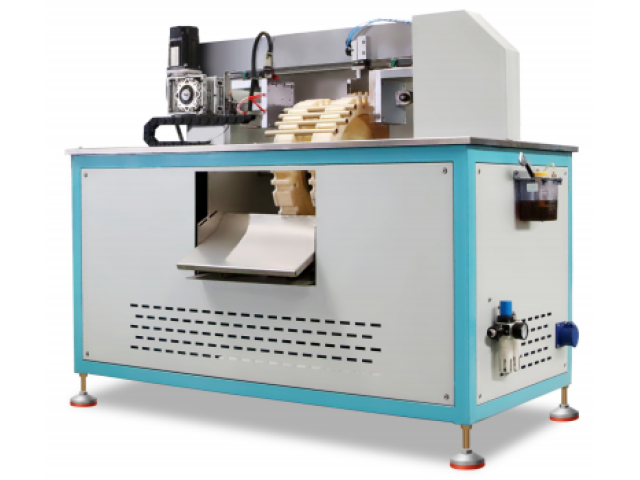

QCR-S4 Paper-tube Curling Machine

QCR-S4 Paper Tube Curling Machine designed for mass production of small-diameter tube(8mm-40mm) curling,the latest hot-pressing curling technology applied with the machine to make the majority of paper tubes able to work without lubricating,at the meantime effectively reduce wrinkle rate.

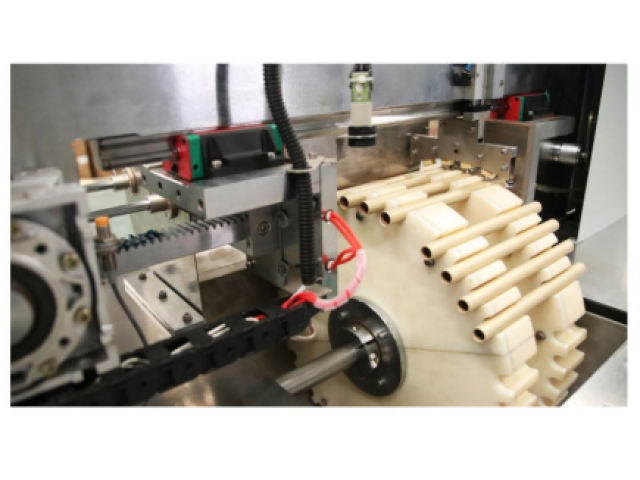

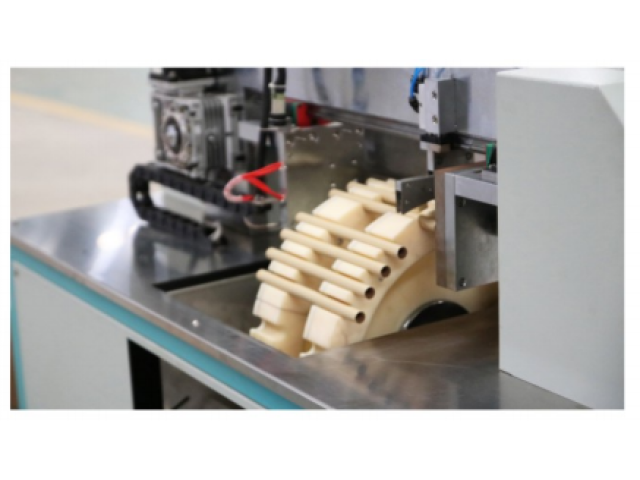

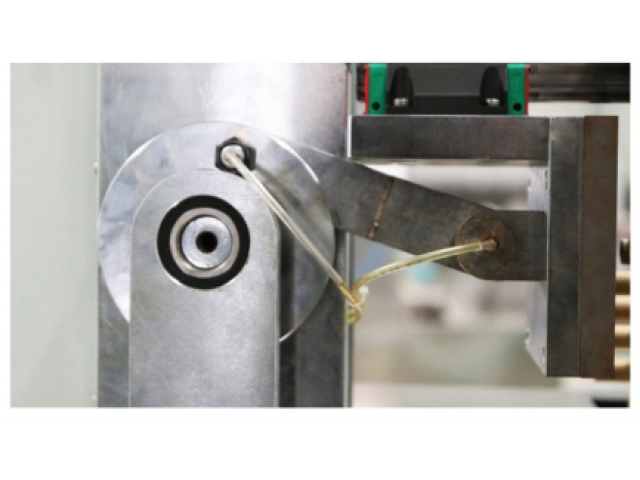

The wheel design paper-tube delivering structure is more stable for small tubes and durable working life.

Email:admin@amamachine.com

Whatsapp:+86 17758110836

Online Inquiry


MODEL

QCR-S4 Paper-tube Curling Machine

Diameter of Paper Tube

⊘8mm-40mm

Length of Paper Tube

50mm-300mm

Paper-tube Thickness

0.5mm-1.2mm

Precision

0.3mm-0.5mm

Curling Speed

60-100pcs/min.

Tube Storage/time

100-300pcs

Rated Power

2KW

Air Supply

0.4MPA-0.6MPA

Voltage

AC220V,50Hz,1-PH

Dimension(L×W×H)

1250×750×1300mm

Net Weight

300kgs
