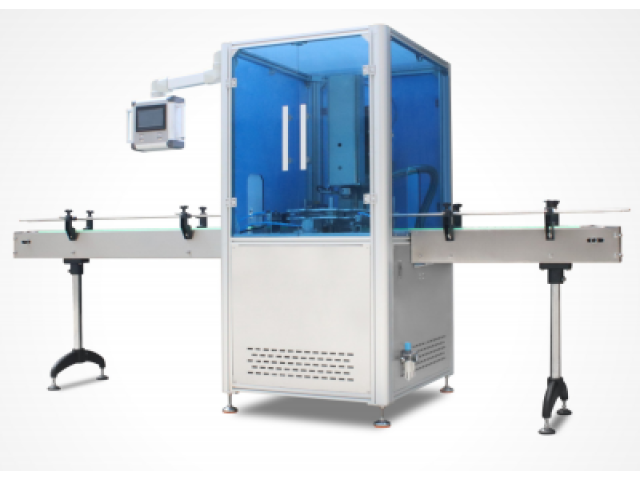

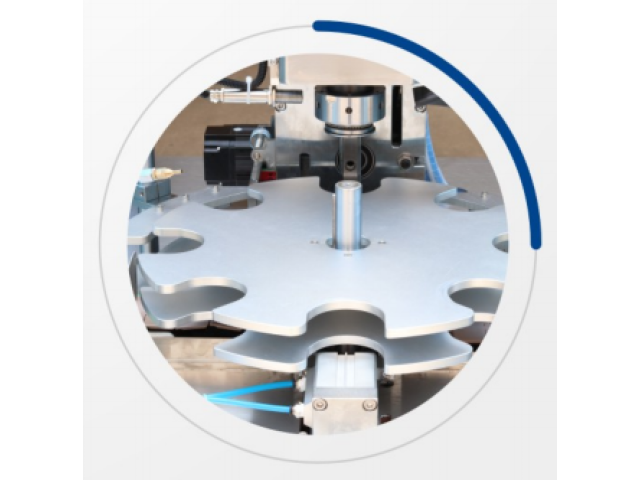

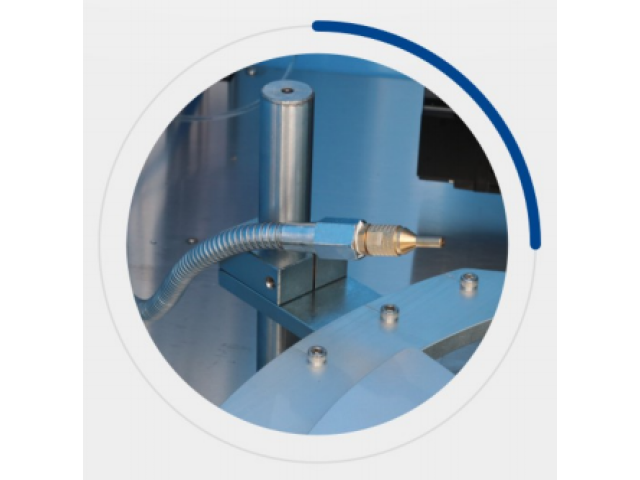

QCR-S3 Paper-tube Curling Machine is automatic paper-tube feeding 360°curling machine,it is 8 cam station for high speed curling,the unique automization system for lubricating is adjustable to avoid oil residue at tube edge after curling;The machine body made of high-strenth aluminum profile and stainless steel to meet food-grade requirements,compact structure and a wide usage of applications.
Email:admin@amamachine.com
Whatsapp:+86 17758110836
Products-display
|
MODEL |
QCR-S3 Paper-tube Curling Machine |
|
Diameter of Paper Tube |
⊘30mm-126mm |
|
Length of Paper Tube |
70mm-250mm |
| Paper-tube Thickness |
0.7mm-1.5mm |
|
Precision |
0.3mm-0.5mm |
|
Main Engine Speed |
0-1400rpm |
|
Curling Speed |
40-60pcs/min. |
| Tube Storage/time |
20-30pcs |
|
Rated Power |
3.3KW |
|
Air Supply |
0.4MPA-0.6MPA |
|
Voltage |
AC220V,50Hz,1-PH |
|
Dimension(L×W×H) |
3800×1110×1800mm |
|
Net Weight |
620kgs |
