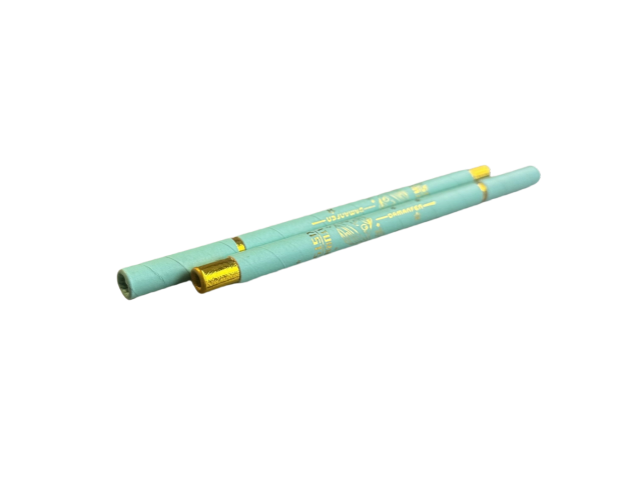

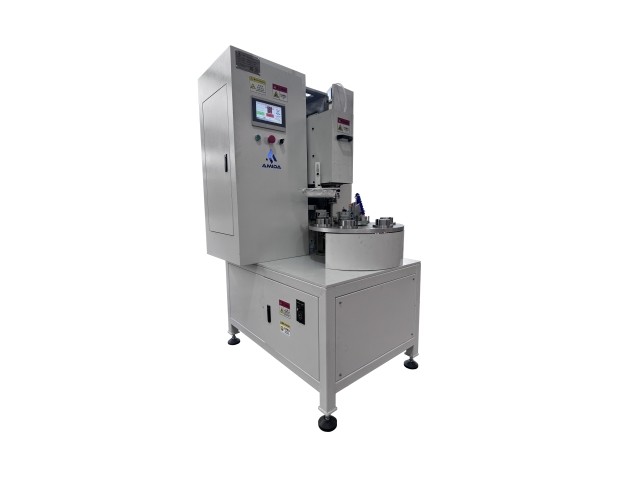

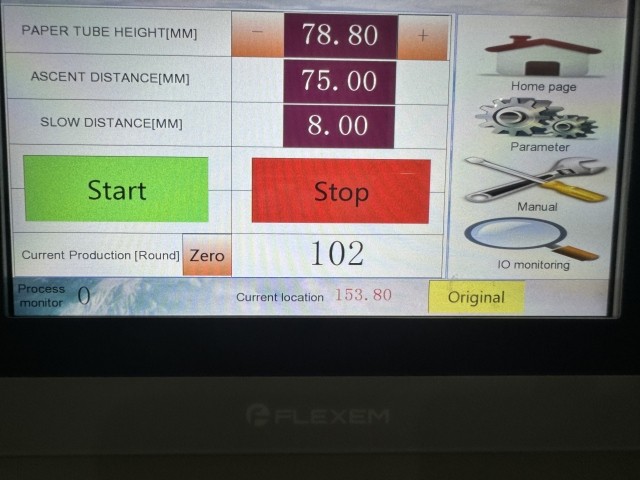

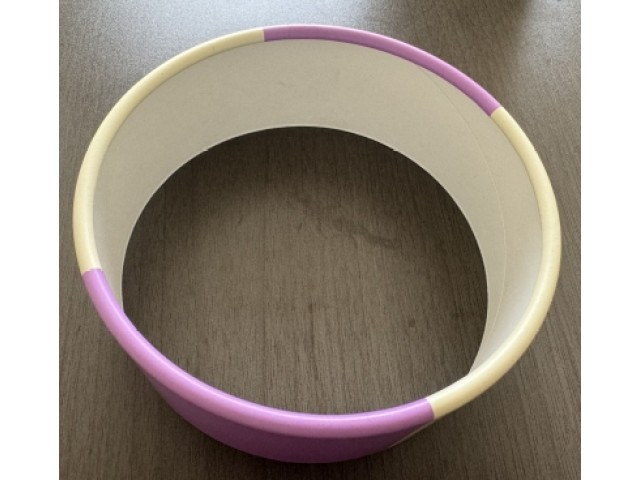

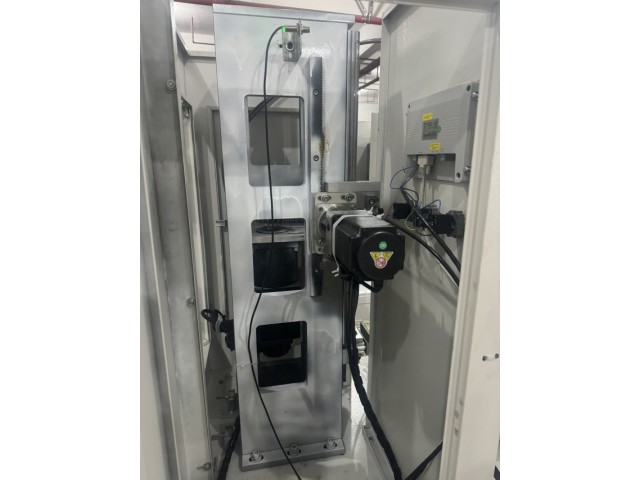

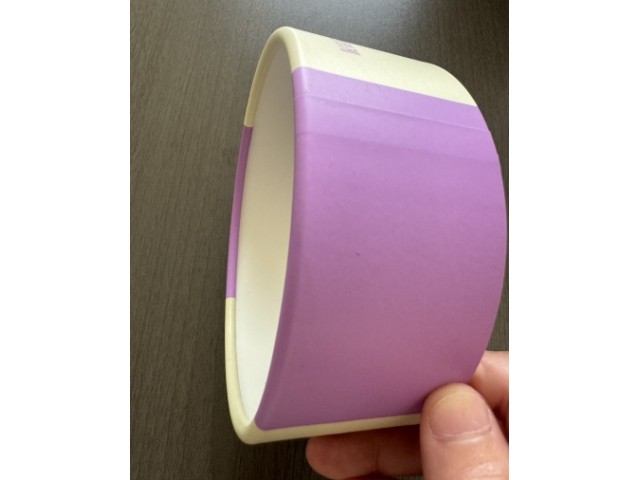

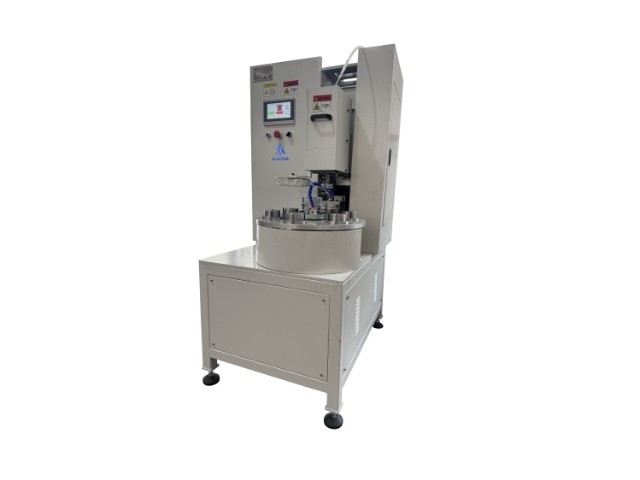

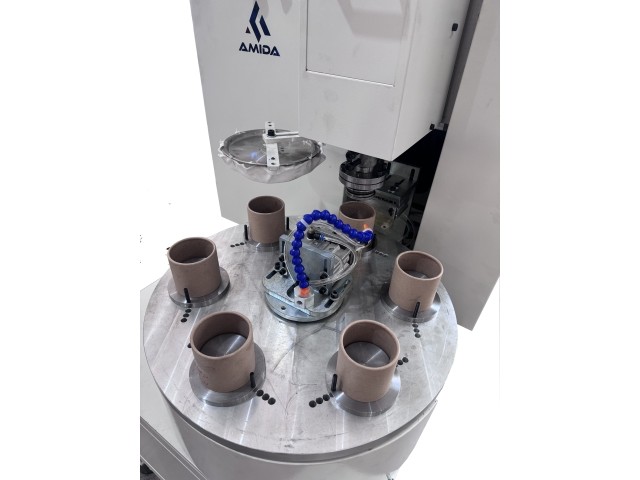

QCR-S2 Paper Tube Curling Machine is 6-station used for curling paper tube 180°-360° according to the tube diameter and tube thickness.The machine driven by 2-servo and pneumatic system, PLC system controlling, intelligent operating and stable machine running.
Products-display
|
MODEL |
QCR-S2 Paper-tube Curling Machine |
|
Diameter of Paper Tube |
40mm-150mm(360°curling) 8mm-150mm(180°curling) |
|
Length of Paper Tube |
25mm-400mm(360°curling) |
|
Working Speed |
1-50pcs/min |
|
Thickness of Paper Tube |
0.7mm-2mm |
|
Rated Power |
6KW |
|
Air Supply |
0.3MPA-0.5MPA |
|
Voltage |
AC220V,50Hz,1-PH |
|
Dimension(L×W×H) |
750×850×1550mm |
|
Net Weight |
500kgs |
