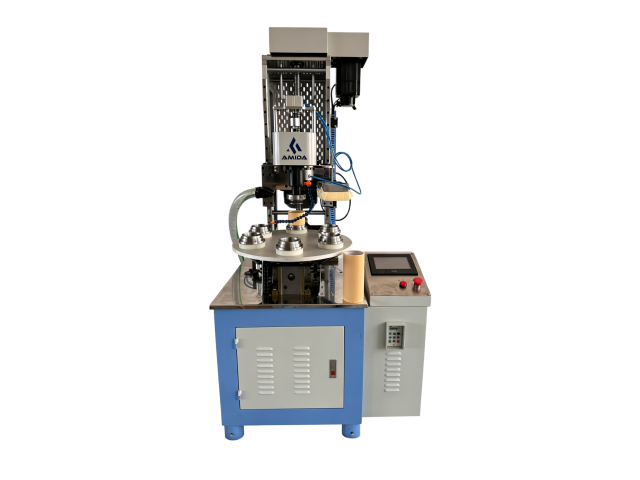

QCR-S1 Paper-tube Curling Machine used for curling paper tube 360° the machine controlled by PLC system and pneumatic system, the spindle lifting controlled by one servo.Simple operating and easy machine after-sale maintenance.
Email:admin@amamachine.com
Whatsapp:+86 17758110836
Products-display
|
MODEL |
QCR-S1 Paper-tube Curling Machine |
QCR-S1(CX) Paper-tube Curling Machine |
|
Diameter of Paper Tube |
40mm-150mm(360°curling) 8mm-180mm(180°curling) |
40-330mm(360°） |
|
Length of Paper Tube |
30mm-440mm(360°） 30mm-480mm(180°） |
30-400mm(360°） |
|
Working Speed |
1-40pcs/min |
1-40pcs/min |
|
Thickness of Paper Tube |
0.7mm-1.5mm |
0.7mm-1.5mm |
|
Rated Power |
4.2KW |
5.5KW |
|
Air Supply |
0.4MPA-0.6MPA |
0.4MPA-0.6MPA |
|
Voltage |
AC220V,50Hz,1-PH |
AC220V,50Hz,1-PH |
|
Dimension(L×W×H) |
1095×895×1830mm |
1380×960×1830mm |
|
Net Weight |
500kgs |
600kgs |
