Visual Positioning Line / AM-D600E Dual-box Visual Positioning Line

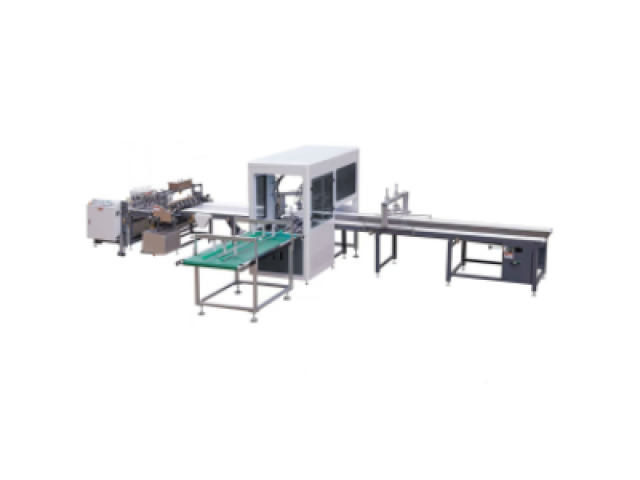

AM-D600E Dual-box Visual Positioning Line

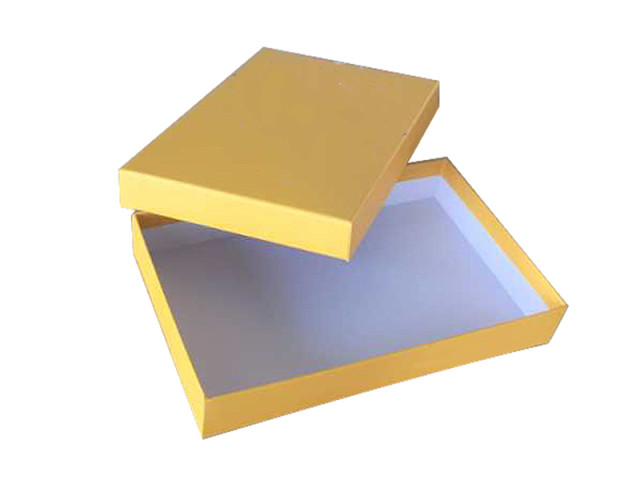

● The Dual-box positioning system that enables the Robotic Arm positions 2pcs boxes(one pc up-lid box and one pc downside box) one time,improving production efficiency;
● The positioning system also adapts the certain irregular products such as hexagonal box,octagonal box,circular box and so on.

Email:admin@amamachine.com

Whatsapp:+86 17758110836

Online Inquiry

Dual-box Visual Positioning System



Main Technical Parameters:

MODEL

D600E Dual-Box Visual Positioning Gluing Line

Max.size of cover paper(W×L)

800mm×1000mm

Min.size of cover paper(W×L)

60mm×165mm

Dual-box positioning

Max.inner box(Dual-box in 2 sizes/time)

420mm×200mm×120mm(L×W×H)

415mm×195mm×120mm(L×W×H)

Min.inner box(Dual-box same size)

80mm×50mm×12mm(L×W×H)

Single-box positioning

Max.inner box

500mm×400mm×120mm(L×W×H)

Min.inner box

50mm×50mm×12mm(L×W×H)

Thickness of paper board

1mm-3mm

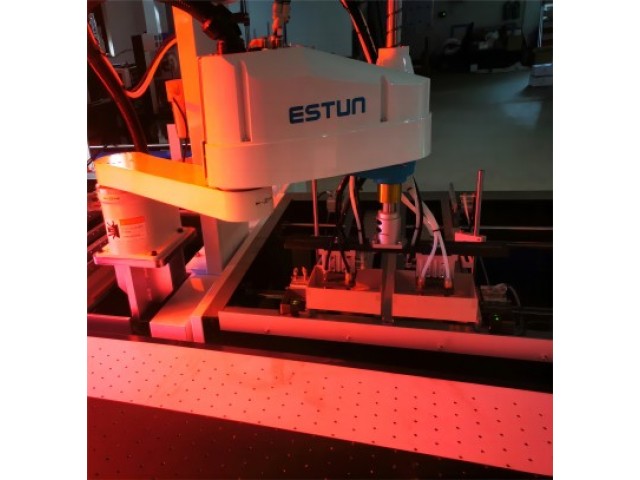

Robotic Arm

700radius/600rasius

Positioning accuracy

0.2mm-0.3mm

SCARA speed

1-14pcs/min.

Air supply

0.6-0.8MPA

Voltage

AC220V /AC380V

Overall Dimension(L×W×H)

8500mm×2500mm×2000mm

Net weight

Around 1900kgs
