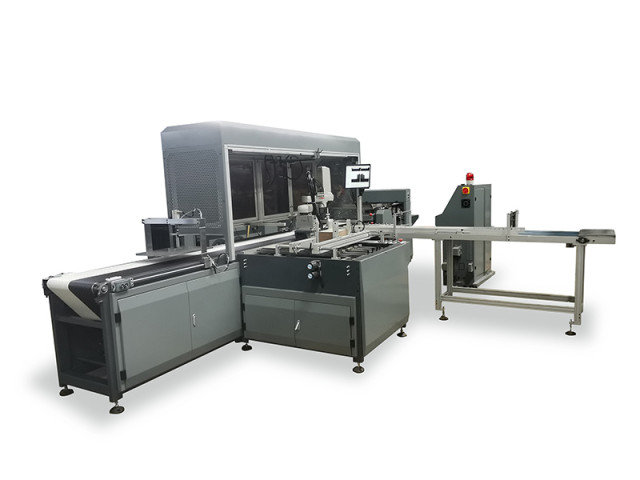

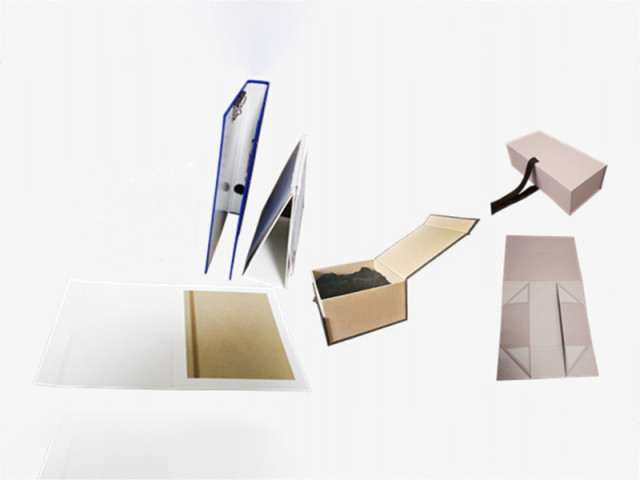

Modular design of the machine,it can be extended and assembled with other machines, such as case maker, rigid box maker,corner pasting machine,wine box maker and so on.

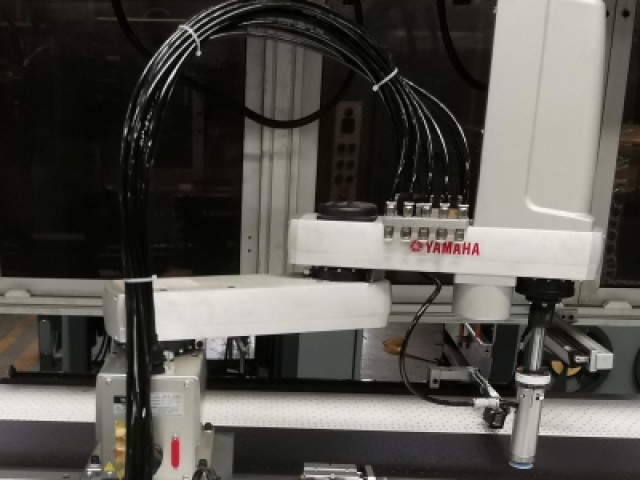

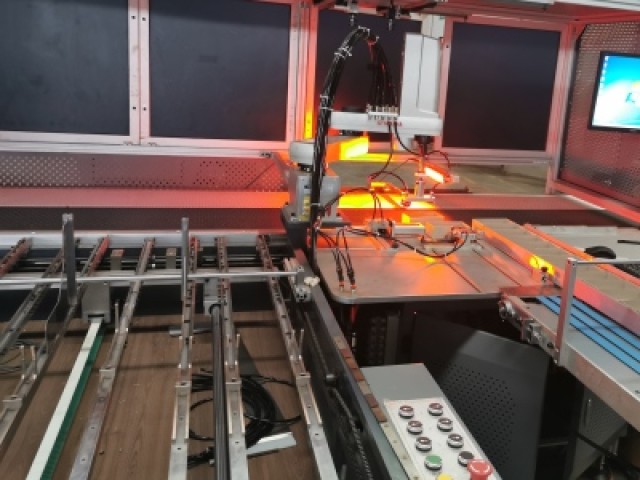

Dual-station visual position system and YAMAHA SCARA to meet high accuracy and multifunctional positioning demands.
Email:admin@amamachine.com
Whatsapp:+86 17758110836
YAMAHA SCARA 30-35pcs/min.POSITIONING SYSTEM
MAIN TECHNICAL PARAMETERS:
|
MODEL |
S16 |
|
Max.paper size(L×W) |
830mm×600mm |
|
Min.paper size(L×W) |
190mm×100mm |
|
Paper thickness |
80-250g/㎡ |
|
Cardboard thickness |
0.8-4mm |
|
Cardboard QTY of case |
1-6pcs/time |
|
Max.inner box size(L×W×H) |
500mm×400mm×150mm |
|
Min.inner box size(L×W×H) |
100mm×60mm×15mm |
|
Max.cardboard size(L×W) |
800mm×460mm |
|
Min.cardboard size(L×W) |
140mm×90mm |
|
YAMAHA SCARA |
RADIUS600,10KGS |
|
Positioning speed |
≤35pcs/min. |
|
Precision |
0.2mm |
|
Air supply |
>0.8Mpa |
|
Voltage |
AC380V,50Hz/Customized |
|
Layout Dimension(L×W×H) |
7.4m×3.5m×2.4m |
|
Net Weight |
3100kgs |
