Visual Positioning Line / AM-D1050 Dual-box&Case Visual Positioning Line

AM-D1050 Dual-box&Case Visual Positioning Line

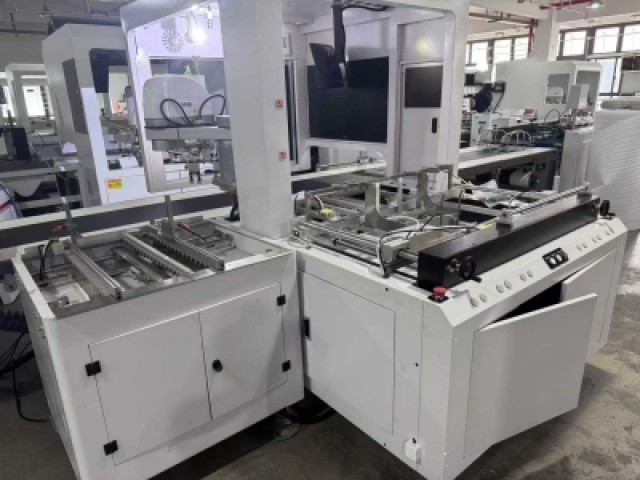

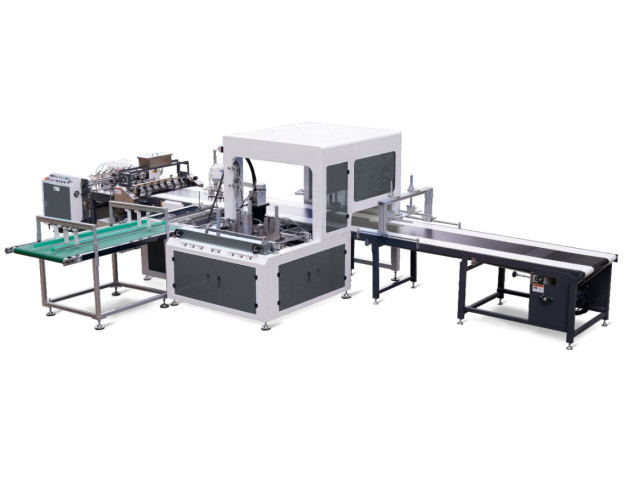

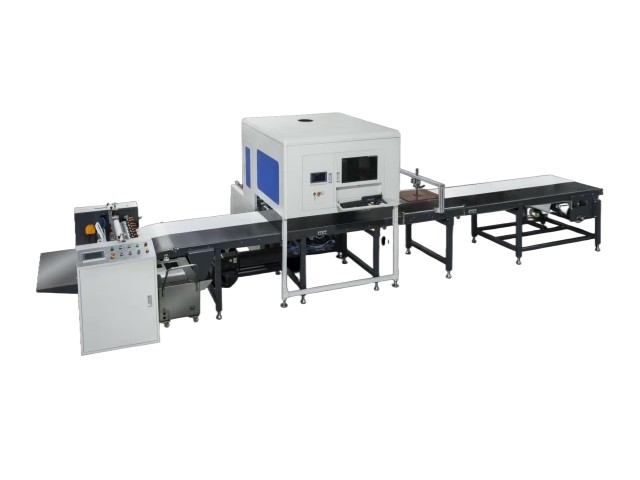

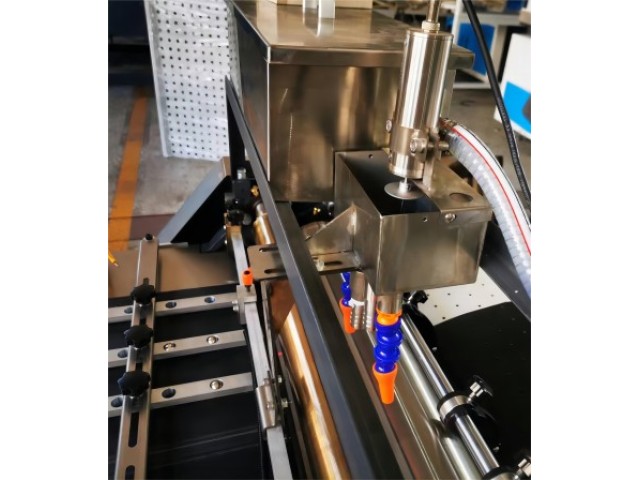

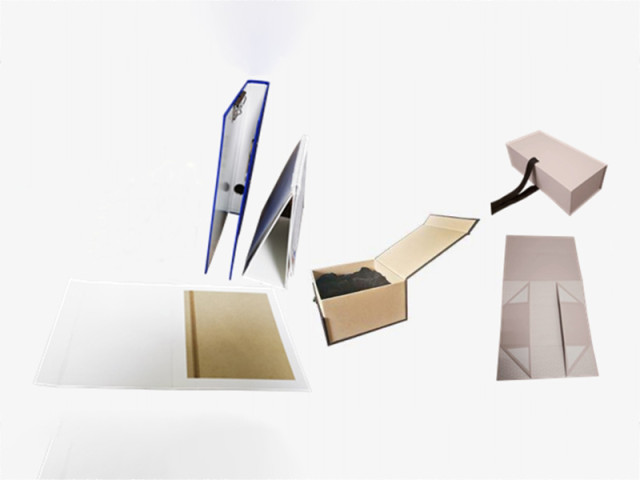

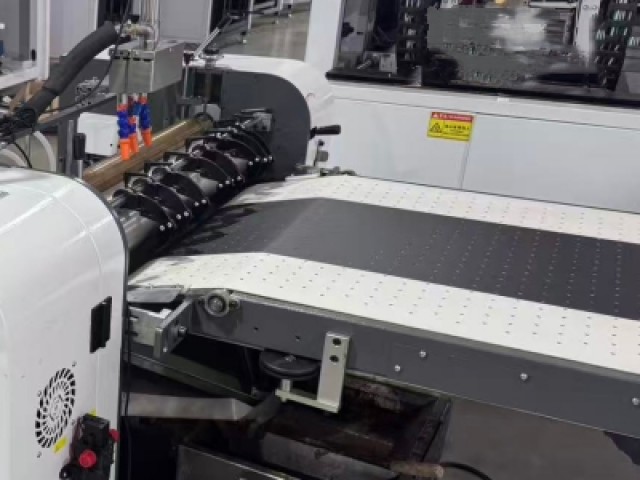

The machine consists of automatic paper feeder, gluing unit,automatic cardboard feeder,Dual-box and Case Visual-position system with Robotic Arm. It adapts to both Dual-box positioning and case positioning and Inner case paper positioning.The advanced visual position system and stable Robotic-arm to achieve intelligent operating and durable machine life at the meantime it is a cost-effective solution for box and case packaging.

Email:admin@amamachine.com

Whatsapp:+86 17758110836

Online Inquiry

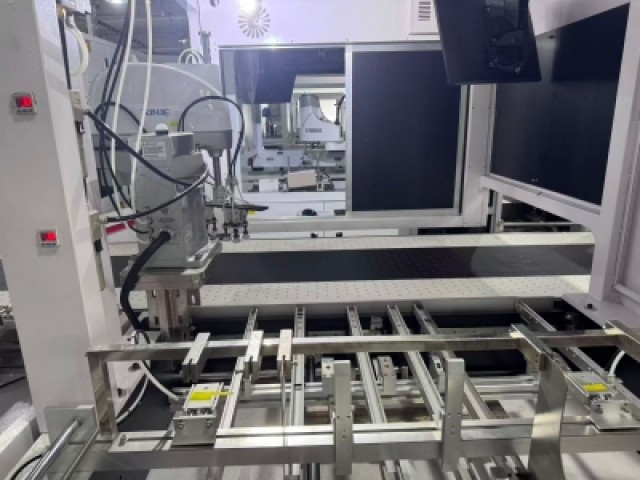

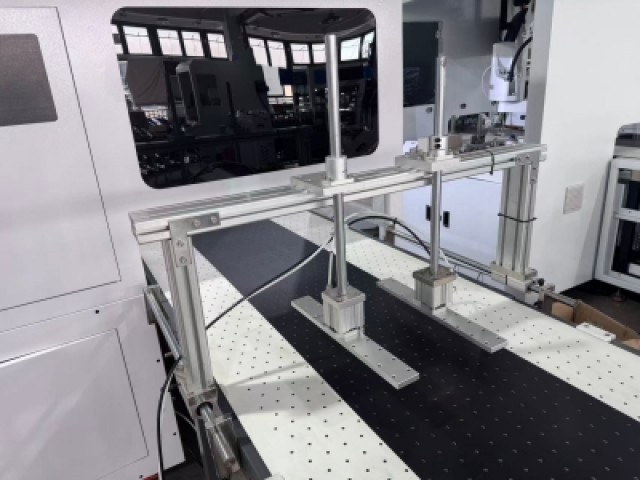

Dual-box&Case Positioning System



Machine Performance:

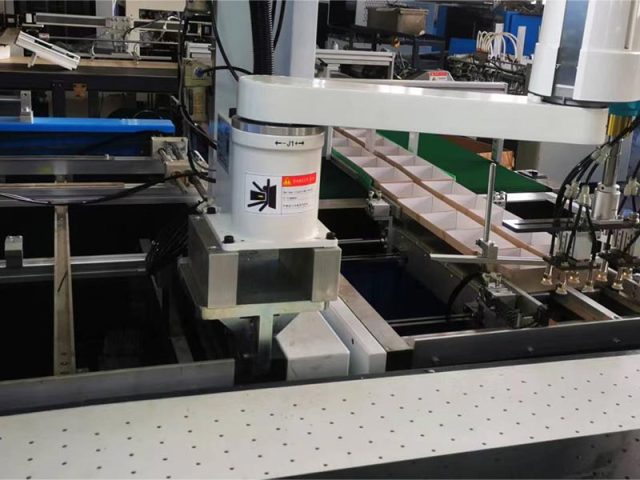

1. The positioning system consists of Box positioning station and Case positioning station,one-button click to switch positioning mode,the Box positioning station applied with Dual-box positioning system that enables the Robotic Arm positions 2pcs boxes(one pc up-lid box and one pc downside box) one time,improving production efficiency,intelligent operating and simple maintenance;

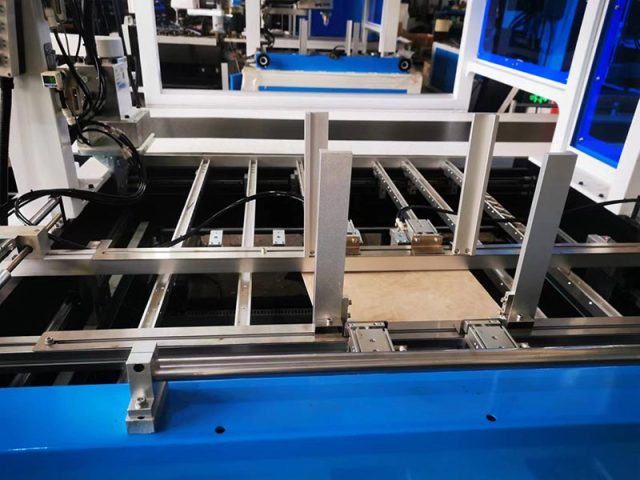

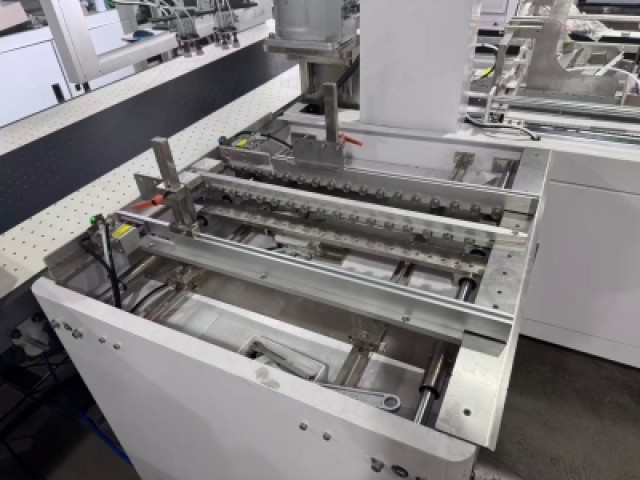

2.The cardboard feeder equipped with Anti-scratch device to prevent cardboard/case from scratching during case lining and iron-disc inserting case feeding/Magnet inserting case feeding;

3.Automatic trouble display and alarm,easy for machine trouble remedies.


Main Technical Parameters:

MODEL

AM-D1050 Dual-Box&Case Visual Positioning Gluing Line

Max.size of cover paper(W×L)

1000mm×1000mm

Min.size of cover paper(W×L)

80mm×165mm

Dual-box positioning

Max.inner box(Dual-box in 2 sizes/time)

420mm×200mm×120mm(L×W×H)

415mm×195mm×120mm(L×W×H)

Min.inner box(Dual-box same size)

80mm×50mm×12mm(L×W×H)

Single-box positioning

Max.inner box

500mm×400mm×120mm(L×W×H)

Min.inner box

50mm×50mm×12mm(L×W×H)

Case positioning station



Max.size of paper board

460mm×960mm(W×L)

Min.size of paper board

20mm×30mm(W×L)

Thickness of paper board

1mm-4mm

Robotic Arm

700radius/600radius

Positioning accuracy

0.2mm-0.3mm

SCARA speed

1-15pcs/min.

Air supply

0.6-0.8MPA

Voltage

AC220V /AC380V

Layout Dimension(L×W×H)

8500mm×2500mm×2000mm

Net weight

Around 2700kgs
