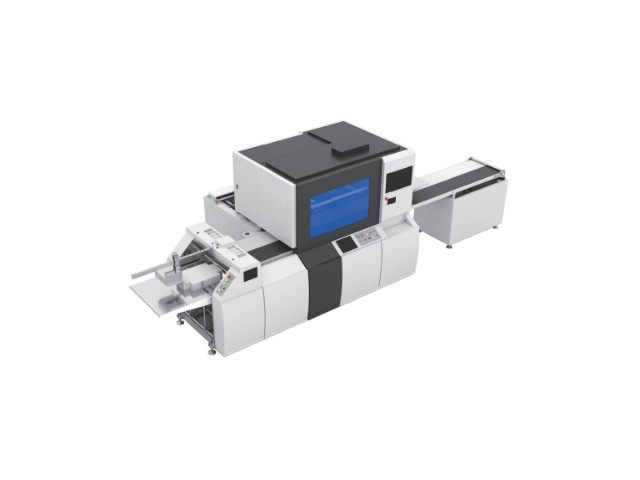

1060YT Visual Positioning Line

Email:admin@amamachine.com

Whatsapp:+86 17758110836

Online Inquiry


MAIN TECHNICAL PARAMETERS:

MODEL

1060YT

Max.paper size(L×W)

1040mm×620mm

Min.paper size(L×W)

130mm×70mm

Paper thickness

100-250g/㎡

Cardboard thickness

1-3mm

Max.Box (L×W)

500mm×400mm

Min.Box (L×W)

100mm×50mm
Box Height 15mm-150mm

Max Cover(L×W)

950mm×500mm

Min.Cover(L×W)

150mm×100mm

Max.Cardboard QTY.

5pcs

Min.spine width

20mm/8mm

Positioning speed

≤30pcs/min.

Motor Power

7kw

Heating Power 10kw

Air supply

0.6Mpa,10L/min.

Voltage

AC380V,50Hz

Dimension(L×W×H)

6.5m×2.5m×2.02m

Net Weight 2000KG
