Compact machine structure, equipped with single-disk electro-magnetic clutch, sensitive, convenient and reliable.
Single-sheet cutting, continuous cutting and Delay-time of cutting is adjustable.
Main body is made of high quality integrated cast iron, with high strength and rigidity.
Email:admin@amamachine.com
Whatsapp:+86 17758110836
Features:
1. Compact machine structure, equipped with single-disk electro-magnetic clutch, sensitive, convenient and reliable.
2. Single-sheet cutting, continuous cutting and Delay-time of cutting is adjustable.
3. Main body is made of high quality integrated cast iron, with high strength and rigidity.
4. Suitable for cutting paper board, corrugated paper.
5. Automatic oil pump.
6. Infrared safety.
Hot-foilStamping System

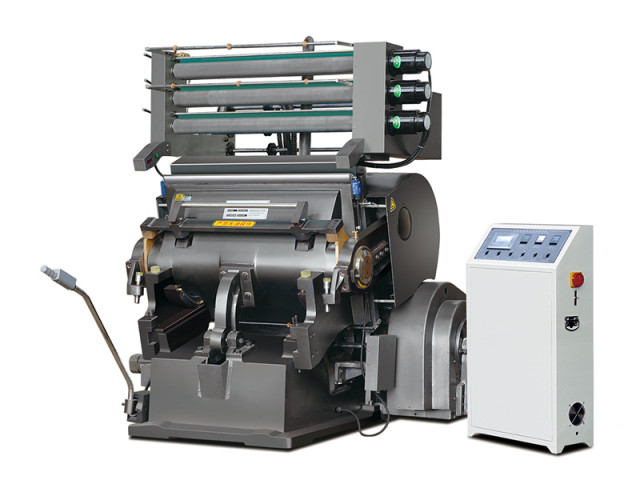

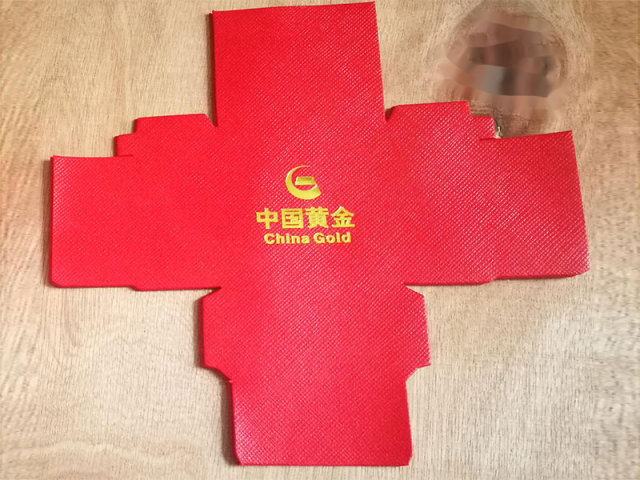

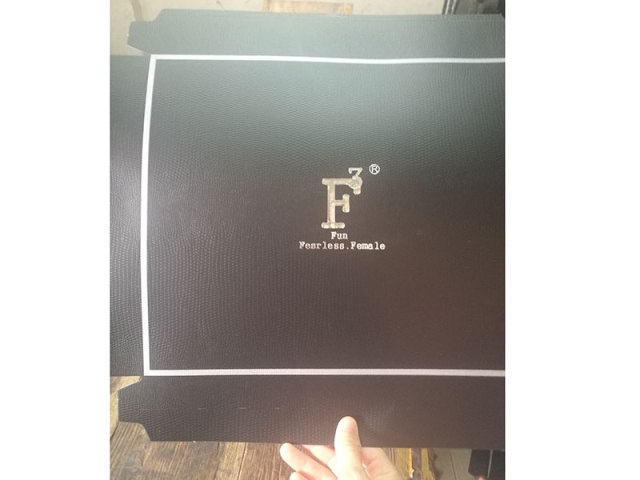

1. TYMK series machine has hot foil stamping, die cutting and embossing functions.
2. 3 set of PLC controlled step motor, easy to adjust and have high accuracy.
3. Stepper motor has large torque and can set the requested size, make the job accurate and reduce waste.
4. Separate gear motor for unwinding and rewinding, makes the unwinding and rewinding more convenient.
5. Aluminum alloy anilox rollers after special process treatment, has the feature of light and long durability.
6. Optional honeycomb plate makes change over more convenient and easy for make-ready.
7. 3 temperature zone, stainless steel heaters make sure the fast heat up, saving power, and increase the hot foil stamping quality.
Main Technical Parameters
Model |
TYMK-750 |
TYMK-1100 |
TYMK-1200 |
Max-size of Die-cutting |
750×520mm |
1100×800mm |
1200×820mm |
Max-size of Foil Stamping |
740×510mm |
1100×800mm |
1200×820mm |
MachineDimension |
1800×1350×1850mm |
2100×2100×2150mm |
2150×2250×2300mm |
Speed |
26±2/Min |
21±2/Min |
21±2/Min |
FoilGroups |
2 |
3 |
3 |
Heating Area |
2 |
3 |
3 |
Foil Length |
520mm |
800mm |
820mm |
Weight |
2200kgs |
4700kgs |
5000kgs |
Motor Power |
2.2KW-6H |
4KW-6H |
4KW-6H |
TotalPower |
10.2KW |
20.5KW |
20.5KW |
