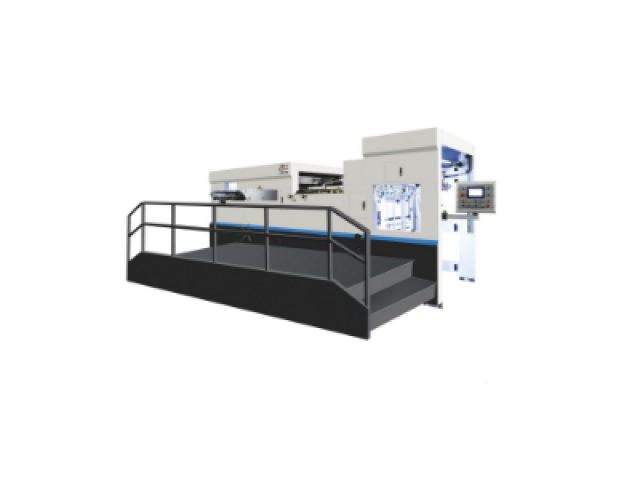

A-1300E Automatic Die Cutter

Complete design, accurate installation, high stability, high security, low noise.
High strength gripper, advanced gripper device can apply all kinds of corrugated paper. Positioning device ensure the cutting precision.

Email:admin@amamachine.com

Whatsapp:+86 17758110836

Online Inquiry

Features

1. Complete design, accurate installation, high stability, high security, low noise.

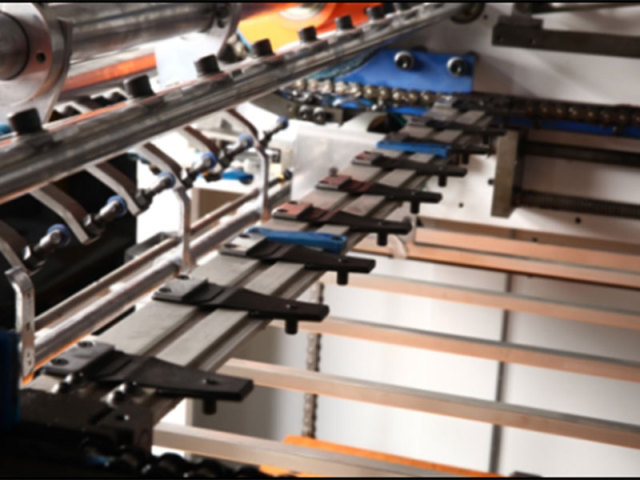

2. High strength gripper, advanced gripper device can apply all kinds of corrugated paper. Positioning device ensure the cutting precision.

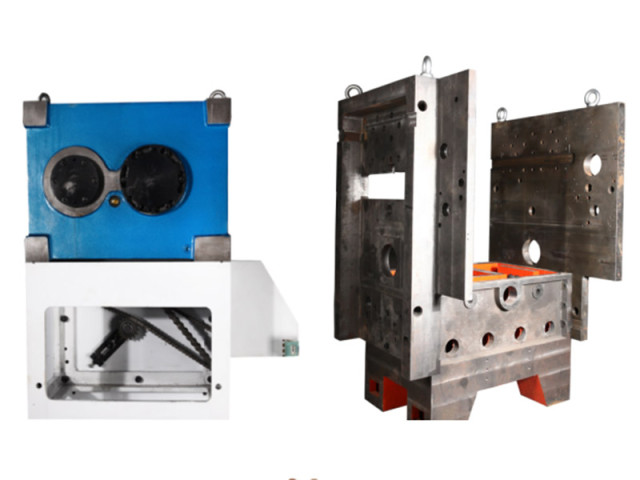

3. Worm, worm gear and special designed crankshaft connecting device is linked by bearing bush, reduce the movement clearance, avoid impact between worm and worm gear. Running steadily, high cutting pressure. It has a function of high point pressure hold. Worm gear is made of high wear-resisting aluminum bronze, it has long durability.

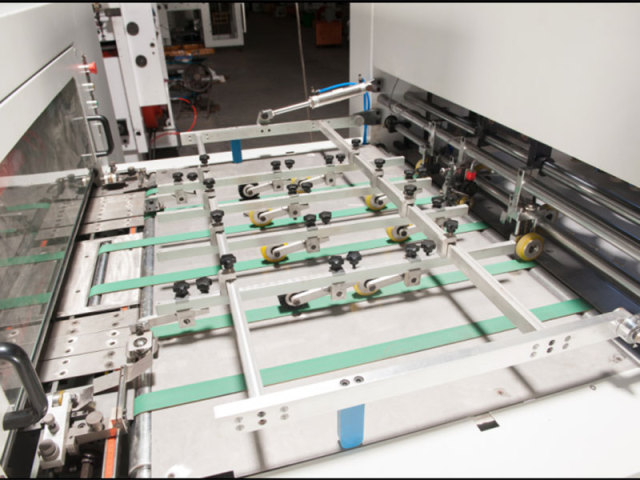

4. Non-stop feeding and Delivery device can shorten the auxiliary time, improve the efficiency.

5. Adopt advance cam mechanism, pressure adjusting device, pneumatic die locking, pneumatic sampling, overload protection device. Adopt imported high precision chain, imported pneumatic clutch.

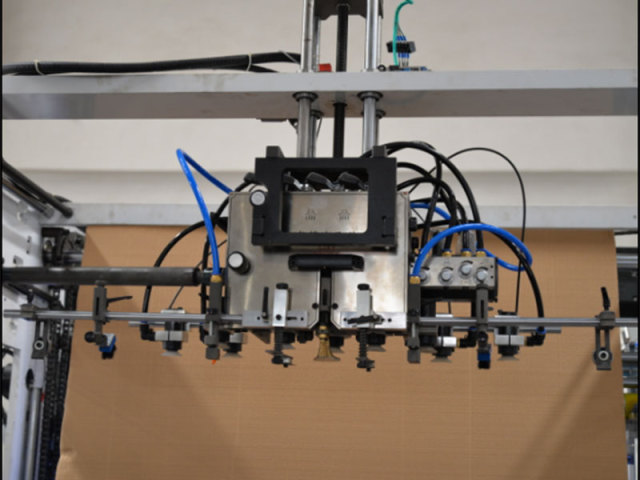

6. Adopt manual-automatic feeding method (automatic feeder and manual), apply secondary positioning device, reduce the requirement about paper. Keep worker’s hand far away from the cutting section, guarantee the safety.

7. Pneumatic die locking mechanism makes changing of die, make-ready more convenient, die frame fix firmer, more accurate, time saving.

8. Programmable controller and man-machine interface. Digital display the working speed, processing umber, total running time. The display of trouble makes trouble shooting more convenient. Automatic control and real time monitor feeding, cutting and Delivery parts, cooperate with the safety device in each part. Make the operation more reliable, machine adjustment and trouble shooting more convenient.

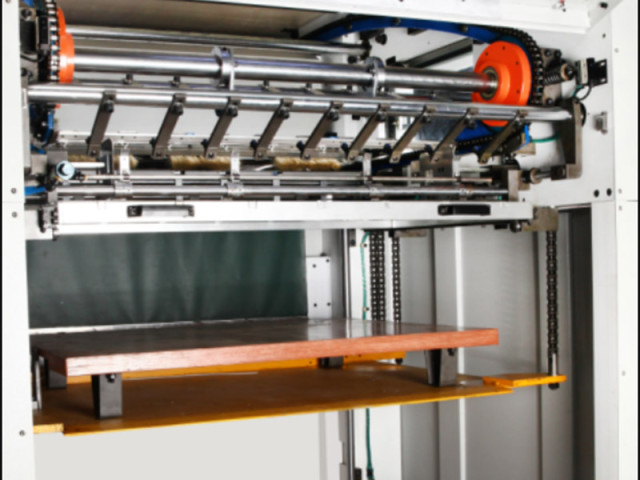

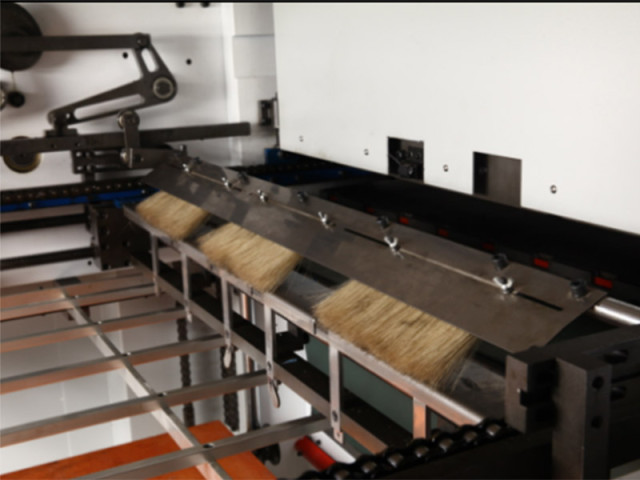

9. Automatic paper Delivery, arranging device makes Delivery more convenient and neat.

10. Floating function of cutting plate make inserting and pulling out the plate more convenient.

11. Double sheet, crooked sheet, emptysheet photo-electronicdetecting device, ensure the paper in the right position, reduce waste.

12. Electronic control modular design, adopt imported electronic components, ensure the accuracy and reliability.

13. Cycling cooling oil supply system ensure the movement parts get adequately lubricated to ensure the durability.

14. Imported pneumatic clutch, joint and withdraw conveniently, with small brake angle, it can transmit high torque high torque.

15. Front and rear cutting pressure can be adjust separately, manual wheel makes it convenient.

16. Adopt fixed quantity at fixed timing oil supply system, ensure the movement parts get adequately lubricated to let better durability.

17. High precision interval mechanism, high cutting precision, running steadily.


MainTechnicalParameters

Model

A-1300E

Max paper size

1320×980mm

Min paper size

320×470mm

Max cutting size

1300×970mm

Die frame inner size

1330×992mm

Cutting plate size

1320×982mm

Cutting precision

≤±0.2mm

Max cutting pressure

250N/cmPP2

Max cutting speed

5000s/h

Pre-stacking height

1400mm

Delivery stack height

1200mm

Application

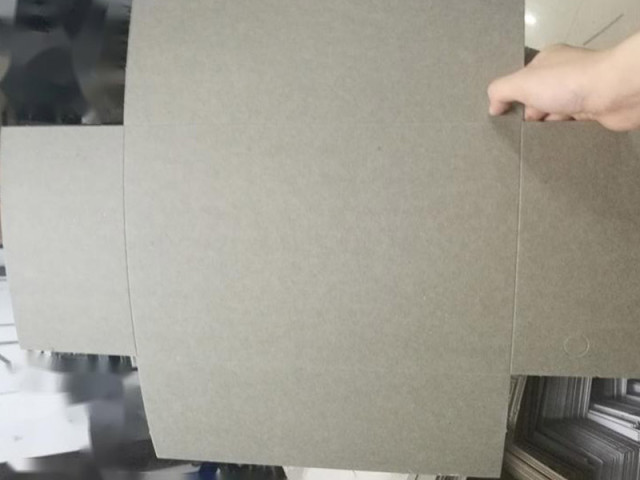

Cardboard:0.25~2mm

Corrugated paper:<8mm

Corrugated paper

<8mm

Main motor power

11KW

Total power

13.5KW

Dimension

6300(+1800)×2350(+1900)×2250mm

weight

17T
