Die Cutting&Stamping Machines / ML Die Cutting Creasing Machine

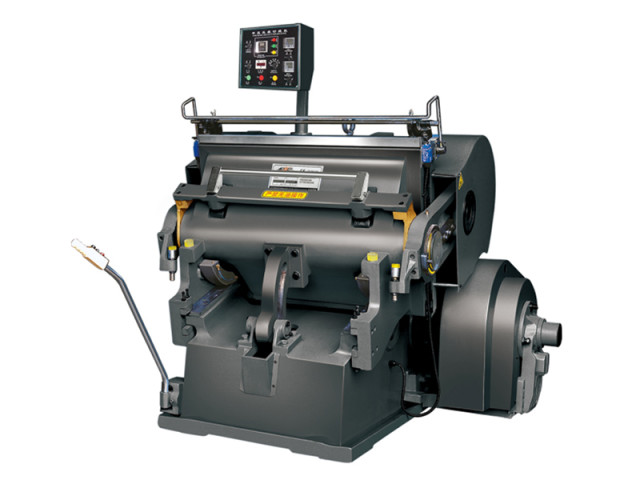

ML Die Cutting Creasing Machine

Compactmachinestructure, equipped with single-disk electro-magnetic clutch, sensitive, convenient and reliable.
The machine equipped with 3 safety-devices in the 3 positions and 3 cutting ways aresingle sheet cutting, continuous cutting anddelay cutting,ensuring safety for machine users.

Email:admin@amamachine.com

Whatsapp:+86 17758110836

Online Inquiry

Features:

1. Compactmachinestructure, equipped with single-disk electro-magnetic clutch, sensitive, convenient and reliable;

2. The machine equipped with 3 safety-devices in the 3 positions and 3 cutting ways aresingle sheet cutting, continuous cutting anddelay cutting,ensuring safety for machine users;

3. Main body is made of high quality integrated cast iron, with high strength and rigidity;

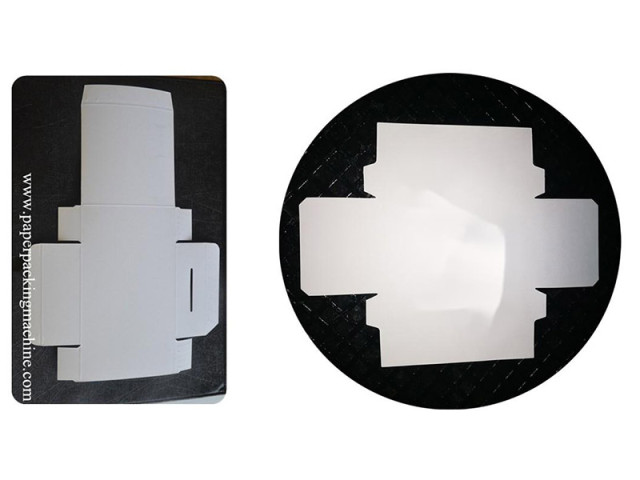

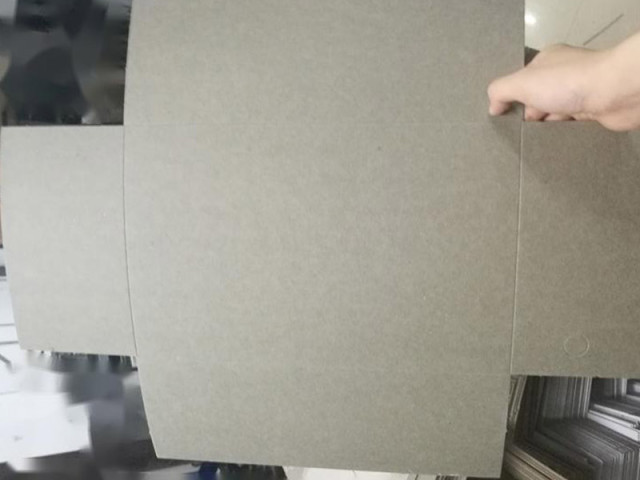

4. Applicable to cuttingpaper,cardboard, corrugatedboard and so on.


Main Technical Parameters

Model

ML-750

ML-930

ML-1100

ML-1200

ML-1300

Frame inner size

750mm×520mm

930×670mm

1100×800mm

1200×820mm

1300×920mm

MachineDimension

(L×W×H)

1350×1500×1600mm

1650×1850×1650mm

1950×2100×1750mm

2000×2100×1750mm

2350×2100×1700mm

Speed

26±2/Min

23±2/Min

20±2/Min

20±2/Min

16±2/Min

Rule length

≦18m

≦25m

<35m

<37m

≦45m

Weight

2000kg

3000Kg

4500Kg

4800Kg

6200kg

Motor power

2.2KW-6H

4KW-4H

4KW-6H

4KW-6H

5.5KW-6H
