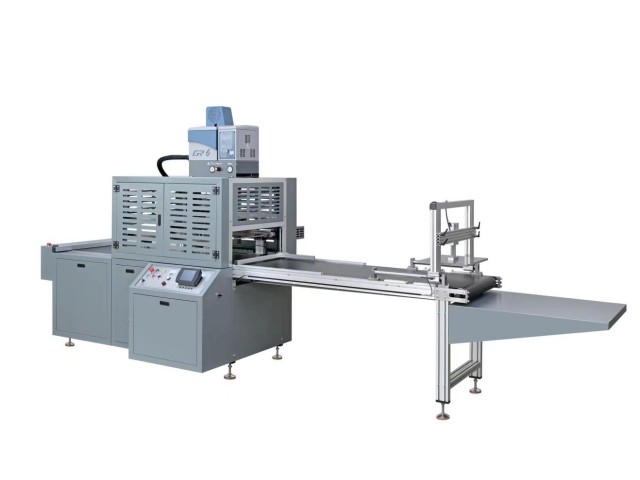

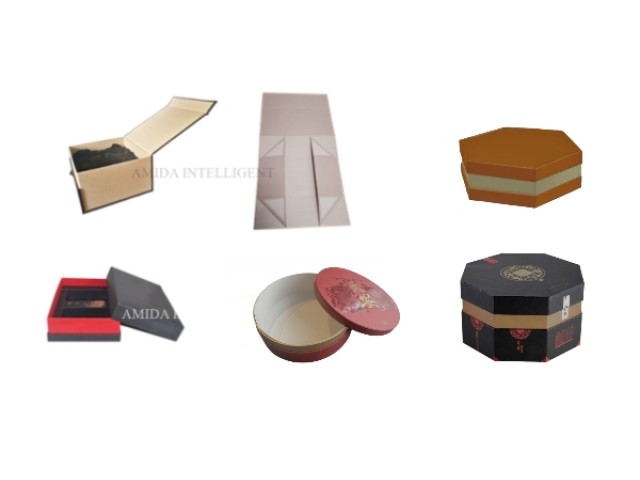

600B Box Assembly Machine is ideal machinery which applicable to making Book type box,Set-up box,collapsible box,magnet closure box and so on. The machine is automatic glue-spraying for paper board/inner box,manually placing box on paper board/outer box and automatic box-pressing for assembling inner box on paper board/outer box.
Email:admin@amamachine.com
Whatsapp:+86 17758110836
Description:
The machine adapt both Plane glue-spraying and Rotating glue-spraying,equipped with automatic hot-melt glue heating system,Gluing patterns can be designed flexibly,PLC Control system with Touch screen operating, intelligent and simple operating.Cold glue spraying system is optional.

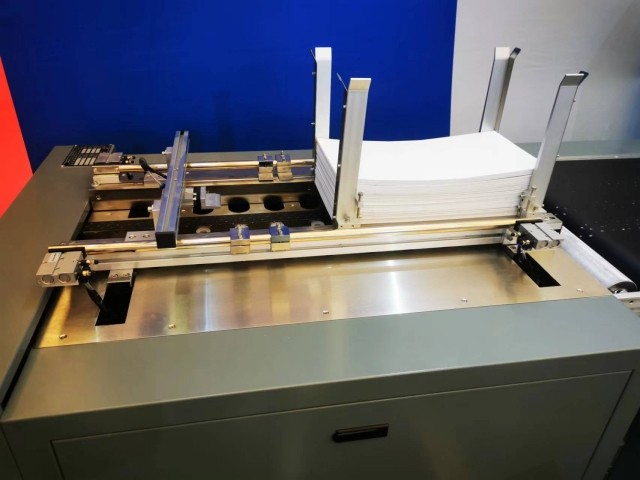

*Automatic Case/Box Feeder Station is optional.
Features:
Gluing-spraying patterns able to be designed flexibly,the modes of glue-spraying including case spraying,rectangle box spraying,round box spraying,octagonal box spraying and hexagonal box spraying.
Main Technical Parameters
|
MODEL |
GR-600B Glue-spraying Machine |
|
Paper board Size |
Max.650mm×450mm |
|
Min.90mm×50mm |
|
|
Box Size |
Max.450mm×450mm×150mm |
|
Min.50mm×50mm×10mm |
|
|
Glue-spraying speed |
5-18pcs/min |
|
Glue working Temperature |
170-185℃ |
|
Total Power |
5kw |
|
Voltage |
AC380V,50Hz,3-PH 4-LINE |
|
Overall Machine Size(L×W×H) |
4560mm×1440mm×2050mm |
|
Net Weight |
500kgs |
