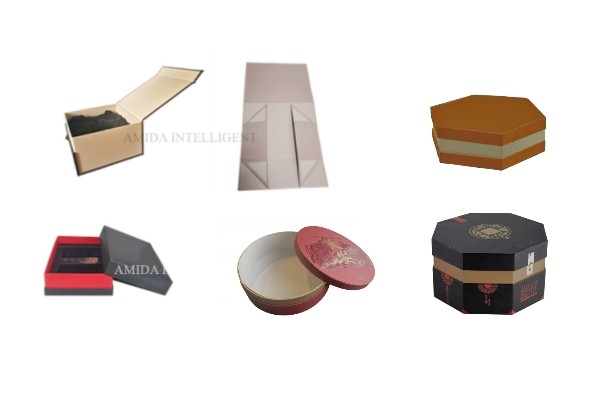

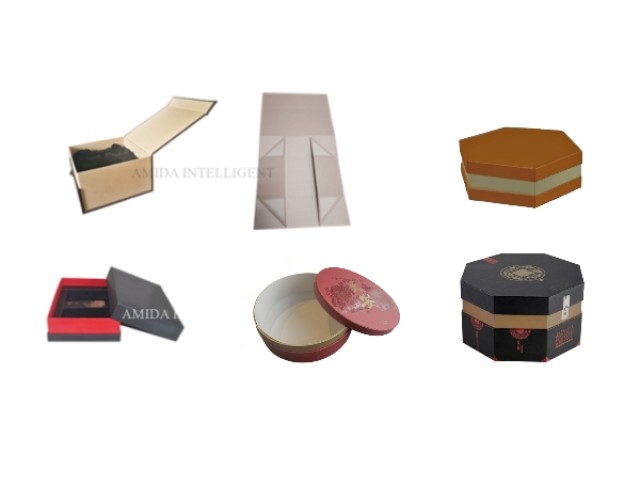

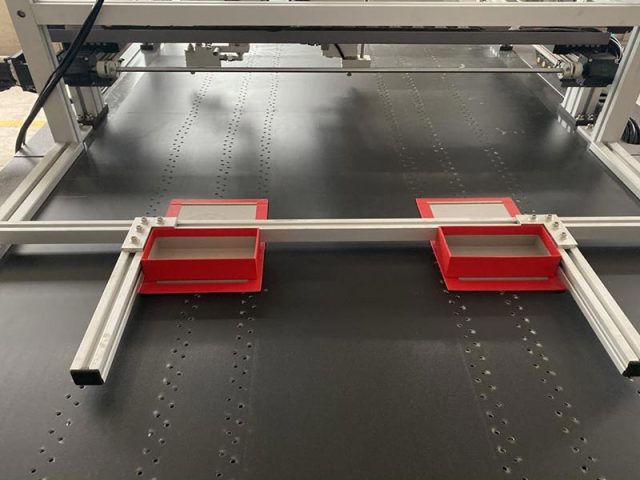

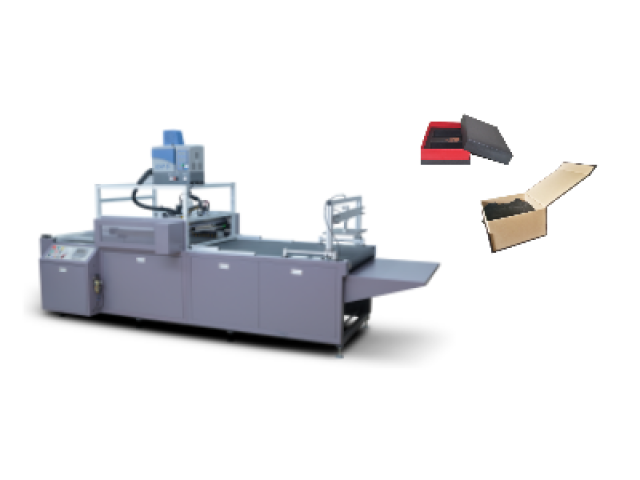

1000B Box Assembly Machine is ideal machinery which applicable to making Book type box,Set-up box,collapsible box,magnet closure box and so on. The machine is automatic paper board gluing,manually placing box on paper-board and automatic box pressing for assembling inner box on paper-board.

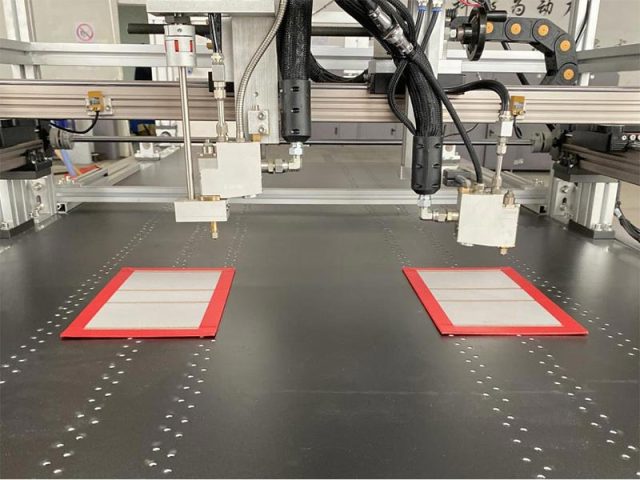

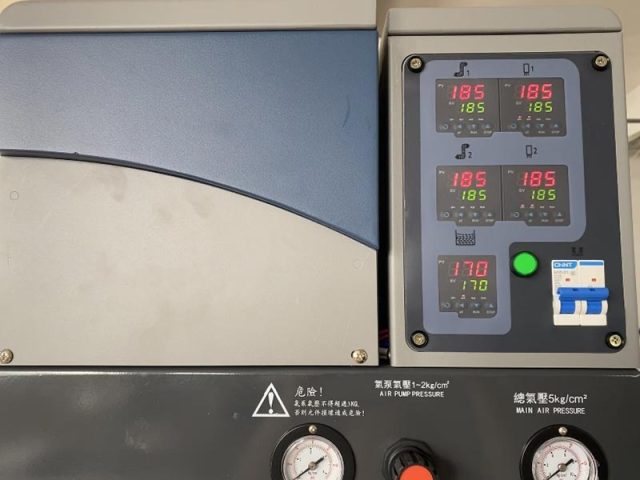

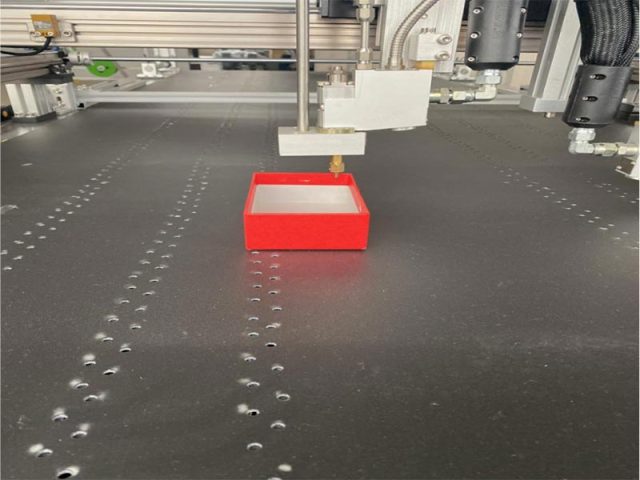

The machine adapt both Plane glue-spraying for case and Rotating glue-spraying for inner box,equipped with automatic glue heating system,Gluing patterns can be designed flexibly,PLC Control system with Touch screen operating, intelligent and simple operating.
Email:admin@amamachine.com
Whatsapp:+86 17758110836
Features:
Gluing-spraying patterns able to be designed flexibly,the modes of glue-spraying including case spraying,rectangle box spraying,round box spraying,octagonal box spraying and hexagonal box spraying.
Main Technical Parameters：
|
MODEL |
1000B BOX ASSEMBLY MACHINE |
| Single-station |
|
|
Max.size of Cardboard |
950mm×550mm |
|
Min.size of Cardboard |
90mm×50mm |
|
Max.size of Box(L×W×H) |
600mm×550mm×150mm |
|
Min.size of Box(L×W×H) |
50mm×50mm×10mm |
| Max.area of Glue-spraying |
600mm×400mm |
|
Dual-station |
|
|
Max.size of Cardboard |
950mm×400mm |
|
Min.size of Cardboard |
90mm×50mm |
|
Max.size of Box(L×W×H) |
600mm×400mm×150mm |
|
Min.size of Box(L×W×H) |
50mm×50mm×10mm |
|
Max.area of Glue-spraying |
600mm×550mm |
|
Working Speed |
1-15pcs/min(2-30pcs/min) |
|
Power |
5.5KW |
|
Air supply |
0.75Mpa |
|
Voltage |
AC380V,50Hz,3-PH,4-LINE |
|
Machine Dimension(L×W×H) |
3700mm×1600mm×19000mm |
|
Net Weight |
850kgs |
