Description:
The machine adapt both Plane glue-spraying and Rotating glue-spraying,equipped with automatic hot-melt glue heating system,Gluing patterns can be designed flexibly,PLC Control system with Touch screen operating, intelligent and simple operating.Cold glue spraying system is optional.
*Automatic Case/Box Feeder Station is optional.
Features:

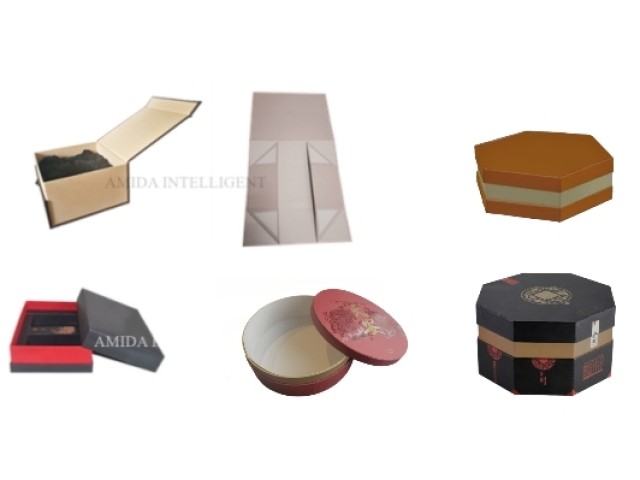

Gluing-spraying patterns able to be designed flexibly,the modes of glue-spraying including case spraying,rectangle box spraying,round box spraying,octagonal box spraying and hexagonal box spraying.
Main Technical Parameters
|
MODEL |

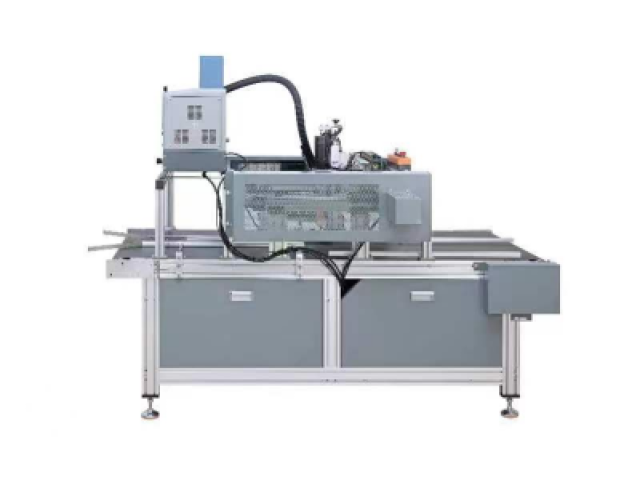

500B Hot-melt Glue-spraying Machine |
|
Paper-board Size |
Max.450mm×400mm |
|
Min.50mm×50mm |
|
|
Box Size |
Max.450mm×400mm×150mm |
|
Min.50mm×50mm×10mm |
|
|
Glue-spraying speed |
5-18pcs/min |
|
Glue working Temperature |
170-185℃ |
|
Power |
4kw |
|
Voltage |
AC220V,50Hz, |
|
Overall Machine Size(L×W×H) |
2070mm×1320mm×1600mm |
|
Net Weight |
150kgs |
