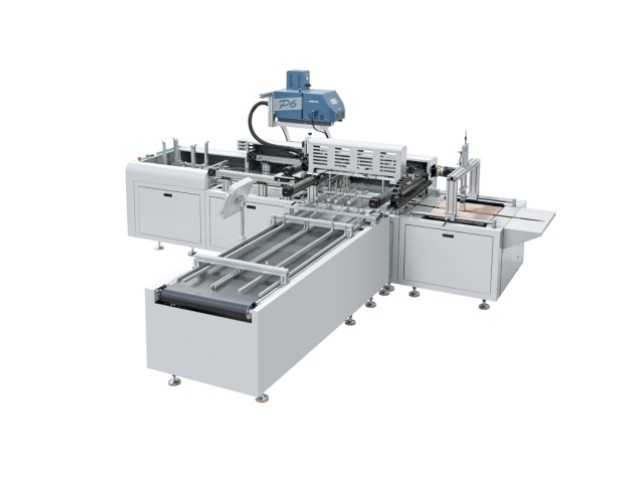

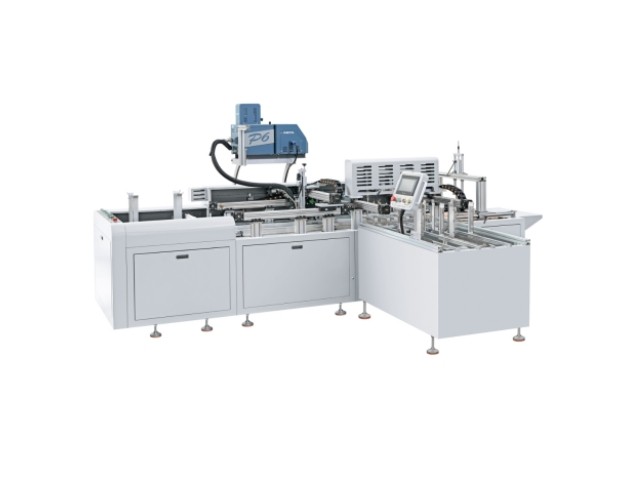

580ZA/720ZA Automatic Box Assembly Machine integrates the functions in one line including automatic case feeding,automatic glue-spraying,automatically inner-box assembled on case/inner-box put into outer-box or automatic case on case/Foam,EVA or another Inner Trays on Box or Case,automatic Dual box-side Flipping-plate and automatic box bubble-pressing.
Email:admin@amamachine.com
Whatsapp:+86 17758110836
Machine characteristics:

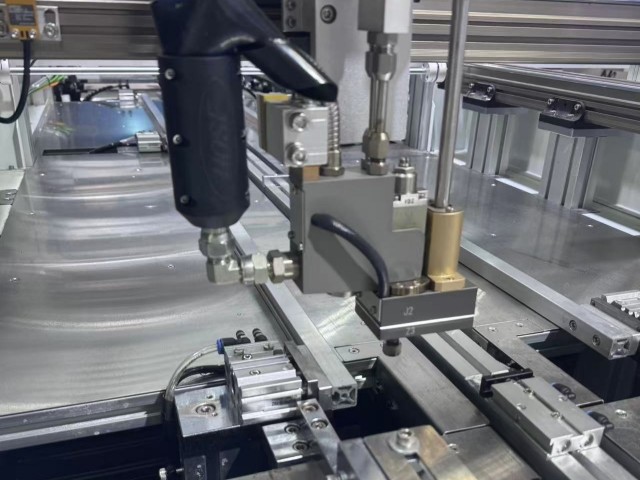

The machine equipped with automatic glue heating system,Gluing patterns can be designed flexibly,PLC Control system with Touch screen operating, intelligent and simple operating and durable working-life.
Cold-glue spraying is optional.
Features:

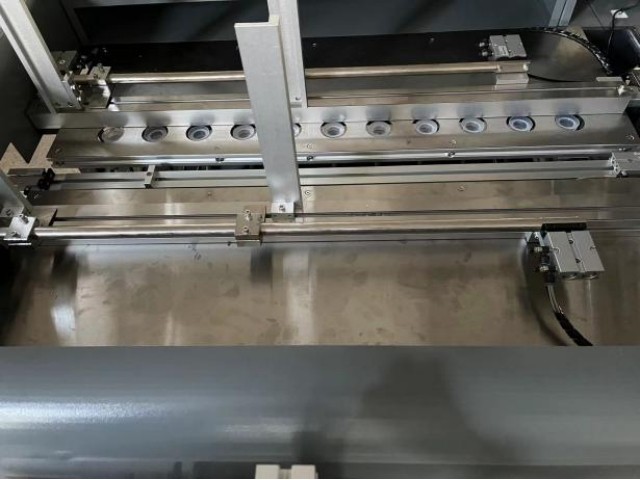

1.The unique Downward-suction feeding system to achieve anti-scratch for laminated case,touch paper,copper-paper pasted cover,anti-fingerprint paper and other high-grade products;
2.The Automatic box/case delivering system is capable to automatically feed rigid box,frame box and various kinds of products,such as EVA sheet,Foam sheet etc.
Especially suitable for mass production for Eye-shadow box,cosmetics box and Inner lining boxes.

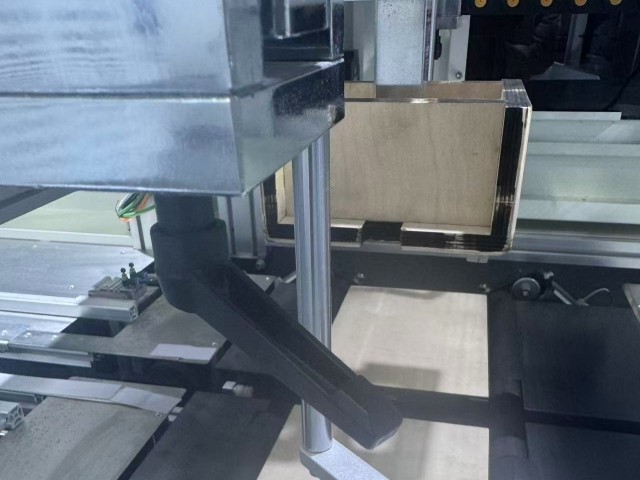

3.Automatic Dual Box-side Flipping plates design to overcome the cracking problem of Hot-melt glue caused by the box and the case not being pressing tightly.
Main Technical Parameters：
|
MODEL |
580ZA Box Assembly Machine |
720ZA Box Assembly Machine |
|
Case Size |
Max.580mm×380mm |
Max.720mm×380mm |
|
Min.90mm×50mm |
Min.90mm×50mm |
|
|
Inner-Box size(L×W×H) |
Max.380×380×80mm |
Max.380×380×80mm |
|
Min.50×50×5mm |
Min.50×50×5mm |
|
|
Max.Glue-spraying area |
480mm×380mm |
480mm×380mm |
|
Min.Glue-spraying area |
50mm×50mm |
50mm×50mm |
|
Working Speed |
1-28pcs/min |
1-28pcs/min |
|
Air Pressure |
0.7MPA |
0.7MPA |
|
Power |
8kw |
8kw |
|
Voltage |
AC380V,50Hz,3-PH |
AC380V,50Hz,3-PH |
|
Machine Dimension(L×W×H) |
3900mm×3300mm×1700mm |
4200mm×3300mm×1700mm |
|
Net Weight |
780kgs |
800kgs |
