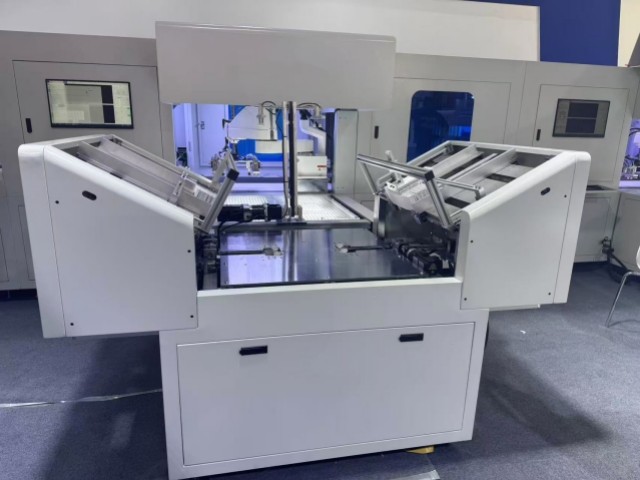

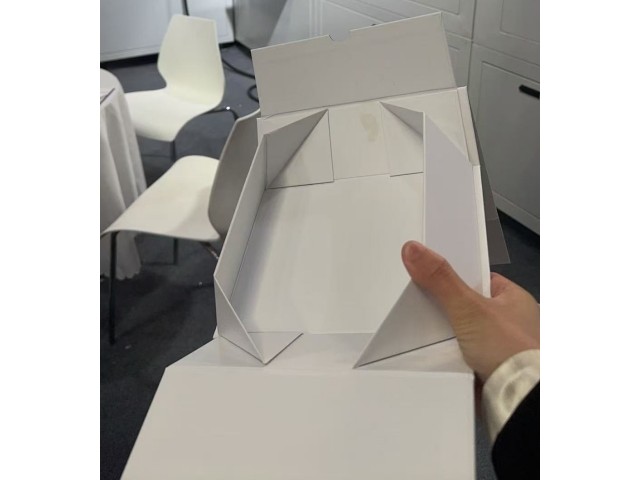

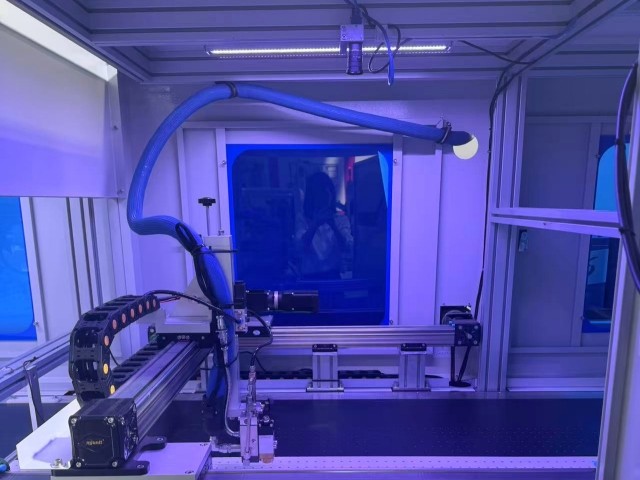

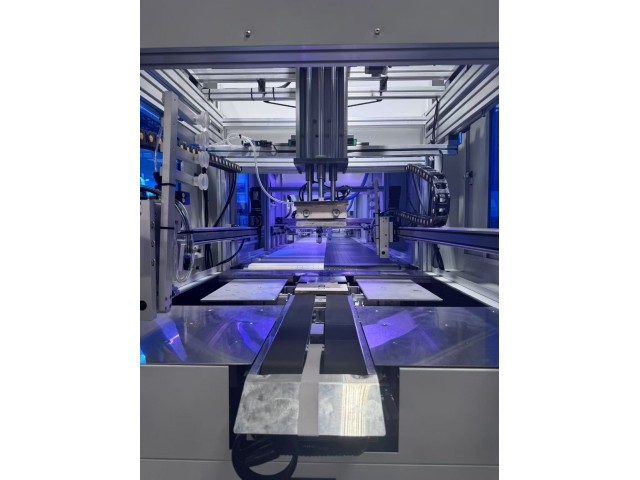

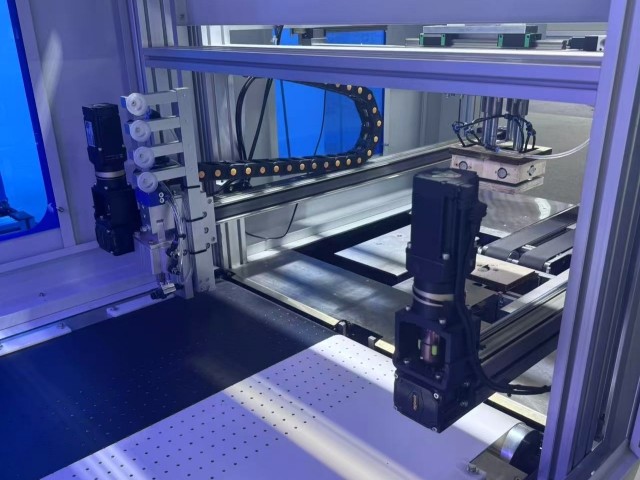

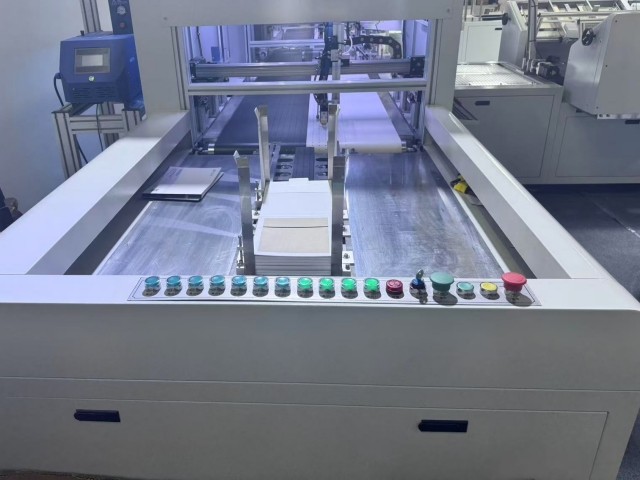

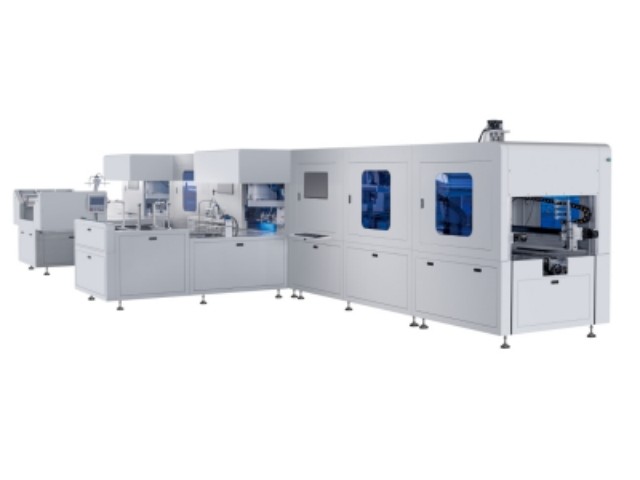

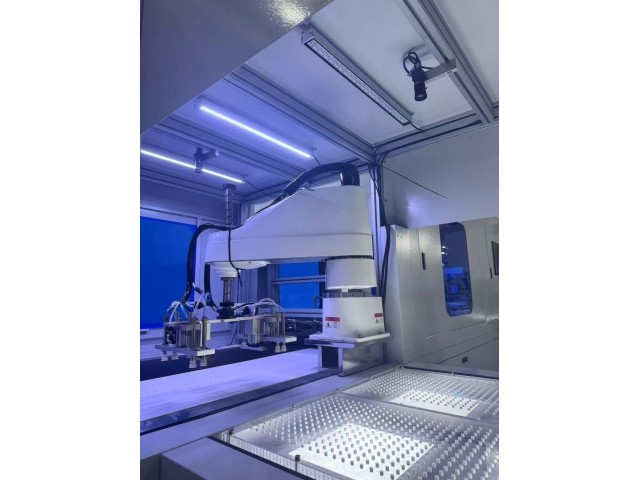

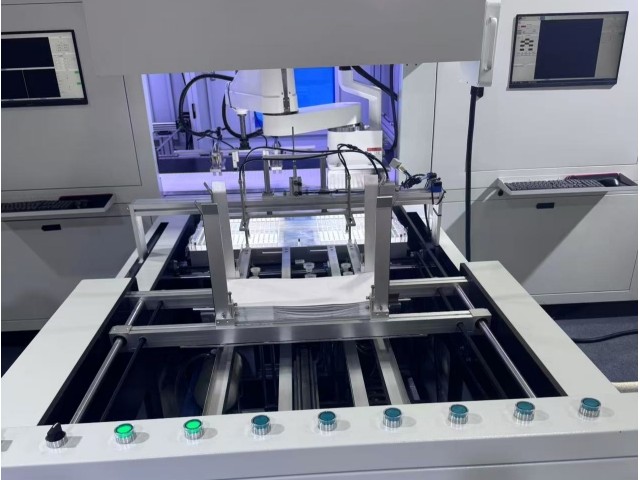

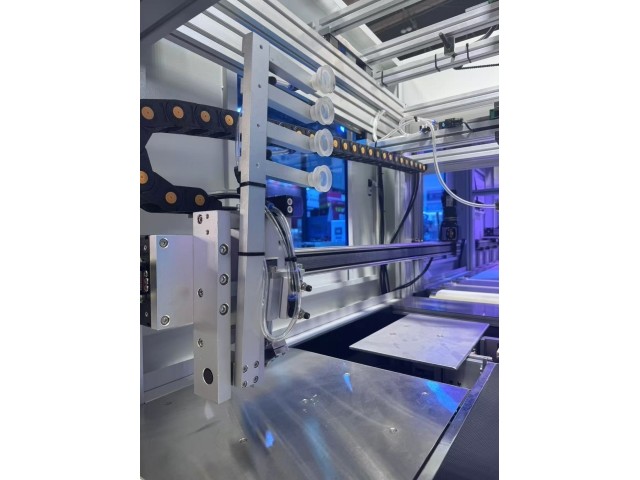

GR-1200ZA(7-link) Automatic collapsible box assembling machine integrates automatic case feeding,automatic Visual glue-spraying system,automatic wing-assembling,automatic inner-case assembling and automatic box flipping in line.It is ideal machine to make Foldable gift-box,luxury folding-box,cosmetics folding box and so on.
Email:admin@amamachine.com
Whatsapp:+86 17758110836
Main Technical Parameters：
|
MODEL |
GR-1200ZA(7-Link) Collapsible Box Assembling Machine |
|
Case Size |
Max.1000mm×450mm |
|
Min.220mm×180mm |
|
|
Wing size(L×W) |
Max.700×150mm |
|
Min.150×40mm |
|
|
Max.Forming-box Size |
450mm×450mm×150mm |
|
Min.Forming-box Size |
180mm×80mm×40mm |
|
Working Speed |
1-15pcs/min |
|
Air Pressure |
0.7MPA |
| Power |
28kw |
|
Voltage |
AC380V,50Hz,3-P 4-L |
|
Machine Size(L*W*H) |
11500mm×4350mm×2100mm |
|
Net Weight |
3000kg |
