Shrink-film Wrapping Machine / AMQ-PDZF Heat-shrink Corner-sealing Machine

AMQ-PDZF Heat-shrink Corner-sealing Machine

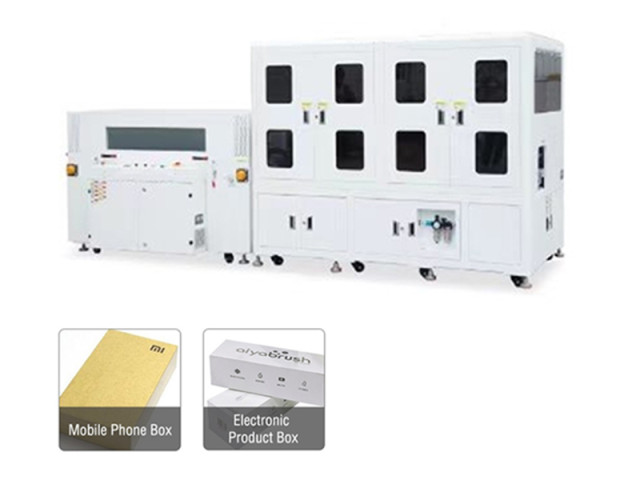

AMQ-PDZF series Heat-shrinking corner-sealing machine used for box shrink wrapping,automatic POF film bag forming,automatic box bagging,automatic 4-corner sealing,automatic heat-shrinking and automatic box conveying.

Email:admin@amamachine.com

Whatsapp:+86 17758110836

Online Inquiry

Machine Characteristics:

1. AMQ-PDZF series Heat-shrinking corner-sealing machine used for box shrink wrapping,automatic POF film bag forming,automatic box bagging,automatic 4-corner sealing,automatic heat-shrinking and automatic box conveying.

2. The automatic POF film bag forming and automatic box bagging system to achieve the sealing lines in the middle part of the boxes;

3. Automatic box bagging system and automatic four-corner sealing and cutting to achieve 6-sides of box no wrinkles and smooth appearance of 7 sealing lines;

4. The machine applicable to high-requirement shrink packaging,such as phone box packaging,electronics packaging,fancy box packaging,cosmetics box packaging,food box packaging and so on.

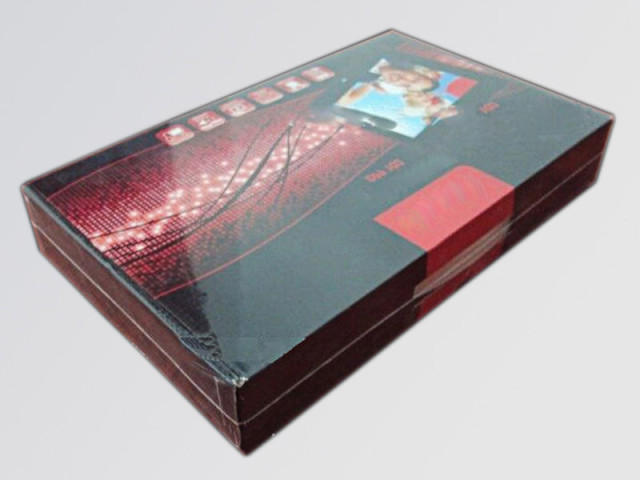

Shrink-wrapping Product Display



Main Technical Parameters

MODEL

AMQ-PDZF201

AMQ-PDZF301

AMQ-PDZF401

Applicable Film

POF

POF

POF

Packing Size

L

100-220mm

100-350mm

100-450mm

W

85-200mm

85-250mm

85-300mm

H

35-120mm,

L+H<320mm

30-120mm,

L+H<445mm

35-150mm,

L+H<550mm,

W+H<420mm

Packing Speed

1-12pcs/min.

Heating Temperature

0-300°C

Air Supply

0.5-0.7mpa

Power

6KW

Voltage

AC220V,50Hz,1PH

Machine Dimension

(Bagging&Sealing Section)

L2600×W1400×H1800mm
