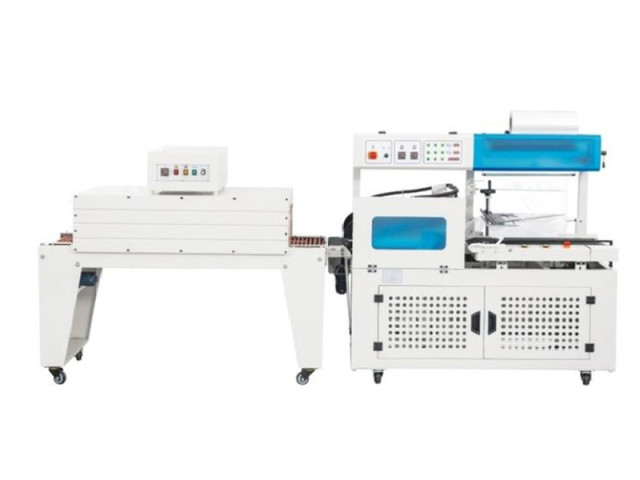

AMQ-5545D+AMS-4522 is L-bar shrink-film wrapping machine+Heat Shrink tunnel,automatic film-feeding,automatic product-conveying,automatic sealing and heat shrink wrapping in one line.
Email:admin@amamachine.com
Whatsapp:+86 17758110836
Description:
1. AMQ-5545D+AMS-4522 is L-bar shrink-film wrapping machine+Heat Shrink tunnel,automatic film-feeding,automatic product-conveying,automatic sealing and heat shrink wrapping in one line;
2. The machine is a cost-effective solution applicable to POF film thickness 0.012mm-0.02mm;
3. Anti-incorrect cutting device for the sealing cutters;
4. Simple machine-console for easy operating,automatic machine alarm system for safe operating.
Shrink Products Display
Main Technical Parameters
|
MODEL |
AMQ-5545D |
AMS-4522 |
|
Applicable Film |
POF |
POF |
|
Packing Size |
L+2H≦550mm,W+H≦330mm, H≦140mm,L⩾100mm |
⁄ |
|
Tunnel Size |
⁄ |
1200×450×220mm |
|
Cutter Size |
550×450mm |
⁄ |
|
Packing Speed |
20-25pcs/min. |
20-25pcs/min. |
|
Max.Temperature |
240°C |
200°C |
|
Air Supply |
0.6-0.85mpa |
⁄ |
|
Power |
2.5KW |
9.2KW |
|
Voltage |
AC220V,50Hz,1PH |
AC380V,50Hz,3PH |
|
Table Height |
810mm |
810mm |
|
Machine Dimension |
L1680×W840×H1475mm |
L1621×W714×H1335mm |
|
Net Weight |
250kgs |
150kgs |
