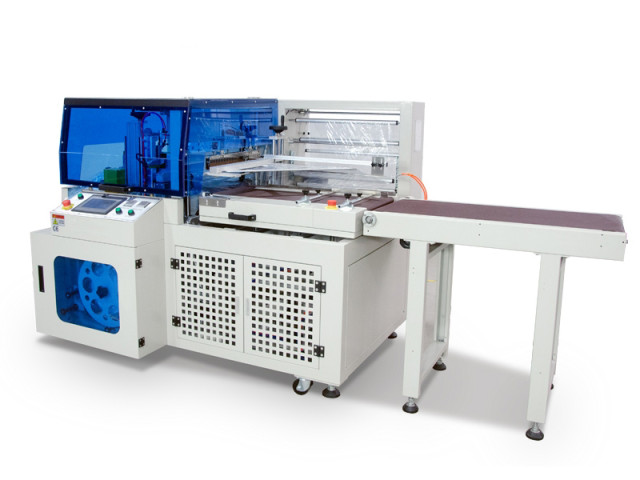

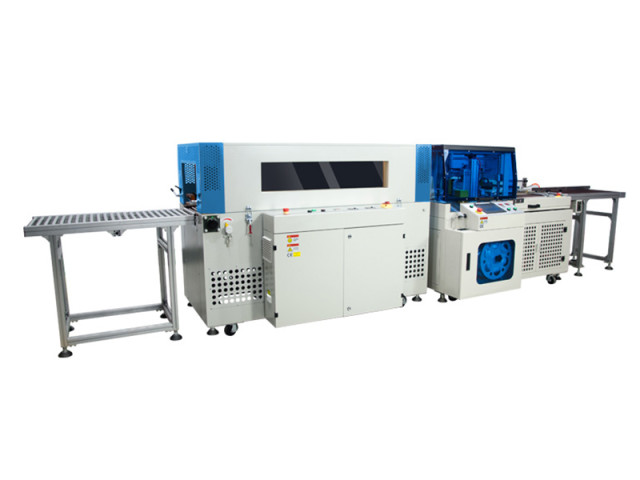

AMQ-5545CI is Side-sealing Heat shrink packaging machine,widely used for daily chemical products,household goods,stationary packaging,notebook packaging,food packaging and so on.

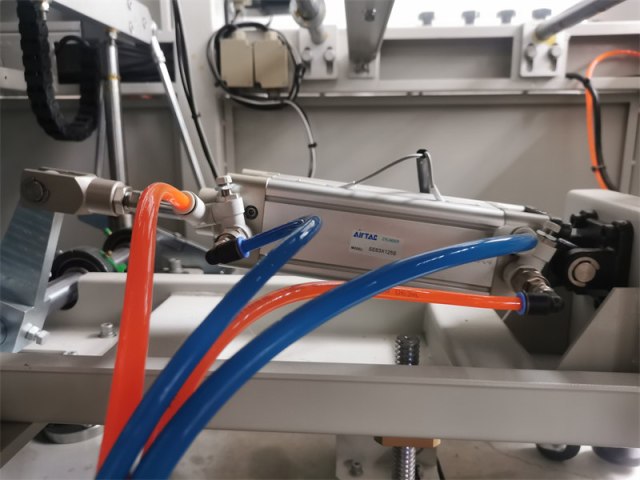

The horizontal-cutter of AMQ-5545CI driven by the pneumatic system, the side-sealing is belt-rolling delivered to achieve unlimited sealing length applying to mass production for big-size products,such as carpet shrink packaging,hardware shrink packaging,home textile shrink packaging,furniture shrink packaing and so on.
Email:admin@amamachine.com
Whatsapp:+86 17758110836
Description:
1. AMQ-5545CI is Side-sealing Heat shrink packaging machine,widely used for daily chemical products,household goods,stationary packaging,notebook packaging,food packaging and so on.
2. The horizontal-cutter of AMQ-5545CI driven by the pneumatic system, the side-sealing is belt-rolling delivered to achieve unlimited sealing length applying to mass production for big-size products,such as carpet shrink packaging,hardware shrink packaging,home textile shrink packaging,furniture shrink packaing and so on.

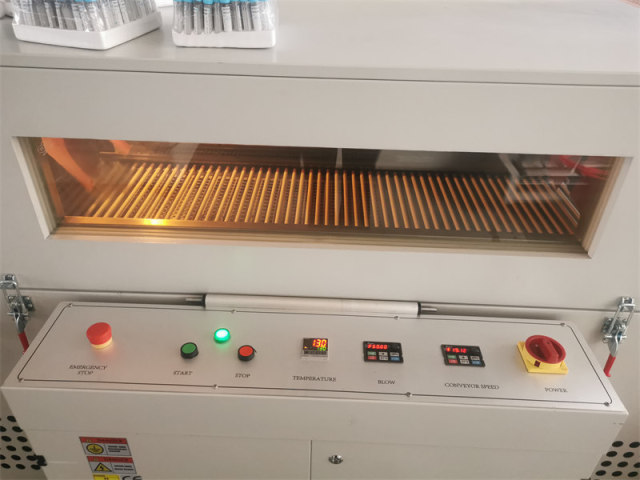

3. AMS-5030LW Shrink Tunnel is Frequency controlling for conveyor speed,the wind blowing direction and the wind blowing-force able to be adjusted to satisfy the packaging requests of various products;
4. AMS-5030 Shrink Tunnel is a cost-effective solution for POF film heat-shrinking,the conveyor speed and the temperature is adjustable;
5. AMQ-5560CI,AMQ-5575CI,AMQ-5590CI Side Sealer mainly designed for shrink packaging of big-size products as well as AMS-8030LW and AMS-8030LLS Shrink Tunnels.
Application&Solutions
Main Technical Parameters
|
MODEL |
AMQ-5545CI Side Sealer |
AMS-5030LW Tunnel |
AMS-5030 Tunnel |
|
Applicable Film |
POF,PE |
POF |
POF |
|
Packing Size |
W+H≦380mm, H≦170mm,L⩾100mm |
1300×400×250mm |
1100×400×250mm |
|
Tunnel Size |
⁄ |
L1500×W500×H300mm |
L1300×W500×H300mm |
|
Horizontal-Cutter Size |
450mm |
⁄ |
⁄ |
|
Packing Speed |
20-30pcs/min. |
20-45pcs/min. |
20-40pcs/min. |
|
Max.Temperature |
280°C |
200°C |
200°C |
|
Air Supply |
0.6-0.85mpa |
⁄ |
⁄ |
|
Power |
2.5KW |
16KW |
14KW |
|
Voltage |
AC220V,50Hz,1PH |
AC380V,50Hz,3PH |
AC380V,50Hz,3PH |
|
Table Height |
850mm+30mm |
850mm+30mm |
850mm+30mm |
|
Machine Dimension |
L1720×W1415×H1320mm |
L1875×W1035×H1305mm |
L1680×W825×H1580mm |
|
Net Weight |
600kgs |
650kgs |
250kgs |
|
MODEL |
AMQ-5560CI Side Sealer |
AMQ-5575CI Side Sealer |
AMQ-5590CI Side Sealer |
|
Applicable Film |
POF,PE |
POF,PE |
POF,PE |
|
Packing Size |
W+H<550mm, H≦230mm,L⩾110mm |
W+H<680mm, H≦230mm,L⩾110mm, W⩾90mm |
W+H<820mm, H<230mm,L⩾150mm, W>90mm |
|
Horizontal-Cutter Size |
600mm |
750mm |
900mm |
|
Packing Speed |
10-30pcs/min. |
10-25pcs/min. |
5-25pcs/min. |
|
Max.Temperature |
280°C |
280°C |
280°C |
|
Air Supply |
0.6-0.85mpa |
0.6-0.85mpa |
0.6-0.85mpa |
|
Power |
3KW |
3.5KW |
3.5KW |
|
Voltage |
AC220V,50Hz,1PH |
AC220V,50Hz,1PH |
AC220V,50Hz,1PH |
|
Table Height |
850mm+30mm |
850mm+30mm |
850mm+30mm |
|
Machine Dimension |
L1980×W1520×H1430mm |
L2320×W1650×H1430mm |
L2420×W1890×H1430mm |
|
Net Weight |
650kgs |
700kgs |
750kgs |
|
MODEL |
AMS-8030LW Tunnel |
AMS-8030LLW Tunnel |
|
Applicable Film |
POF |
POF |
|
Packing Size |
1300×600×250mm |
1500×600×250mm |
|
Tunnel Size |
L1500×W800×H300mm |
L1800×W800×H300mm |
|
Packing Speed |
20-45pcs/min. |
20-55pcs/min. |
|
Max.Temperature |
200°C |
200°C |
|
Power |
18KW |
19KW |
|
Voltage |
AC380V,50Hz,3PH |
AC380V,50Hz,3PH |
|
Table Height |
850mm+30mm |
850mm+30mm |
|
Machine Dimension |
L1875×W1335×H1305mm |
L2175×W1335×H1305mm |
|
Net Weight |
700kgs |
750kgs |
