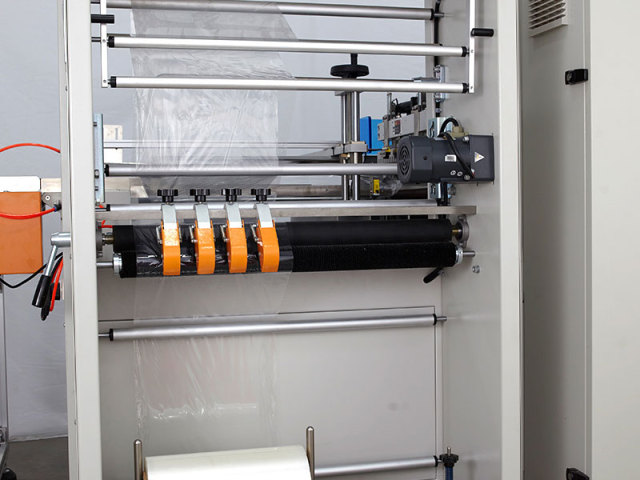

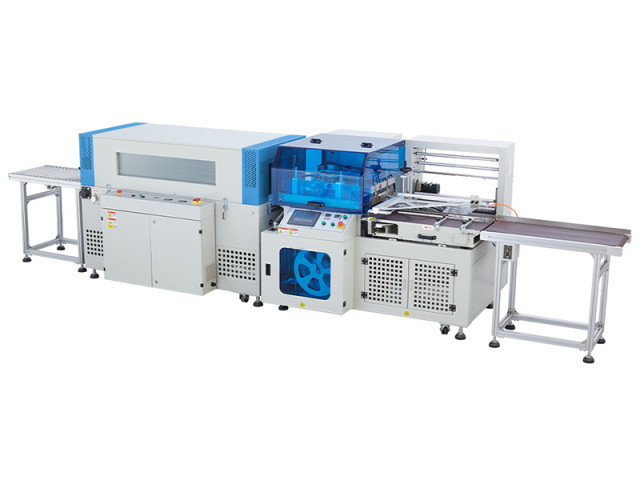

AMQ-5545DI+AMS-5030LW is L-bar vertical sealing shrink-film packing machine+Shrink tunnel, automatic film-feeding,automatic product-conveying,automatic sealing and heat shrink wrapping in one line.
Email:admin@amamachine.com
Whatsapp:+86 17758110836
AMQ-5545DI+AMS-5030LW is L-bar vertical sealing shrink-film packing machine+Shrink tunnel, automatic film-feeding,automatic product-conveying,automatic sealing and heat shrink wrapping in one line;
Shrink packaging has the functions of moisture-proof,dust-proof and damage prevention as well as improving the level of the products to enhance competitiveness of packaged products in the market.
It is widely used for book packaging,food packaging,daily necessities packaging,home-appliances packaging, electronic product packing and so on.

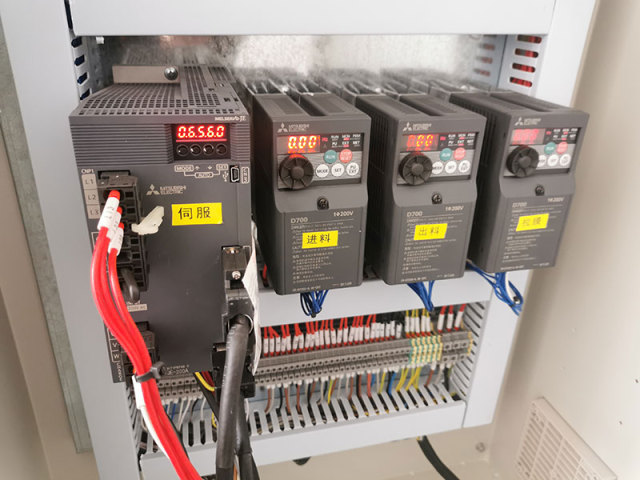

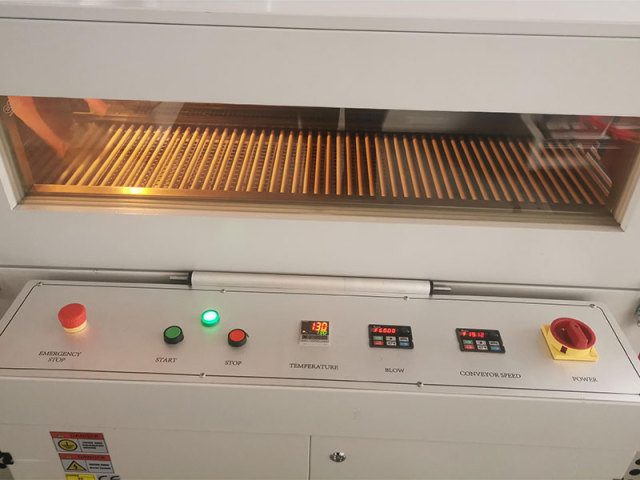

AMS-5030LW Shrink Tunnel is Frequency controlling for conveyor speed,the wind blowing direction and the wind blowing-force able to be adjusted to satisfy the packaging requests of various products.
Application&Solutions
Machine Characteristics:

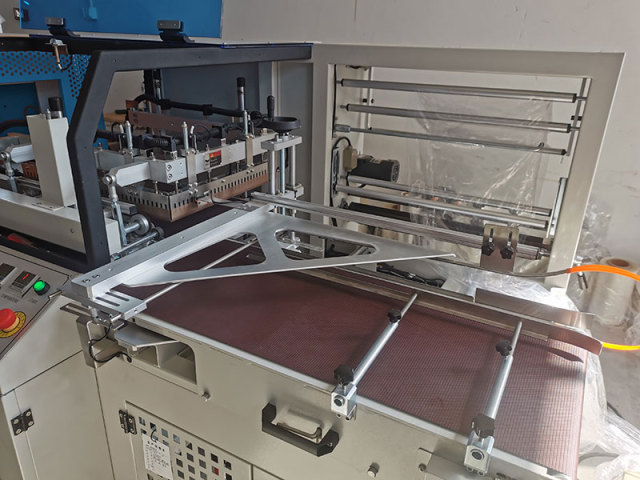

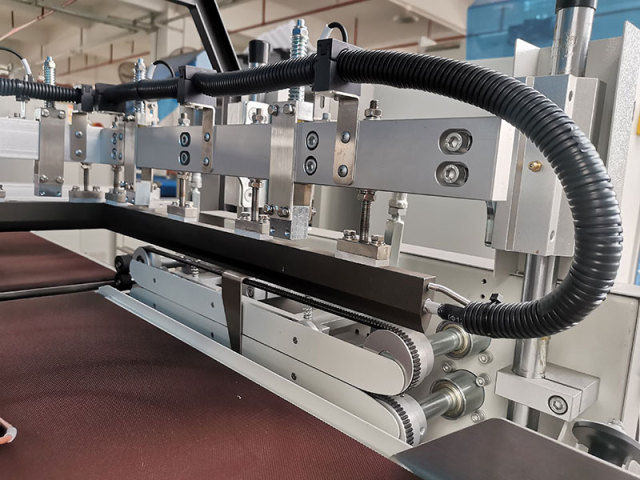

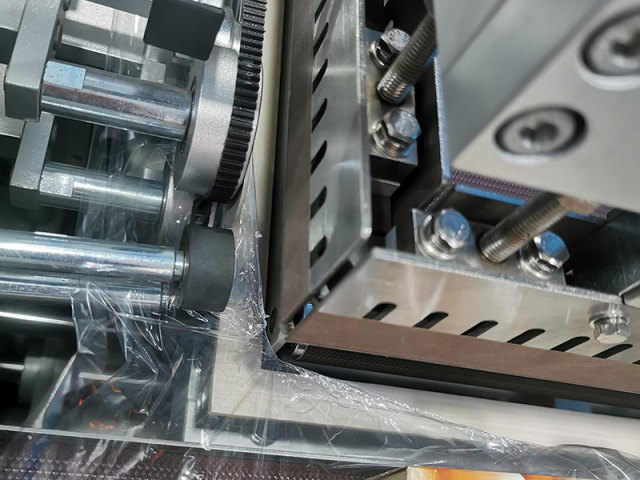

1. The vertical L bar sealing to achieve high efficiency and good-look of cutting and sealing ;

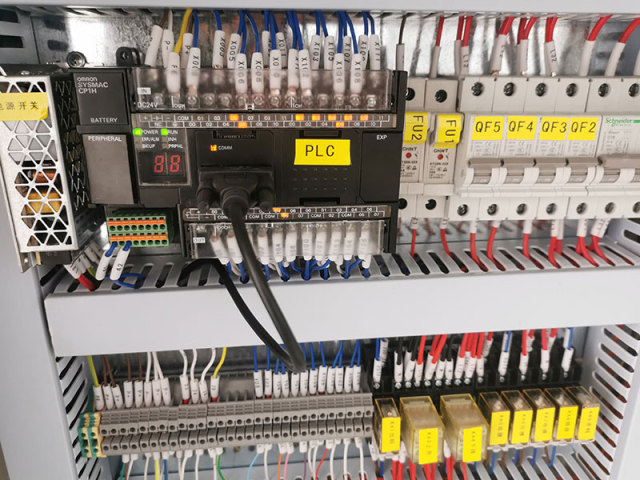

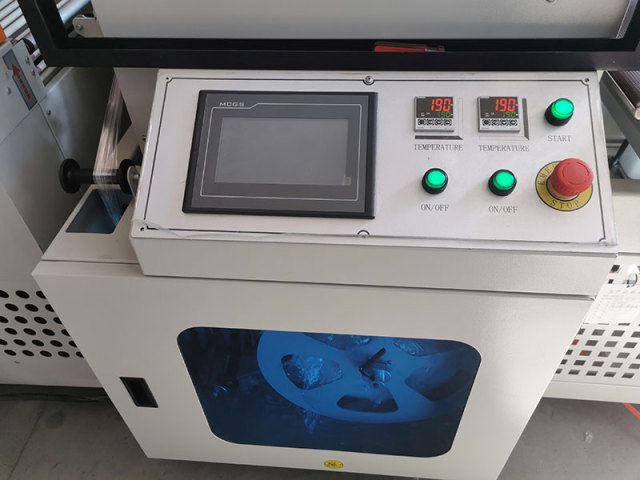

2. The machine is PLC system controlling,sealing cutter lifting by button adjusting,easy machine operating;
3. Horizontal-set electric tracing-eye and vertical-set electric tracing-eye equipped on the cutting section and it can be switched in the screen to adapt wrapping small products;
4. Air-blowing device can be switched on according to product requirements, it is mainly for big-size products for helping it wrap smoothly through heat-tunnel shrinking;
5. Automatic machine shut-down system when the door be opened during machine working and automatic alarm system to ensure safety for machine users.
Main Technical Parameters
|
MODEL |
AMQ-5545DI |
AMS-5030LW |
|
Applicable Film |
POF,PE |
POF |
|
Packing Size |
L+H<450mm,W+H<380mm, H<180mm,L⩾100mm |
1300×400×250mm |
|
Tunnel Size |
⁄ |
L1500×W500×H300mm |
|
Cutter Size |
555×450mm |
⁄ |
|
Packing Speed |
20-30pcs/min. |
20-35pcs/min. |
|
Max.Temperature |
280°C |
200°C |
|
Air Supply |
0.6-0.85mpa |
⁄ |
|
Power |
3KW |
16KW |
|
Table Height |
850mm+30mm |
850mm+30mm |
|
Voltage |
AC220V,50Hz,1PH |
AC380V,50Hz,3PH |
|
Machine Dimension |
L1785×W1420×H1340mm |
L1875×W1035×H1305mm |
|
Net Weight |
650kgs |
650kgs |
|
MODEL |
AMQ-5545DH(High-speed) |
AMS-5030LW |
|
Applicable Film |
POF,PE |
POF |
|
Packing Size |
L+H<450mm,W+H<380mm, H<180mm,L⩾110mm |
1300×400×250mm |
|
Tunnel Size |
⁄ |
L1500×W500×H300mm |
|
Cutter Size |
555×450mm |
⁄ |
|
Packing Speed |
20-55pcs/min. |
20-35pcs/min. |
|
Max.Temperature |
280°C |
200°C |
|
Air Supply |
0.6-0.85mpa |
⁄ |
|
Power |
3.5KW |
16KW |
|
Table Height |
850mm+30mm |
850mm+30mm |
|
Voltage |
AC220V,50Hz,1PH |
AC380V,50Hz,3PH |
|
Machine Dimension |
L1785×W1420×H1340mm |
L1875×W1035×H1305mm |
|
Net Weight |
650kgs |
650kgs |
