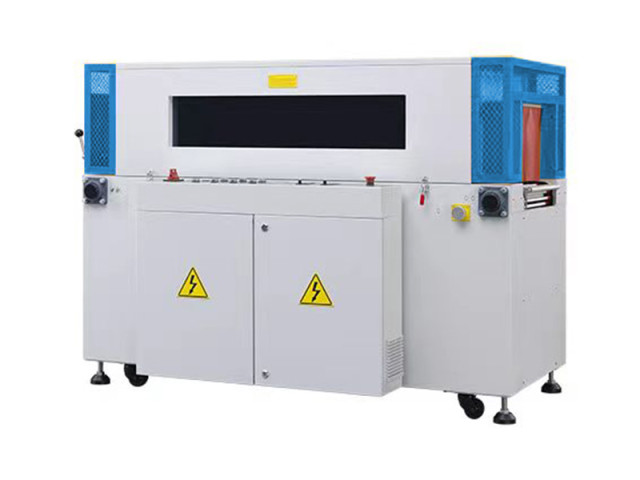

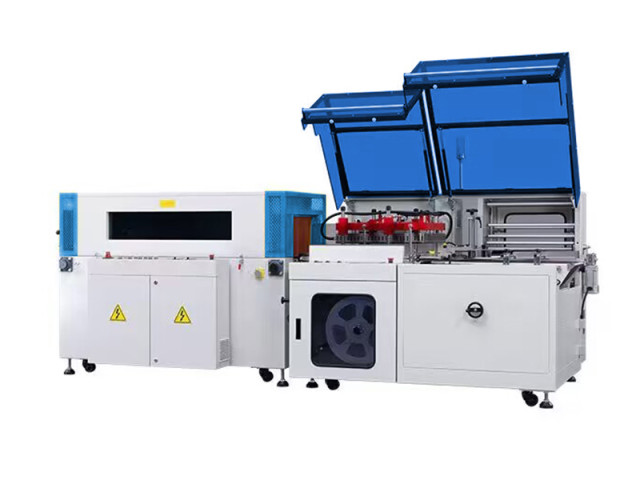

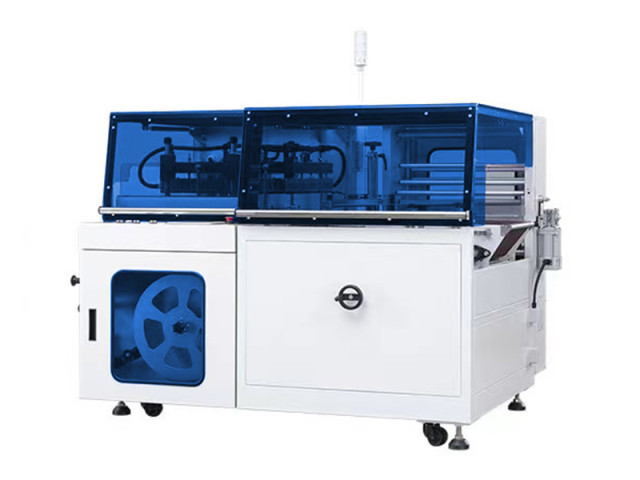

AMQ-5545TB+AMS-5030LW is L-bar heat shrink-film packing machine+Shrink tunnel, automatic film-feeding,automatic product-conveying,automatic sealing and heat shrink wrapping in one line
Email:admin@amamachine.com
Whatsapp:+86 17758110836
AMQ-5545TB+AMS-5030LW is L-bar heat shrink-film packing machine+Shrink tunnel, automatic film-feeding,automatic product-conveying,automatic sealing and heat shrink wrapping in one line;
Shrink packaging has the functions of moisture-proof,dust-proof and damage prevention as well as improving the level of the products to enhance competitiveness of packaged products in the market.
It is widely used for book packaging,food packaging,daily necessities packaging,home-appliances packaging, electronic product packing and so on.
Application&Solutions
Machine Characteristics:
1. The advanced vertical sealing to improve sealing area more even and making the sealing line in the middle part of the products ,it overcomes the flaws of the wrinkles problems in the old-model L bar sealing machines;
2. The machine is PLC system controlling,sealing cutter lifting by button adjusting,easy machine operating;
3. Horizontal-set electric tracing-eye and vertical-set electric tracing-eye equipped on the cutting section and it can be switched in the screen to adapt wrapping small products;
4. Automatic height-detecting memory function,improve production efficiency;
5. Air-blowing device can be switched on according to product requirements, it is mainly for big-size products for helping it wrap smoothly through heat-tunnel shrinking;
6. Automatic safety protection system and automatic alarm system to ensure safety for machine users.
Main Technical Parameters
MODEL |
AMQ-5545TB |
AMS-5030LW |
Applicable Film |
POF,PE |
POF |
Packing Size |
L+H<500mm,W+H<400mm, H<180mm,L⩾100mm |
1300×400×250mm |
Tunnel Size |
⁄ |
L1500×W500×H300mm |
Cutter Size |
562×500mm |
⁄ |
Packing Speed |
20-30pcs/min. |
20-35pcs/min. |
Max.Temperature |
280°C |
200°C |
Air Supply |
0.6-0.8mpa |
⁄ |
Power |
2.8KW |
16KW |
Voltage |
AC220V,50Hz,1PH |
AC380V,50Hz,3PH |
Machine Dimension |
L1913×W1477×H1363mm |
L1875×W1035×H1305mm |
Net Weight |
800kgs |
650kgs |
