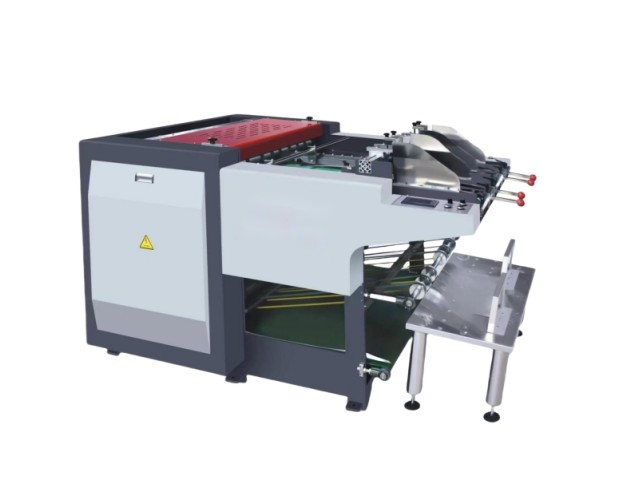

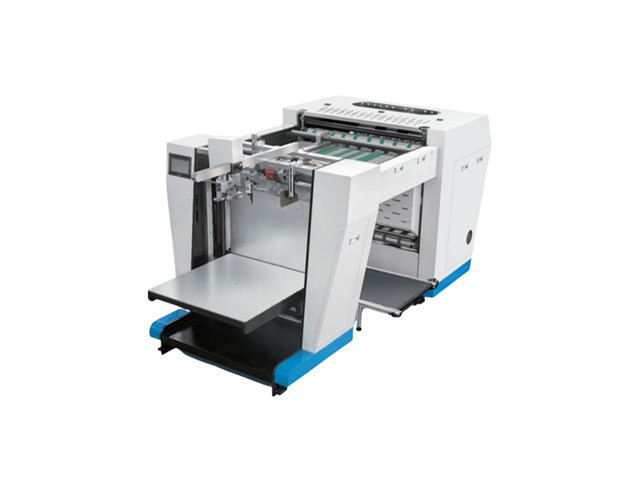

Specially engineered for paper V-grooving, the AM-KC950 handles ivory board, carton paper, coated paper, and more. This drum-type machine integrates an automatic deviation-correction system with an automatic paper feeder,delivering highly precise V-grooving results
Email:admin@amamachine.com
Whatsapp:+86 17758110836
Main Applications:
∎V-grooving achieves tight, straight folded edges with crisp corners, upgrade the product's class.
∎For thick paper, die-cutting creasing may lead to insufficient creases or excessive pressure that deforms the paper, whereas V-grooving offers more precise and controllable.
∎After V-grooving, the material becomes thinner along the fold line, making it much easier to fold.

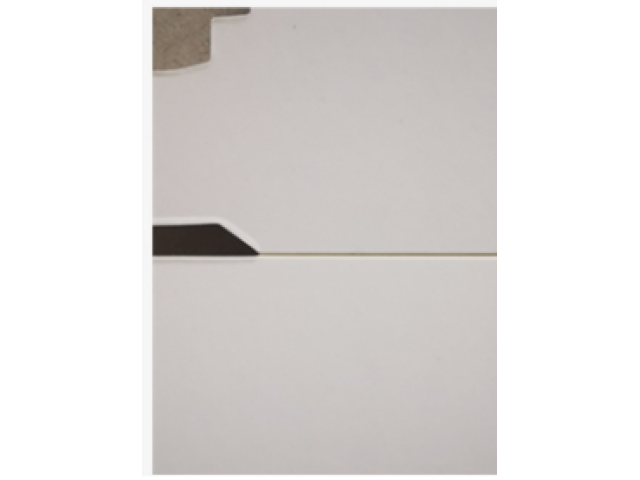

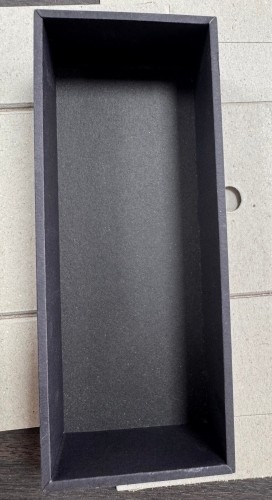

⁕With V-grooving,the paper folds into sharper right-angle.
Main Technical Parameters
|
MODEL |
AM-KC950 |
|
Paper-feeding Width |
150-700mm |
|
Paper-feeding Length |
150-600mm |
|
Paper Thickness |
250gsm-600gsm |
|
Work Speed |
10-30m/min |
|
Grooving Angle |
80°-140° |
|
Max.QTY of Groove/time |
12 |
|
Power |
6KW |
|
Net Weight |
1700kgs |
|
Dimension(L×W×H) |
2900×1580×1700mm |
