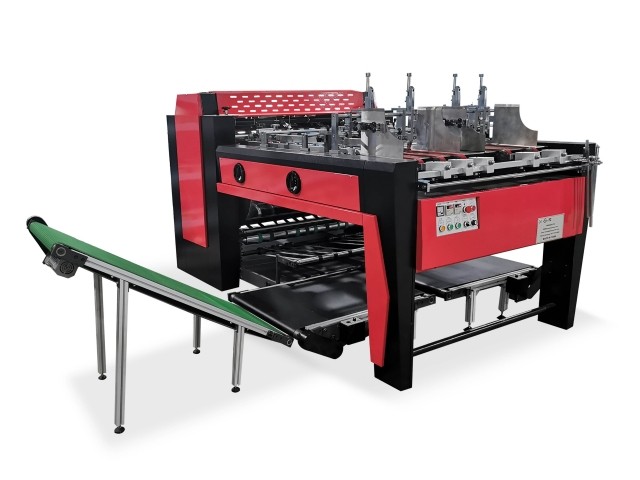

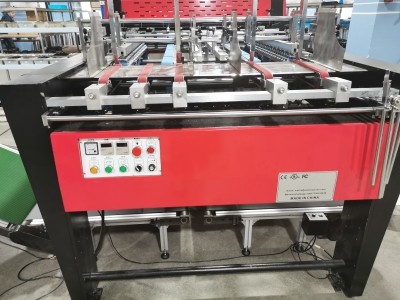

Designed for high-efficiency V, L and U grooving(slotting) this automatic feeding drum groover handles a wide range of materials including cardboard, MDF board, ivory board, and coated paper. An open-type safety cover not only simplifies installation and commissioning, but also guarantees complete safety for both operation and the operator.
The integrated left, right and upward conveying belts significantly enhance the collection of finished products, making it especially effective for mass production runs.
An ideal choice for processing greyboard for rigid boxes, cardboard for gift boxes, hardcover case materials, and more.
Email:admin@amamachine.com
Whatsapp:+86 17758110836
Machine Features:
◆Flexible synchronized conveying and collection：

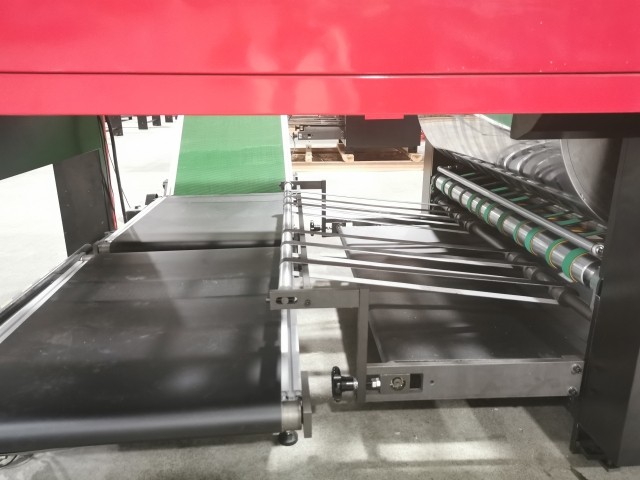

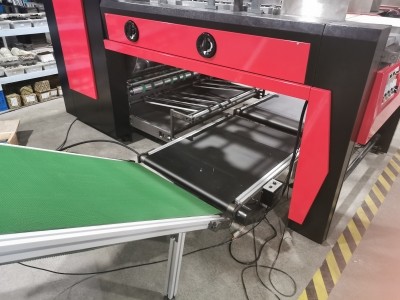

After V Grooving(V slotting) the finished products are conveyed by independent left and right horizontal belts and an inclined belt,
the conveying direction and speed of these belts are adjustable, enabling flexible, synchronized conveying and collection,it reduces waiting time, shortens the single operation cycle, so as to significantly cuts non-production time.

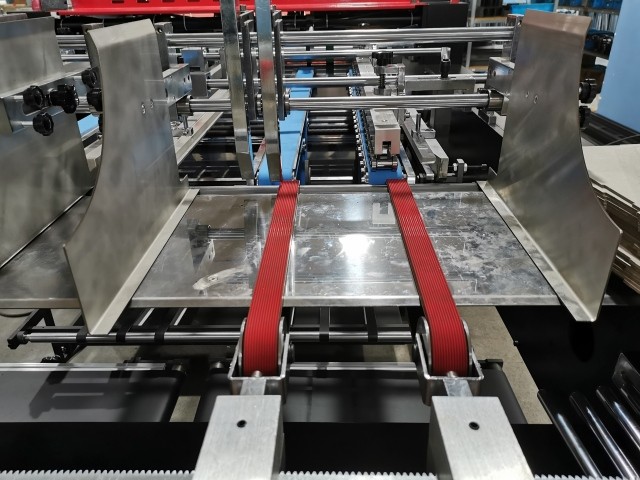

◆Double Efficiency: Dual-row greyboard auto feeding simultaneously — output doubled.

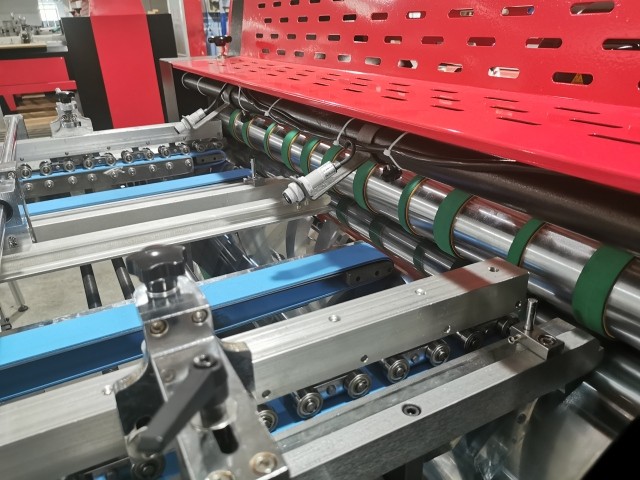

◆Upgraded Accuracy: Independent dual-channel auto correction.

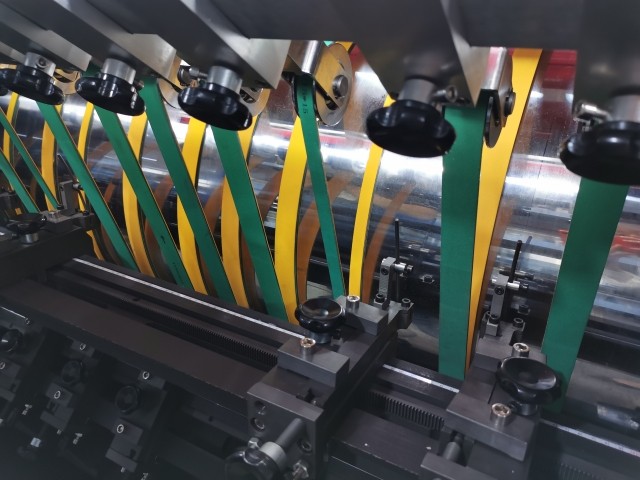

◆Effortless Adjustment: Knob fine-tuning of belt tension — precise and convenient in one step.
◆Versatility: Wide and narrow belts for various sizes and shapes compatibility; grooving angle finely adjustable to suit different product requirements.
◆Solid Durability: All CNC sheet-metal structure, robust and durable, for worry-free production.
Main Technical Parameters：
|
MODEL |
AM-KC1000B |
AM-KC1200B |
AM-KC1300B |
|
Feeding Width |
130-900mm |
130-1130mm |
130-1230mm |
|
Feeding Length |
130-600mm |
130-600mm |
130-800mm |
|
Precision |
±0.2mm |
±0.2mm |
±0.2mm |
|
Work Speed |
10-40m/min |
10-40m/min |
10-40m/min |
|
CardboardThickness |
1mm-4mm |
1mm-4mm |
1mm-4mm |
|

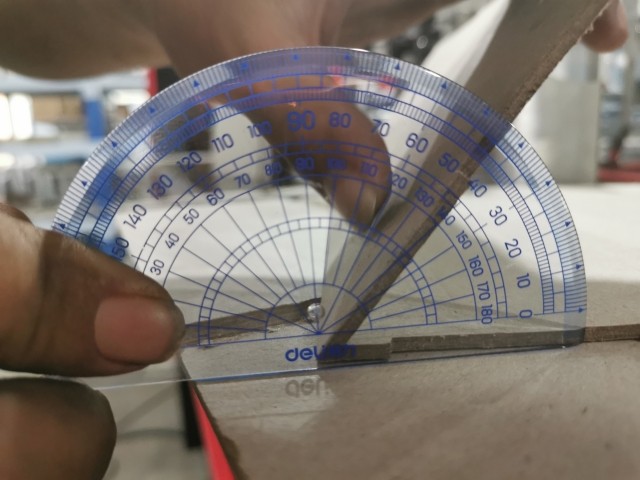

Grooving Angle |
80°-145° |
80°-145° |
80°-145° |
|
Max.QTY of Groove/time |
9 |
9(12 optional) |
12 |
| QTY of Drum-belts | 8pcs | 10pcs | 11pcs |
|
Power |
3kw |
3.4kw |
4kw |
|
Voltage |
AC380V,50Hz |
AC380V,50Hz |
AC380V,50Hz |
|
Net Weight |
1560kgs |
1660kgs |
1760kgs |
|
Dimension(L×W×H) |
2400×1580×1650mm |
2600×1580×1650mm |
2700×1700×1650mm |

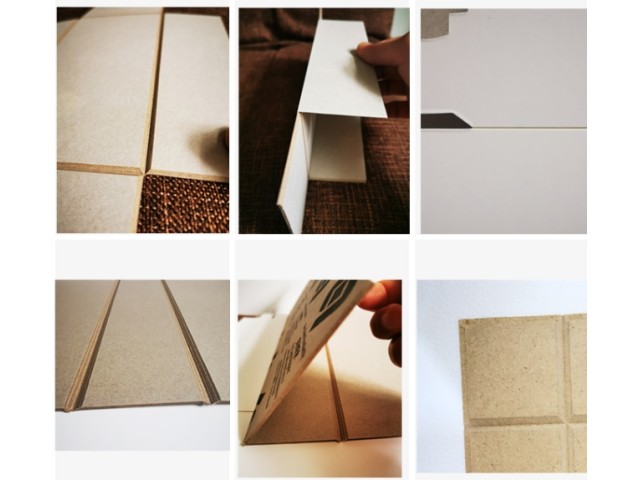

Grooving-products Display
