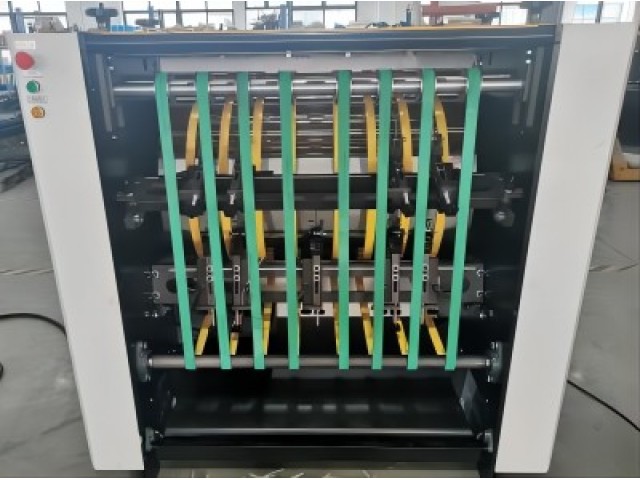

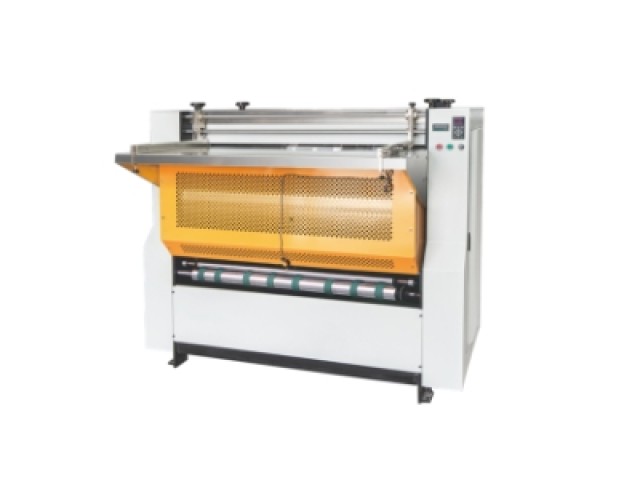

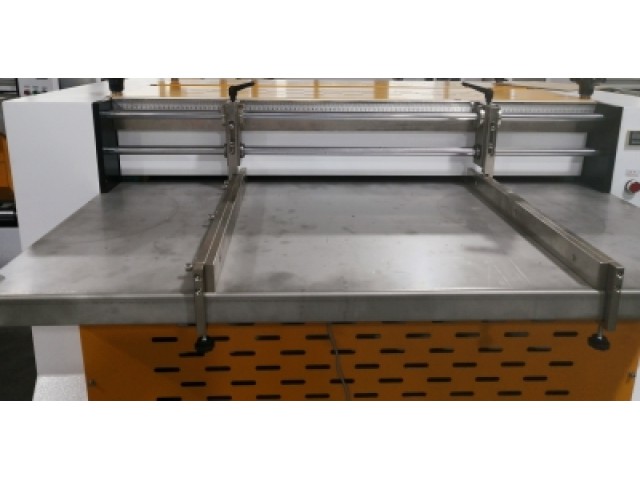

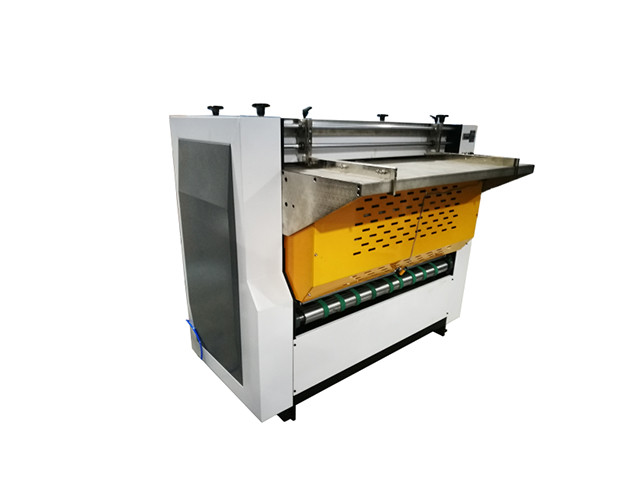

The machine is drum-grooving machine with manual single-piece feeding, used for V, L and U grooving on cardboard,MDF board, Ivory board paper,copper paper and so on. The machine equipped with safety cover,which is convenient for installation and debugging and it ensures safety of machine users.

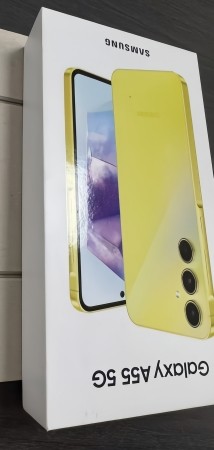

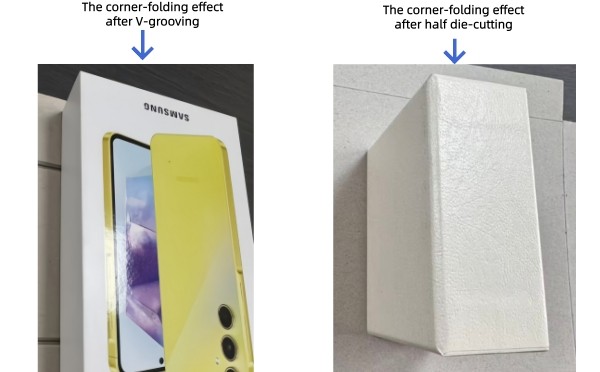

The machine is an ideal equipment for small patch production to make rigid box,gift box,hardcover case,carton box and so on.
Email:admin@amamachine.com
Whatsapp:+86 17758110836

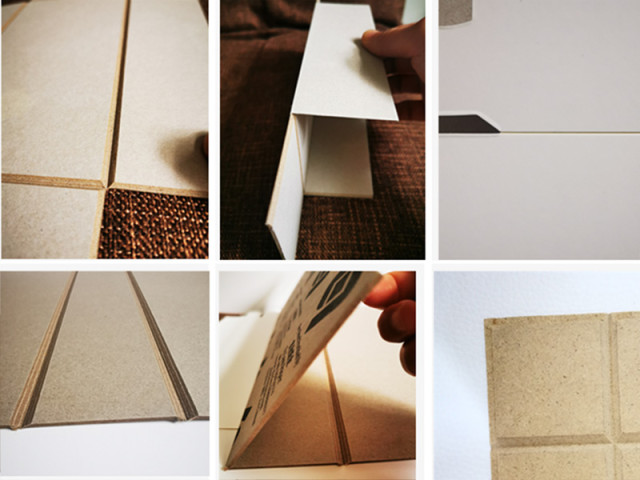

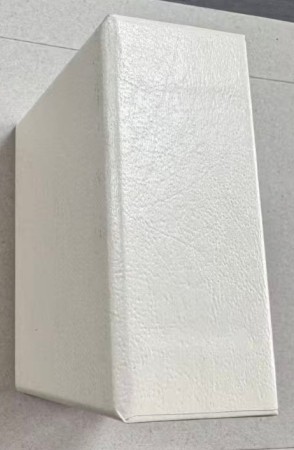

Grooving-Products Display
Main Technical Parameters：
|
MODEL |
AM-K1000 |
AM-KC1300M |
|
Feeding Width |
100-980mm |
100-1280mm |
|
Feeding Length |
100-800mm |
100-800mm |
|
Slotting Distance |
0-800mm |
0-1100mm |
|
Precision |
±0.2mm |
±0.2mm |
|
Work Speed |
10-30m/min |
10-30m/min |
|
CardboardThickness |
300gsm-4mm |
300gsm-4mm |
|
Grooving Angle |
80°-140° |
80°-140° |
|
Diameter of Drum |
600mm |
600mm |
|
Max.QTYofGroove/time |
9 |
12 |
|
Power |
2.2kw |
2.2kw |
|
Voltage |
AC380V,50Hz |
AC380V,50Hz |
|
Net Weight |
1000kgs |
1200kgs |
|
Dimension(L×W×H) |
1210×1500×1400mm |
1210×1800×1400mm |
