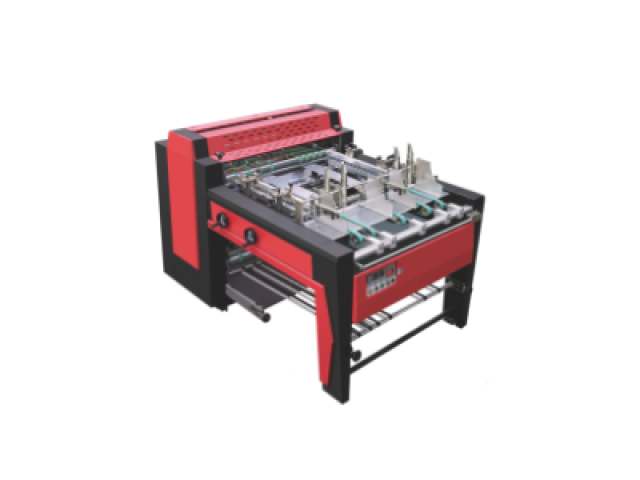

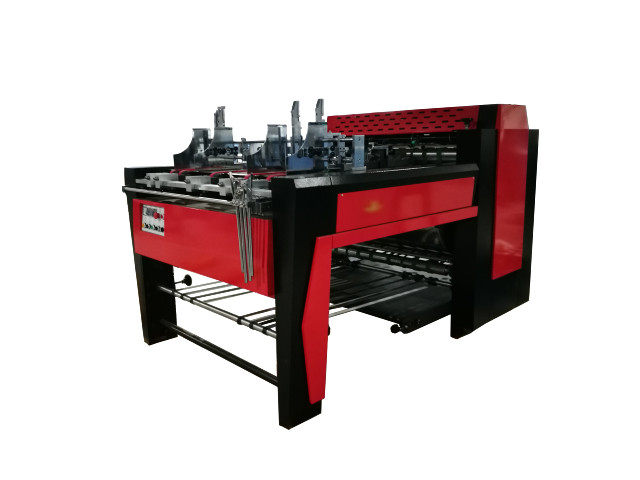

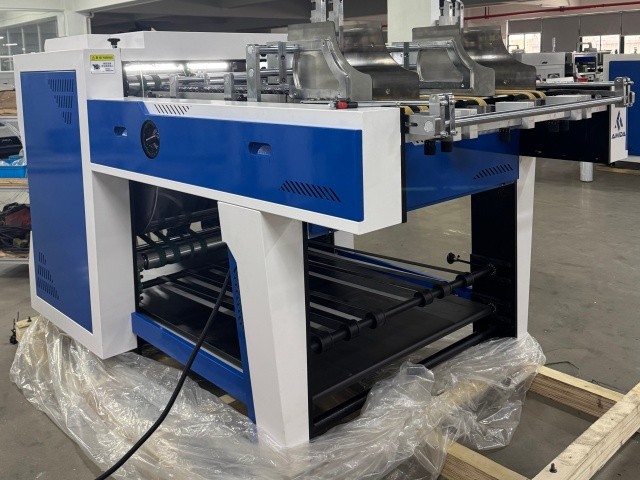

This is an automatic feeding drum-grooving machine designed for V, L, and U grooving on cardboard, grey-board, MDF board, and similar materials. It delivers clean, glossy grooving results and features easy knife adjustment.

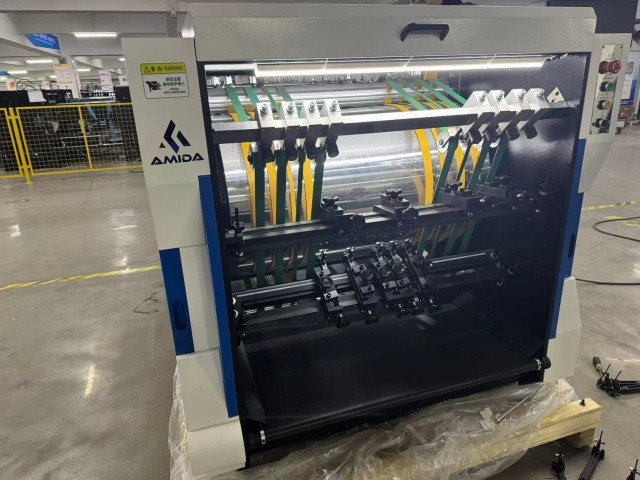

The entire machine is equipped with a safety cover, making installation and commissioning straightforward while ensuring full operator safety. The machine is ideal equipment for producing rigid boxes, gift boxes, hardcover cases, carton boxes, and many other packaging products.
Email:admin@amamachine.com
Whatsapp:+86 17758110836
Machine Features:

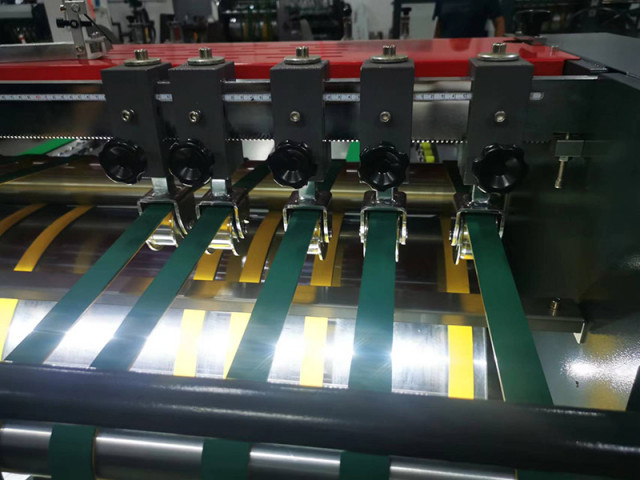

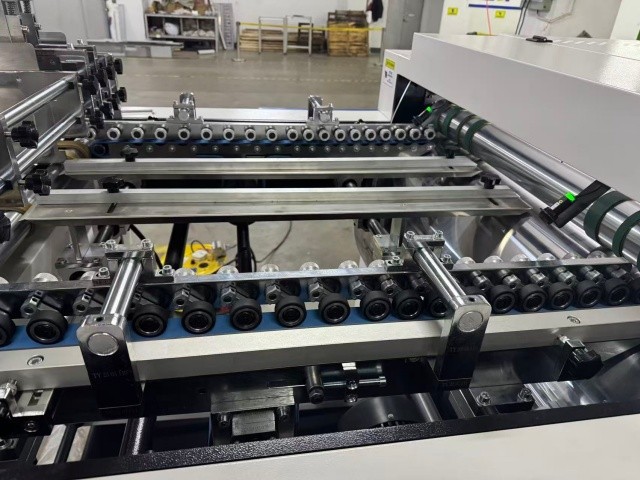

▲Efficient Dual-Channel Feeding: Supports automatic and simultaneous feeding of two rows of cardboard, doubling production capacity.
▲Independent Automatic Deviation Correction: Each feeding lane equipped with an independent deviation correction system for real-time alignment, ensuring grooving accuracy.

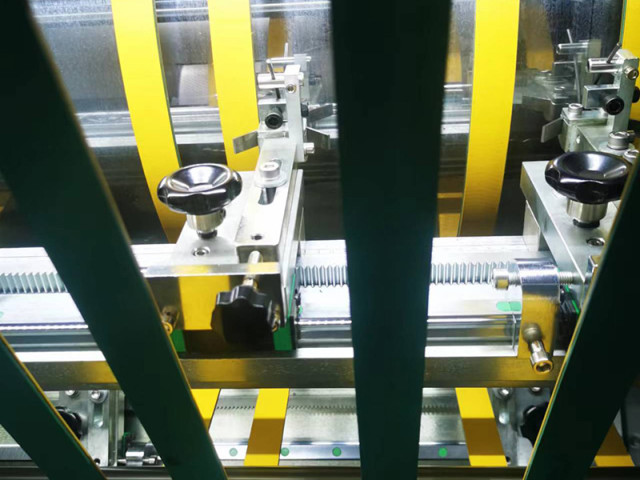

▲Knob-Type Fine-Tension Adjustment: Belt tension can be finely adjusted simply by turning a knob, eliminating tedious operations.
▲Compatible with Both Wide and Narrow Belts: Comes standard with belts of different widths, flexibly adapting to various greyboard sizes and making product changeovers quick and convenient.

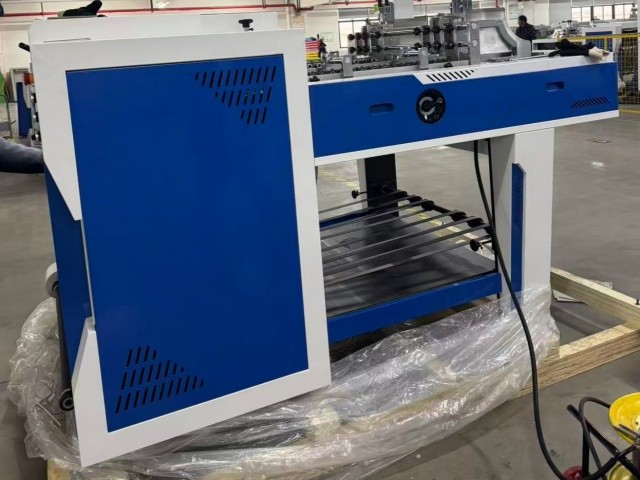

▲CNC-processed sheet metal structure: The machine built with CNC-processed sheet metal structure, offering high rigidity, minimal vibration, and stable, durable performance over long-term operation.
Main Technical Parameters：
|
MODEL |
AM-KC1000A |
AM-KC1300A |
|
Feeding Width |
80-930mm |
80-1230mm |
|
Feeding Length |
100-600mm |
100-600mm |
|
Grooving Speed |
300mm×300mm cardboard, 100-150grooving/min. |
300mm×300mm cardboard, 100-150grooving/min. |
|
Work Speed |
10-35m/min |
10-35m/min |
|
Cardboard Thickness |
1mm-4mm |
1mm-4mm |
|
Grooving Angle |
80°-145° |
80°-145° |
|

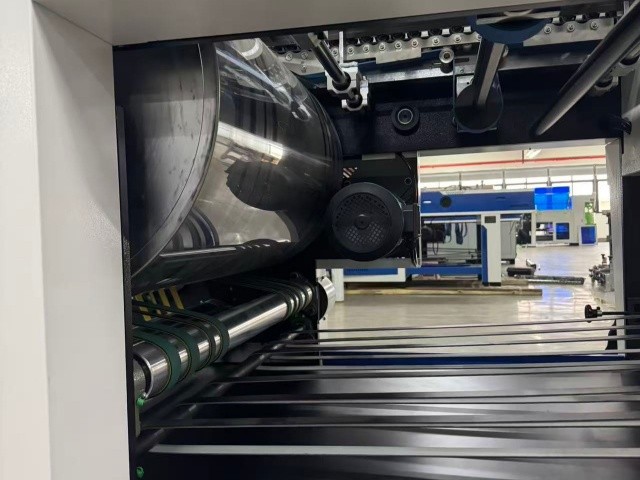

Diameter of Drum |
600mm |
600mm |
|
Max.QTYofGroove/time |
9 |
12 |
|
Power |
3kw |
3.2kw |
|
Voltage |
AC380V,50Hz |
AC380V,50Hz |
|
Net Weight |
1500kgs |
1700kgs |
|
Dimension(L×W×H) |
2400×1500×1500mm |
2700×1800×1500mm |

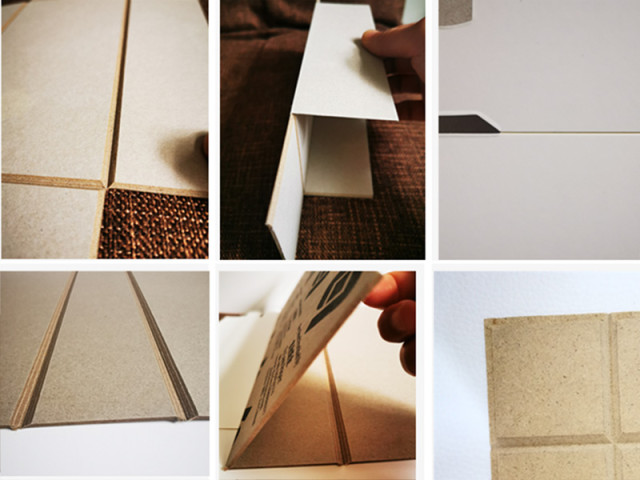

Grooving-products Display
