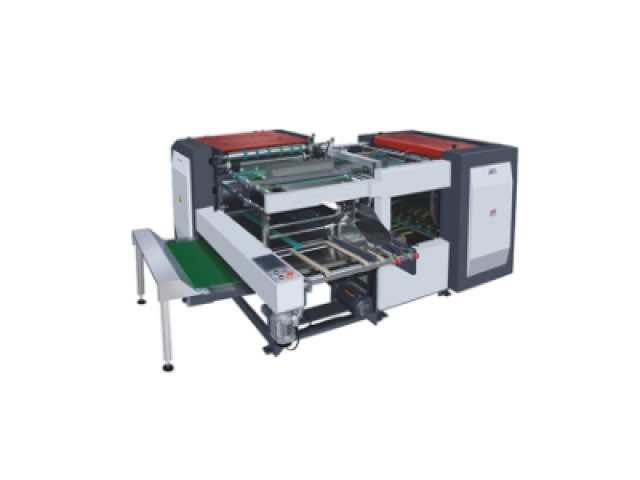

Designed for mass production, the AM-KC850 is bidirectional drum-type grooving machine with intelligent PLC control system, capable of performing two-direction grooving efficiently in a single pass.
The open-type safety cover allows convenient adjustment while ensuring operator safety.
Email:admin@amamachine.com
Whatsapp:+86 17758110836
Features:
The cardboard Bidirectional V slotting machine is specially developed for the high-volume production of premium rigid boxes (such as luxury boxes,wine boxes(alcohol packaging) mobile phone boxes, cosmetic boxes).
With a single pass, it simultaneously cuts V-grooves in both the longitudinal and transverse directions of the board, completely eliminating the need for secondary transfer processes and doubling your production efficiency.

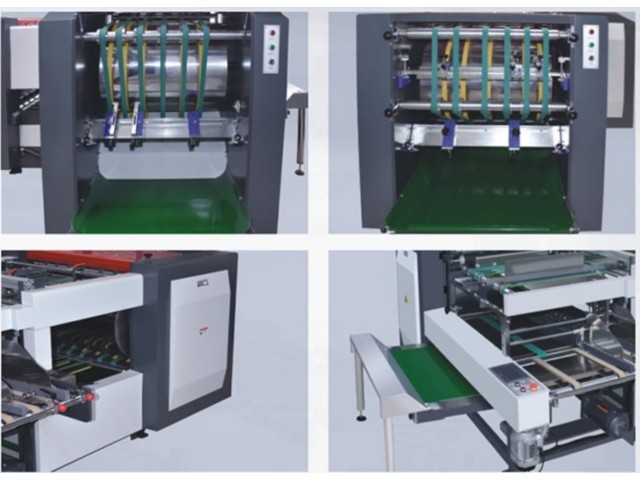

The machine equipped with 4-corner cleaning mechanism removes burrs from all four corners,leaving rigid box cardboard clean and ready for the next step.
Main Technical Parameters
|
MODEL |
AM-KC850 |
|
Cardboard-feeding Width |
130-900mm |
|
Cardboard-feeding Length |
130-600mm |
|
Work Speed |
10-40m/min |
|
CardboardThickness |
1mm-3.5mm |
|
Grooving Angle |
80°-140° |
|
Power |
6kw |
|
Voltage |
AC380V,50Hz |
|
Net Weight |
3500kgs |
|
Dimension(L×W×H) |
4300×2300×1500mm |

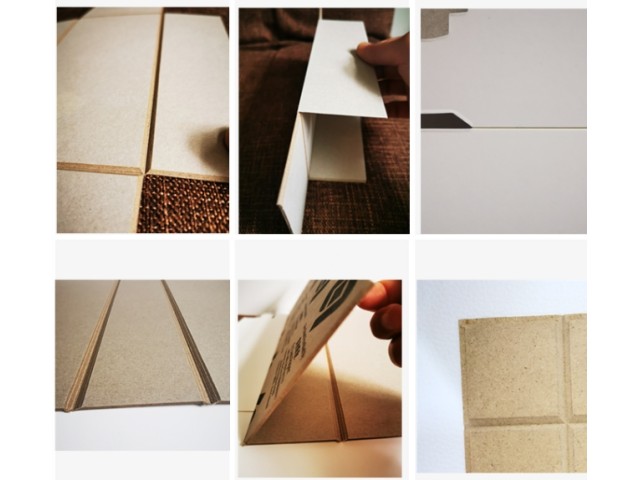

Grooving-products Display

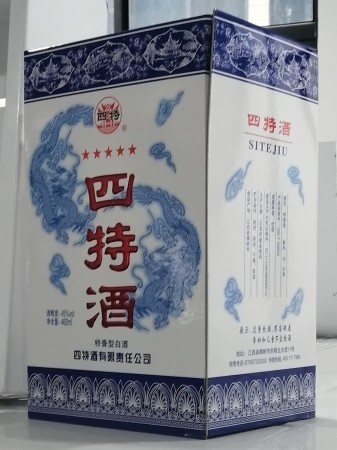

V grooving on Paper-board for Wine boxes(Liquor Packaging)

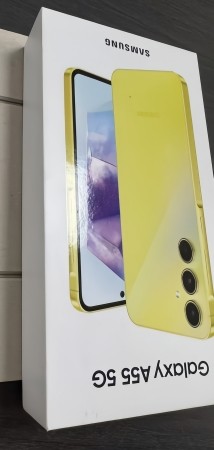

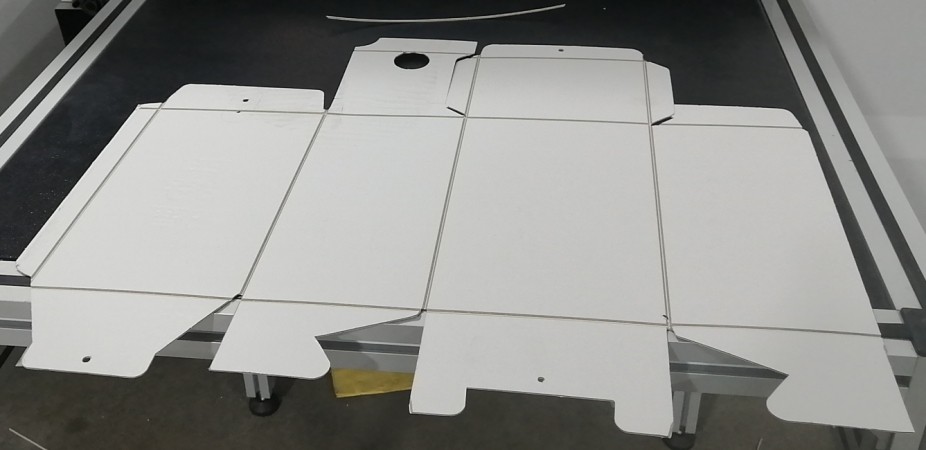

V grooving on cardboard for Rigid boxes
