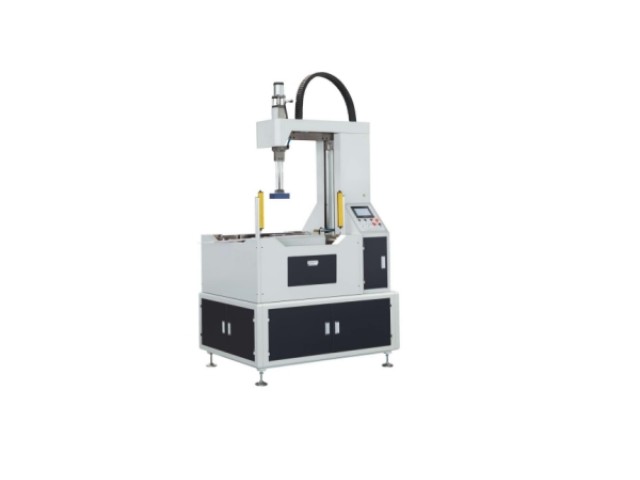

Rigid-boxes Display
Machine Features:
● Driven by servo motors, pneumatic system, and PLC control.
● Automatic mold-size adjustment for easier and faster mold replacement and machine debugging.
● Equipped with branded components such as INOVANCE,Schneider, Panasonic, AirTac, HIWIN, and XINJE.
● Equipped with an infrared safety device to ensure operator safety.
● A cost-effective solution for rigid box packaging and an ideal machine for multi-size box orders.
Main Technical Parameters：
|
Model |
AM-550AS |
AM-550AC |
AM-650AC |
|
Max.size of box(L×W×H) |
500×400×120mm |
600×480×150mm |
650×550×180mm |
|
Min.size of box(L×W×H) |
50×50×12mm |
80×60×12mm |
90×70×15mm |
|
Work speed |
5-20pcs/min. |
5-20pcs/min. |
5-20pcs/min. |
|
Power |
2.5kw,220V/8KW,380V |
2.5kw,220V/8KW,380V |
3kw,220V/8KW,380V |
|
Air supply |
≧0.6MPA |
≧0.6MPA |
≧0.6MPA |
|
Machine Dimension (L×W×H) |
1500×1100×2200mm |
1650×1400×2250mm |
1700×1470×2250mm |
|
Net weight |
900kgs |
950kgs |
1000kgs |
