products
Rigid Box Wrapping Machine / AM-540ZD Rigid Box Machine

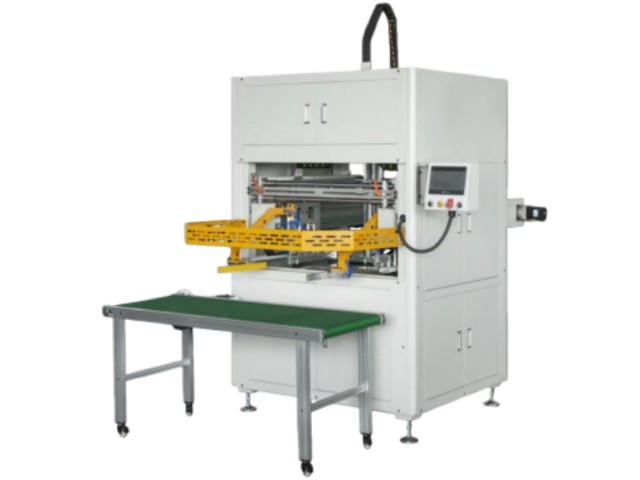

AM-540ZD Rigid Box Machine

● The machine applied with automatic box-delivering arm that controlled by servo motors,
so as to feed box automatically to wrapping system as well as completing box wrapping and bubble pressing in one process;
● The machine is automatic mold-size adjusting model which make mold replacing work much easier and machine debugging faster,at the meantime durable working-life;
● Automatic error diagnosis and display on the PLC screen, alarm accordingly and automatic shut-down system when alarm occurs.
● The machine can be worked with Gluing machine or visual position line to assembled with one automatic line.

Email:admin@amamachine.com

Whatsapp:+86 17758110836

Online Inquiry

Rigid-boxes Display



Main Technical Parameters:

MODEL

AM-540ZD

AM-640ZD

Max.Size of Box Making

(L×W×H)

500×400×120mm

600×400×120mm

Min.Size of Box Making

(L×W×H)

90×70×18mm

100×70×20mm

Box Making Speed

5-16pcs/min

5-16pcs/min

Air supply

≧0.6Mpa

≧0.6Mpa

Voltage

AC380V,50Hz

AC380V,50Hz

MachineDimension

(L×W×H)

1850×1360×2200mm

1950×1450×2200mm

Net Weight

1100kgs

1200kgs
