Rigid Box Wrapping Machine / AM-550AS Rigid Box Folding Machine

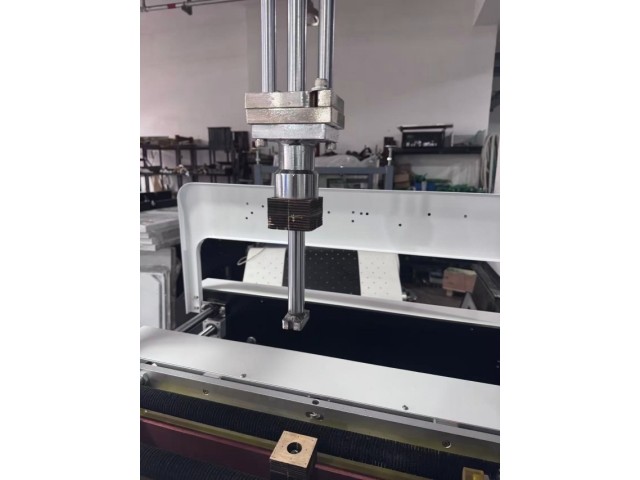

AM-550AS Rigid Box Folding Machine

● The machine driven by 2 servo-motors,pneumatic system and PLC programming control;
● It is automatic mold-size adjusting model which is easier and faster for mold replacing and machine debugging;
● The machine equipped with the brand components such as Schneider,Panasonic,AirTac,HIWIN,XINJE etc.
● Equipped with Infrared Safety-device to ensure safety for machine users;
● A cost-effective solution for rigid box packaging and it is an ideal machine for multiple-size box orders.

Email:admin@amamachine.com

Whatsapp:+86 17758110836

Online Inquiry

Rigid-box Display



Main Technical Parameters:

Model

AM-550AS

AM-550AC

AM-650AC

Max.size of box(L×W×H)

500×400×120mm

600×480×150mm

650×550×180mm

Min.size of box(L×W×H)

50×50×12mm

80×60×12mm

90×70×15mm

Work speed

5-20pcs/min.

5-20pcs/min.

5-20pcs/min.

Power

2.5kw

2.5kw

3kw

Air supply

≧0.6MPA

≧0.6MPA

≧0.6MPA

Voltage

AC220V,50Hz

AC220V,50Hz

AC220V,50Hz

Machine Dimension

(L×W×H)

1500×1100×2250mm

1650×1400×2200mm

1700×1470×2200mm

Net weight

1000kgs

1100kgs

1150kgs
