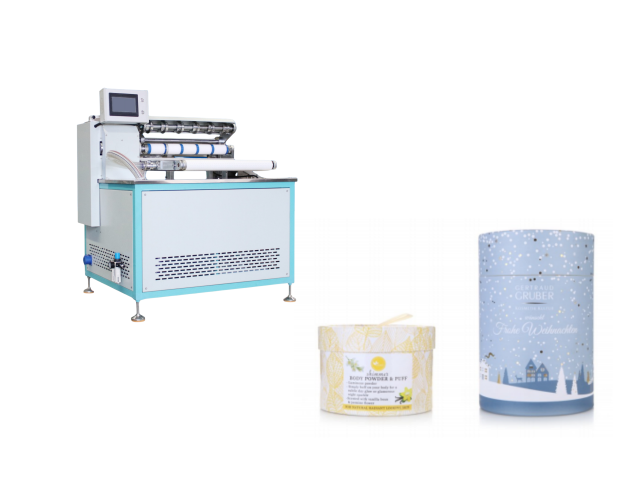

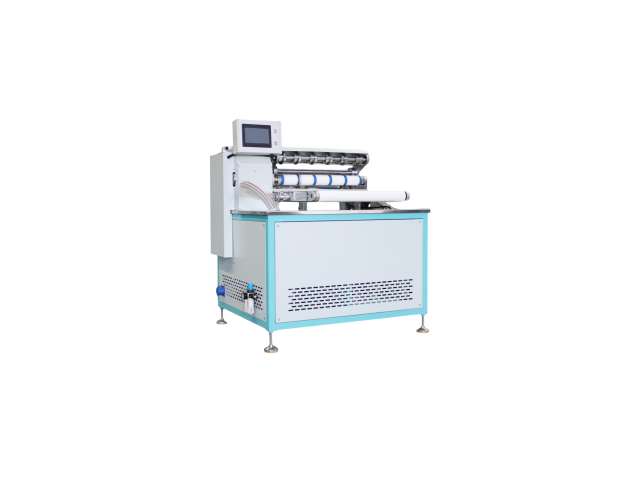

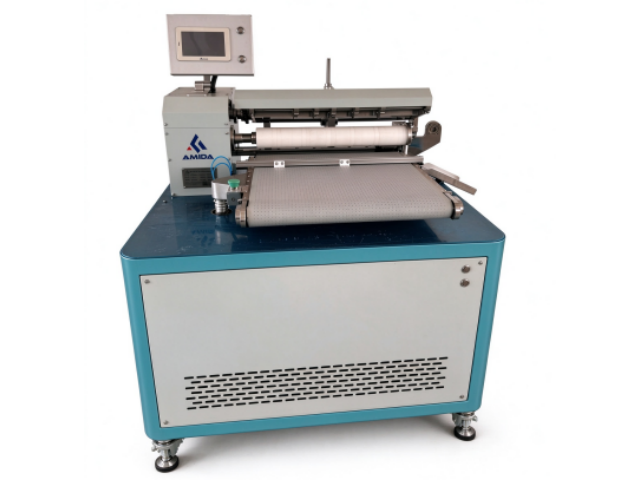

QLA-580C Tube Labeling Machine used for White-latex glue(cold glue) labeling process and automatic tube cutting after paper labeling.It is manually lable-paper placing,manually paper tube putting,automatic paper labeling and automatic paper-tube cutting.

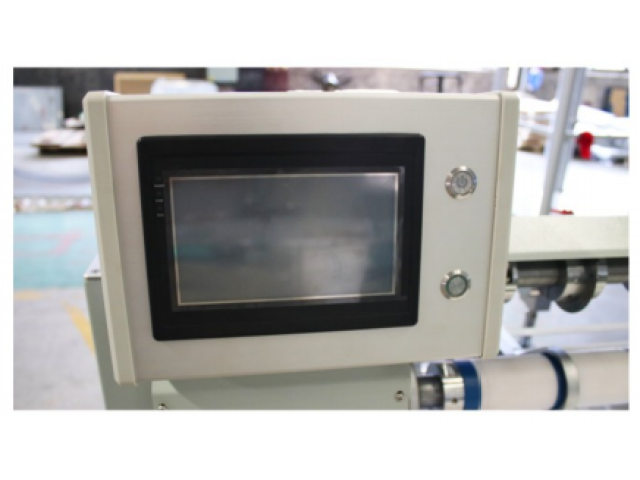

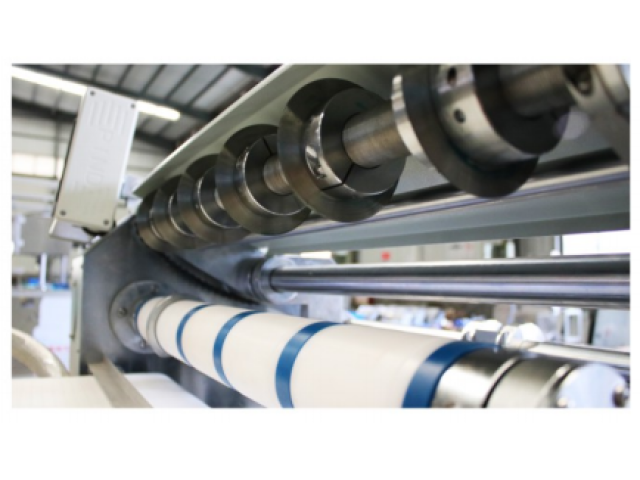

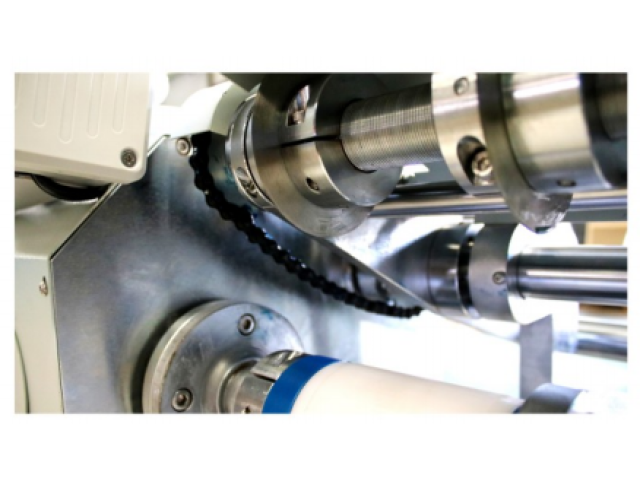

The machine equipped with Rotating cutters and it has the automatic tube delivering function after cutting,PLC system controlling and Touch screen operating.The molds processing is easy as well as the machine is easy operating and simple after-sale maintenance.
Email:admin@amamachine.com
Whatsapp:+86 17758110836

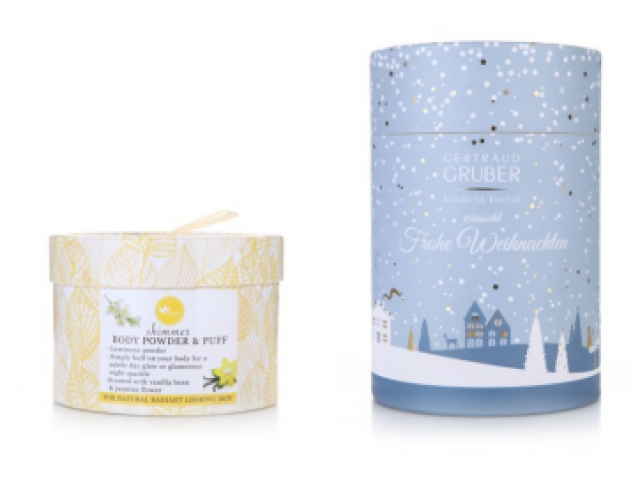

Products Display
MODEL
QLA-580C Cold-glue Labeling Machine
Diameter of paper tube
20mm-140mm
Length of paper tube
50mm-580mm
Working speed
1-30pcs/min(single-tube)
Glue Applying
Full-gluing
Applicable Paper-thickness
105g-157g
Rated Power
1.3KW
Air Supply
0.3MPA-0.5MPA
Voltage
AC220V,50Hz,1-PH
Dimension(L×W×H)
1270×1040×1500mm
Net Weight
200kgs
