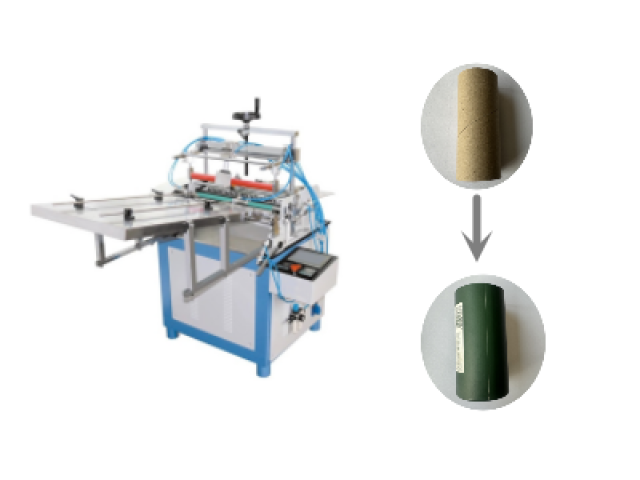

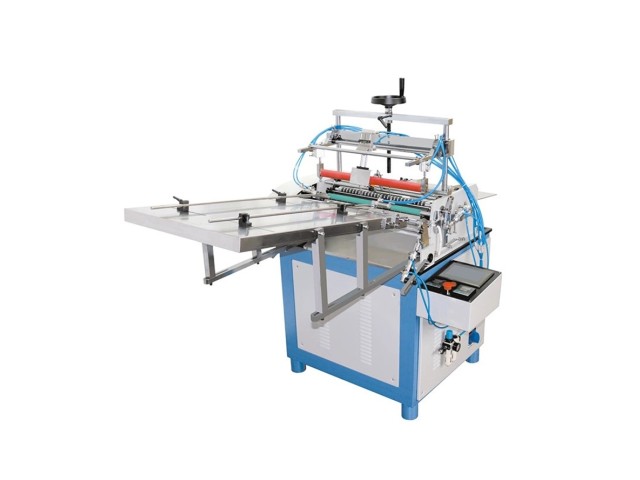

QL-500 Paper Tube Labeling Machine used for wrapping paper on the paper tubes,it is automatic paper feeding,automatic paper gluing and automatic paper labeling in line.The Hot-melt gluing unit equipped with glue temperature-control heater and protection device,PLC system controlling and Touch-screen operating,easy machine debugging and simple operating.
Email:admin@amamachine.com
Whatsapp:+86 17758110836

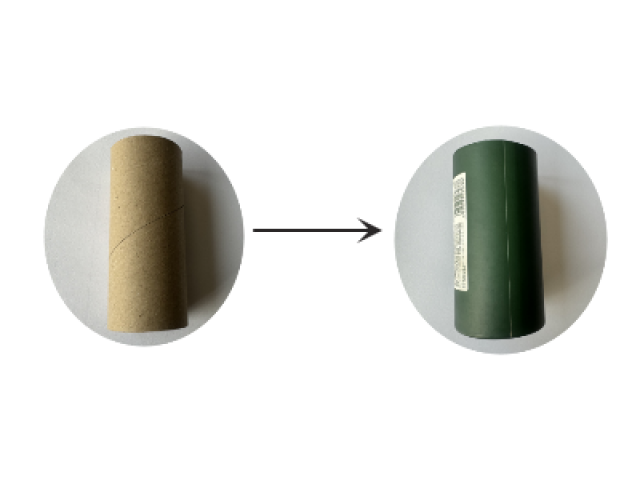

Product Process:
Main Technical Parameters：
|
MODEL |
QL-500 |
QL-650 |
|
Diameter of paper tube |
28mm-130mm |
28mm-130mm |
|
Length of paper tube |
50mm-500mm |
50mm-650mm |
|
Working speed |
10-30pcs/min. |
10-30pcs/min. |
|
Applicable Tube-thickness |
0.7mm-5mm |
0.7mm-5mm |
|
Applicable Paper-thickness |
100g-157g |
100g-157g |
|
Heating Power |
3KW |
3.7KW |
|
Air Supply |
0.6MPA-0.8MPA |
0.6MPA-0.8MPA |
|
Voltage |
AC220V,50Hz,Single-phase |
AC220V,50Hz,Single-phase |
|
Dimension(L×W×H) |
1070mm×1800mm×1500mm |
1220mm×1800mm×1500mm |
|
Net Weight |
370kgs |
450kgs |
