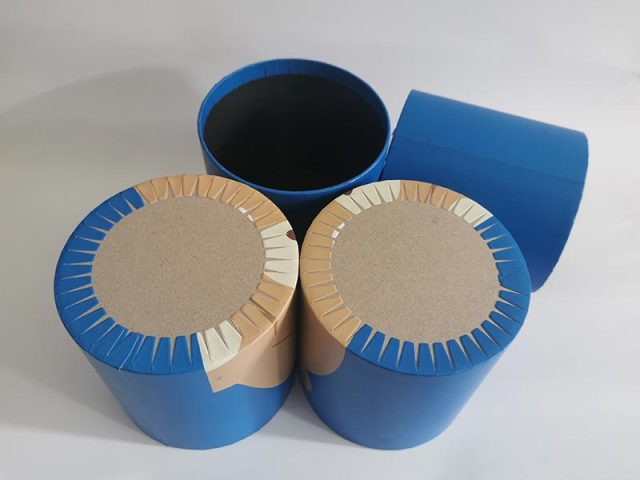

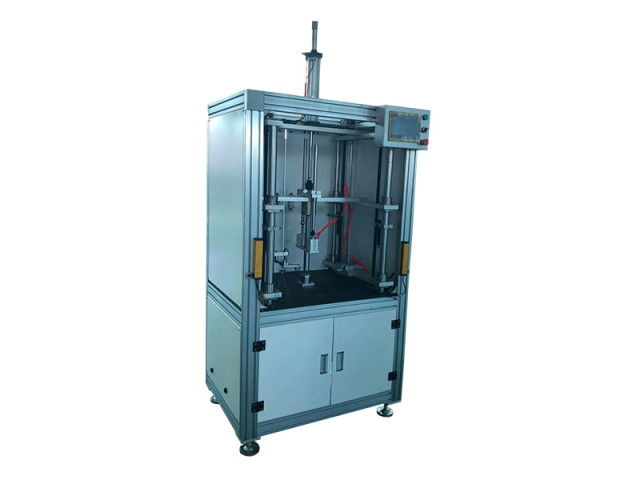

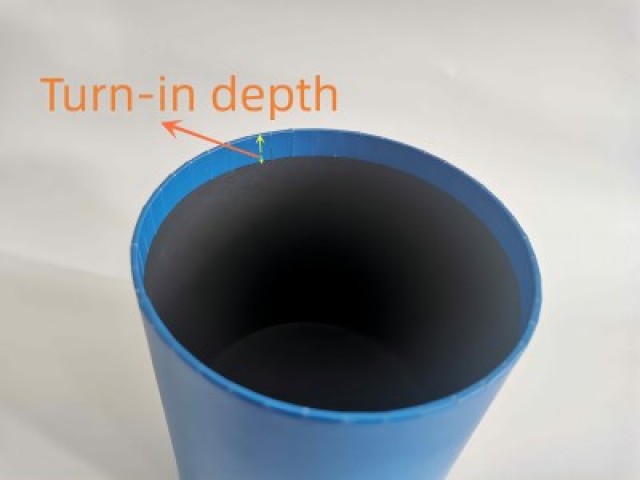

AM-ZG2530 Round box folding machine used for folding turn-in paper into round box after wrapping,PLC system controlling,intelligent operating and easy mold replacing.
The machine equipped with Safety Protective Device to guarantee safety for machine users.
Email:admin@amamachine.com
Whatsapp:+86 17758110836

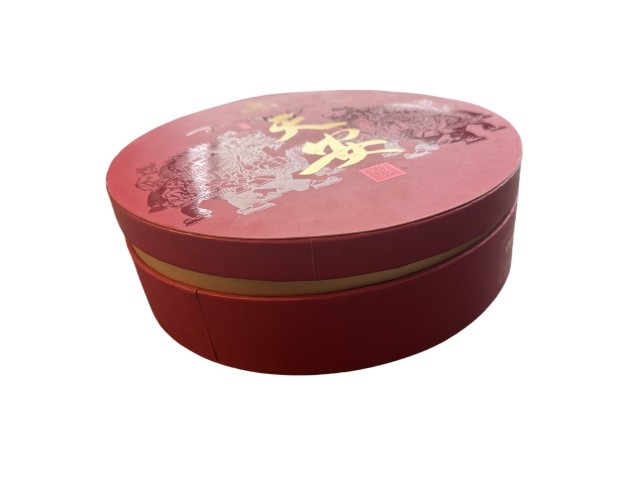

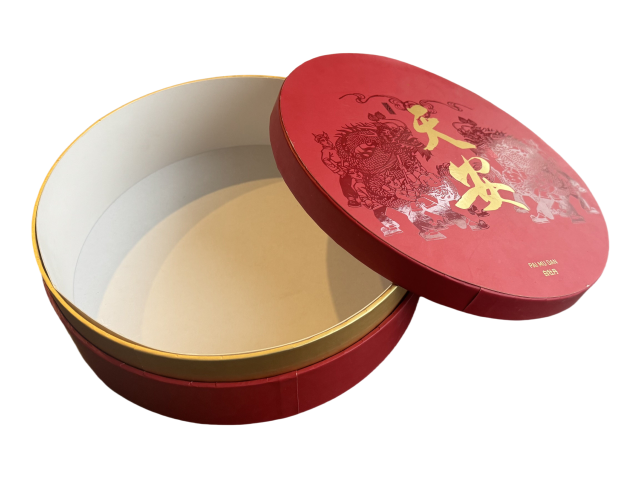

Circular Rigid-box Display
MAIN TECHNICAL PARAMETERS:
|
MODEL |
AM-ZG2530(S) |
AM-ZG2530 |
AM-ZG2530(Servo) |
|
Inner diameter of box |
50-200mm |
60-320mm |
60-500mm |
|
Height of box |
20-200mm |
20-250mm |
20-250mm |
|
Working speed |
300-500pcs/hour |
300-500pcs/hour |
|
|
Precision |
0.2mm-0.5mm |
0.2mm-0.5mm |
|
|
Air Supply |
≥0.3mpa |
≥0.3mpa |
|
|
Power |
600W |
1.1KW |
|
|
Voltage |
AC220V,50Hz,Single-phase |
AC220V,50Hz,Single-phase |
|
|
Layout Dimension (L×W×H) |
1230mm×700mm×2200mm |
1230mm×700mm×2200mm |
|
|
Net Weight |
220kgs |
300kgs |
|
|
Mold Debugging Time |
Around 30min. |
Around 30min. |
|
