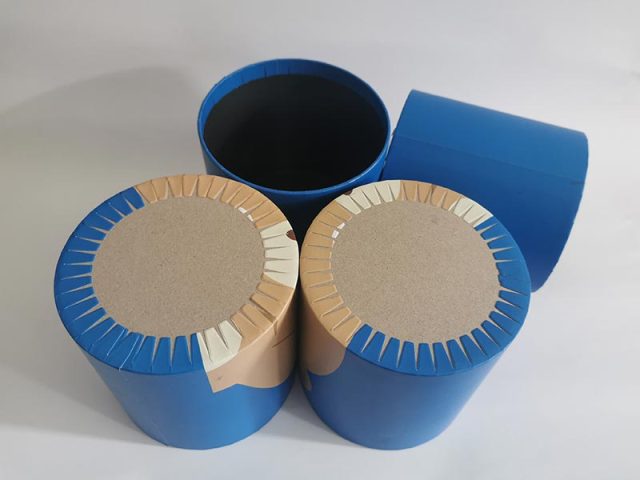

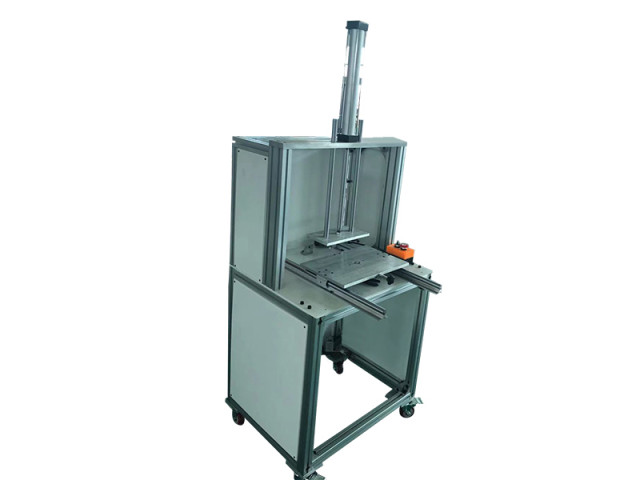

AM-Z2530 Circular box pressing machine used for pressing bottom round-sheet into round tube according to specific mold which customized by specific diameter of round tube,it’s also applicable to pressing bottom cover paper for round tube.
The improved model applied with De-moulding function on the machine which not only for Bottom sheet pressing but also adapt for Bottom cover-paper folding and pressing.
Email:admin@amamachine.com
Whatsapp:+86 17758110836
MAIN TECHNICAL PARAMETERS:
|
MODEL |
AM-Z2530 Round-box Pressing Machine |
|
Inner diameter of box |
60-480mm |
|
Height of box |
20-250mm |
|
Working Speed |
5-10pcs/min. |
|
Power |
150W |
|
Air Supply |
≥0.5mpa |
|
Voltage |
AC220V,50Hz,Single-phase |
|
Layout Dimension(L×W×H) |
900mm×830mm×1700mm |
|
Net Weight |
140kgs |
