● Upper-suction feeding for cardboard to prevent it from Double-sheeting feeding;
● Non-stop cardboard quick stacking and conversion device;
● Man-machine interface with PLC system controlling and servo pasting system;
● The replacement work of the various sizes of the cardboard is easy and fast as well as the mold-replacing work;

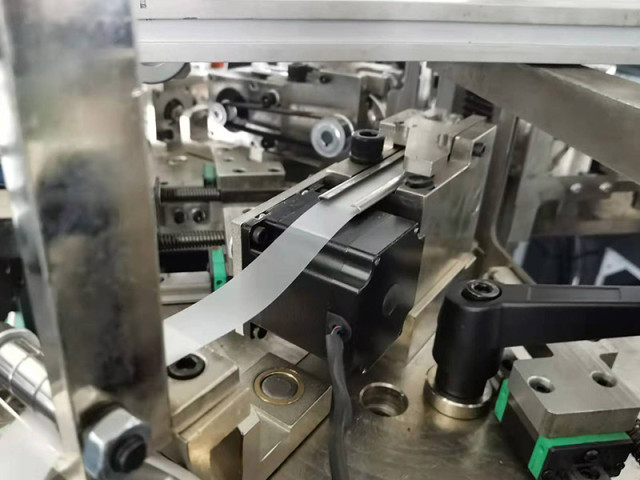

● Automatic tape-sending,automatic tape cutting and pasting enable four-corner pasted at one time;
● Automatic alarming system for running-out alarm for both cardboard and tape.
Email:admin@amamachine.com
Whatsapp:+86 17758110836
Main Technical Parameters：
|
Model |
AM-TJ430 |
AM-TJ500 |
AM-TJ640 |
|
Max.size of box |
440×380×120mm |
500×400×120mm |
600×400×150mm |
|
Min.size of box |
60×60×15mm |
80×80×15mm |
90×90×20mm |
|
Work speed |
20-40pcs/min. |
20-40pcs/min. |
10-40pcs/min. |
|
Applicable Tape(W) |
19mm |
19mm/22mm |
19mm/22mm/30mm |
|
Air supply |
≧0.6MPA |
≧0.6MPA |
≧0.6MPA |
|
Power |
3kw |
3kw |
3.5kw |
|
Machine Dimension (L×W×H) |
2040×1260×1890mm |
2000×2100×2200mm |
2650×2600×1890mm |
|
Net weight |
1400kgs |
1500kgs |
1700kgs |
