● Man-machine interface with PLC system controlling;
● Non-stop cardboard quick stacking and conversion device;
● The replacement work of the various sizes of the cardboard is easy and fast as well as the mold-replacing work;
● Belt-delivering mode for cardboard feeding,fast machine speed for mass production;
● Automatic tape-sending,automatic tape cutting and pasting enable four-corner pasted at one time;
● Automatic alarming system for running-out alarm for both cardboard and tape.
Email:admin@amamachine.com
Whatsapp:+86 17758110836

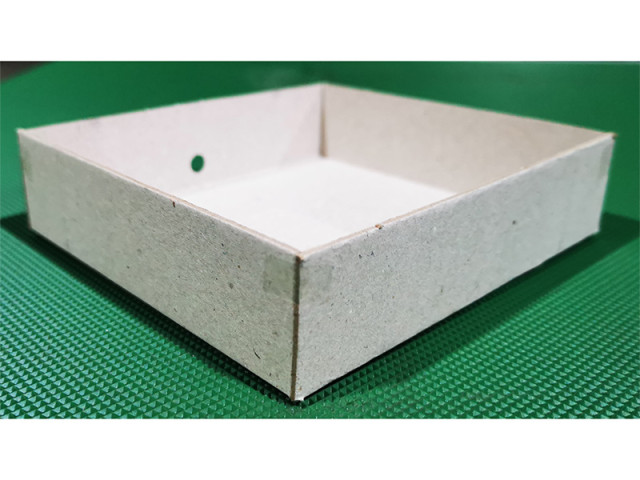

Rigid-box Corner-pasting Process
Main Technical Parameters：
|
Model |

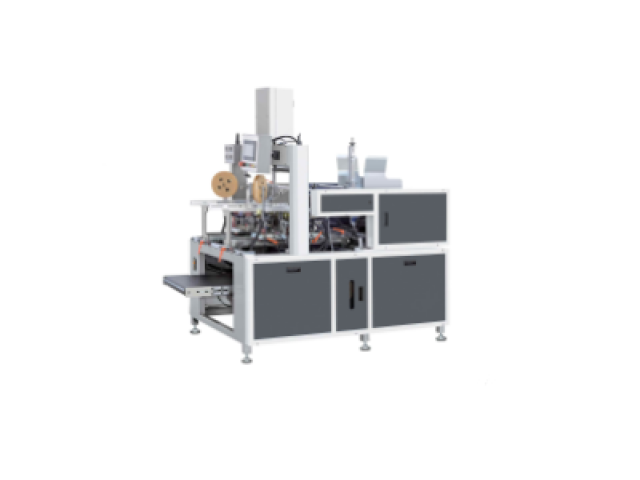

AM-TJ450 Rigid-box Corner Pasting Machine |
|
Max.size of box |
450×350×140mm |
|
Min.size of box |
50×50×15mm |
|
Max. Paper-board size |
650mm×550mm |
|
Work speed |
20-50pcs/min. |
|
Machine Dimension(L×W×H) |
2300×1200×2100mm |
|
Net weight |
1100kgs |
|
Air supply |
≧0.6MPA |
|
Power |
3kw |
