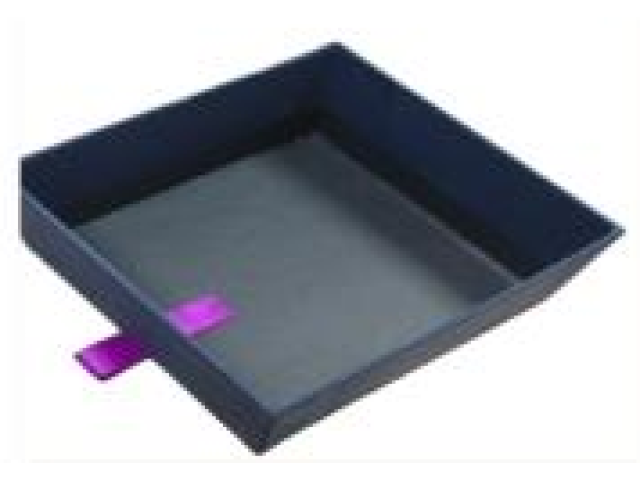

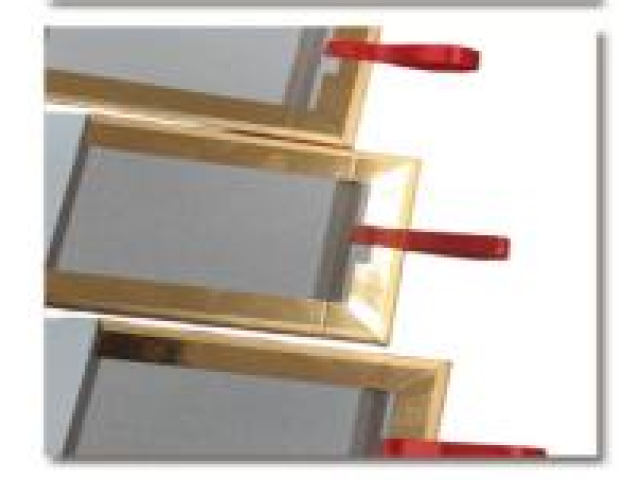

AM-P450 Ribbon pasting machine is applicable to pasting ribbon for both box and case,automatic ribbon length setting and cutting,automatic ribbon inserting,automatic hot-glue spraying and automatic ribbon pasting.
Email:admin@amamachine.com
Whatsapp:+86 17758110836
Machine Description:

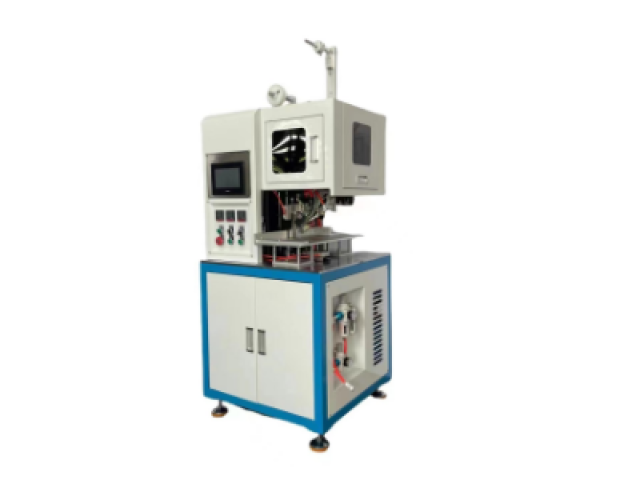

AM-P450 Ribbon pasting machine is applicable to pasting ribbon for both box and case,automatic ribbon length setting and cutting,automatic ribbon inserting,automatic hot-glue spraying and automatic ribbon pasting.The machine is PLC system controlled,ribbon-length setting is Stepper motor driven and the pasting action controlled by the servo motor and pneumatic system.The hot-melt glue spraying system is high pressure designed for the ribbon pasting with 2 liter volume.
Main Technical Parameters
|
MODEL |
AM-P450 Ribbon PastingMachine |
|
Applicable Box-size |
Max.350mm×350mm×100mm |
|
Min.50mm×50mm×10mm |
|
|
Applicable Case-width |
50mm-350mm |
|
Applicable Ribbon-width |
6mm-25mm |
|
Extended Ribbon-length over the punch hole |
10mm-60mm |
|
Working Speed |
1-20pcs/min |
|
Power |
2kw |
|
Voltage |
AC220V,50Hz,single-phase |
|
MachineDimension(L×W×H) |
550mm×600mm×1780mm |
|
Net Weight |
200kgs |
