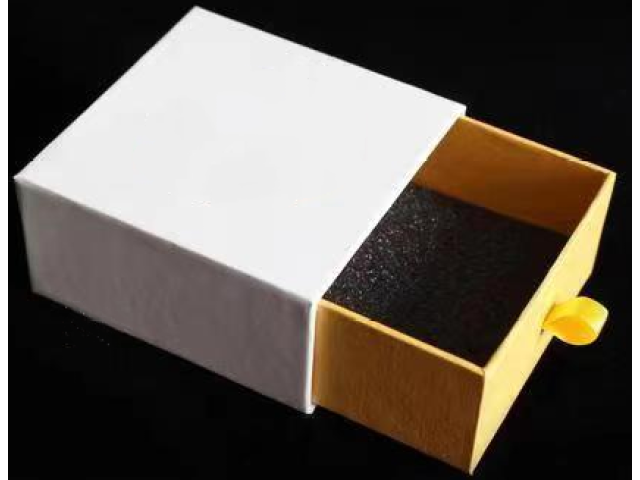

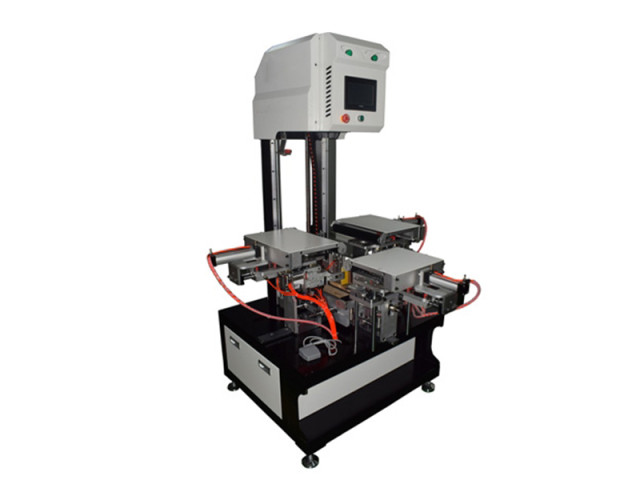

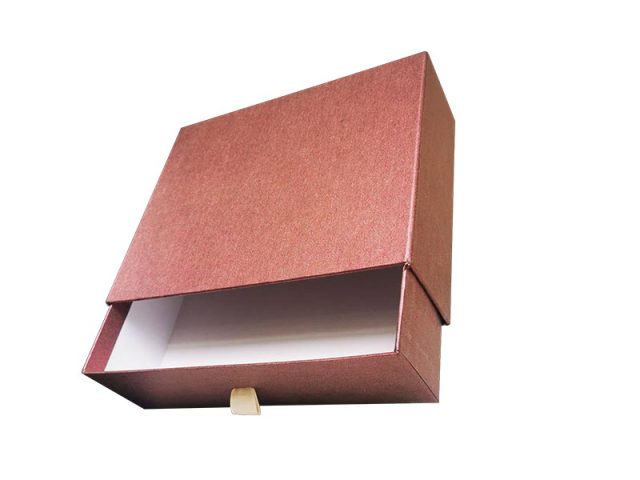

The machine used for producing slipcase box,wine box and the other boxes,it is capable to produce box max.350mm height.The vaccum suction equipped on the mold-unit enables the cardboard sheet sucked on the mold without corner pasting for paper wrapping.
Email:admin@amamachine.com
Whatsapp:+86 17758110836
Description:

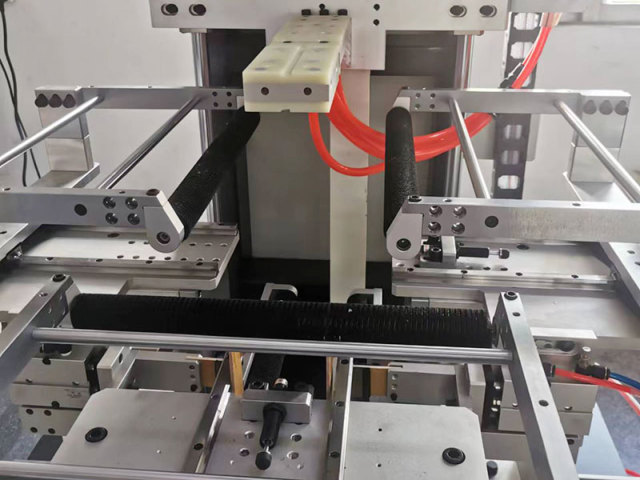

The machine used for producing slipcase box,wine box and the other boxes,it is capable to produce box max.350mm height.The vaccum suction equipped on the mold-unit enables the cardboard sheet sucked on the mold without corner pasting for paper wrapping. PLC system controlling to achieve the die-cutting modes of cardboard can be selected on the screen thus to save cardboard and paper materials as well as adapting multiple-requests for the finished box-look.
Main Technical Parameters
|
MODEL |
AM-D3012 Slipcase Box WrappingMachine |
|
Max.Box(L×W×H) |
300mm×120mm×350mm |
|
Min.Box(L×W×H) |
30mm×20mm×40mm |
|
Working Speed |
600-800pcs/hour |
|
Power |
2.5KW |
|
Air Supply |
>0.7MPA |
|
Voltage |
AC220V,50Hz,single-phase |
|
MachineDimension(L×W×H) |
2400mm×1300mm×2050mm |
|
Net Weight |
700kgs |
