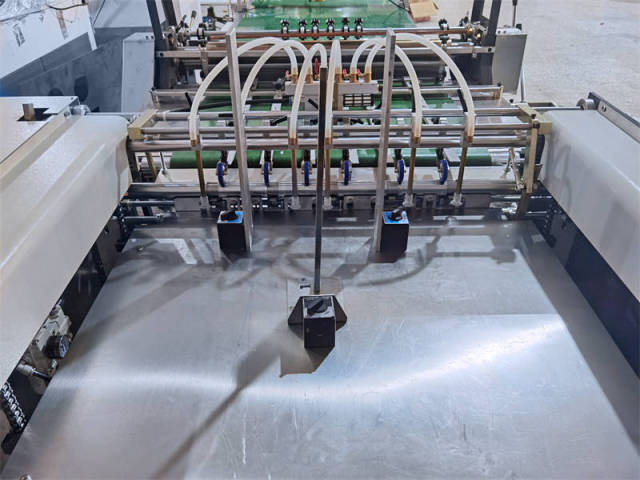

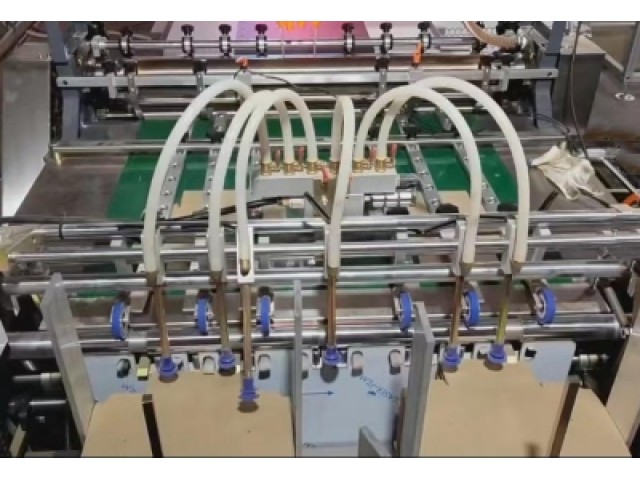

● Automatic sheet-feeding by front-edge suction for various sheet-sizes;
● Double-feeder paper pneumatic-feeding system;

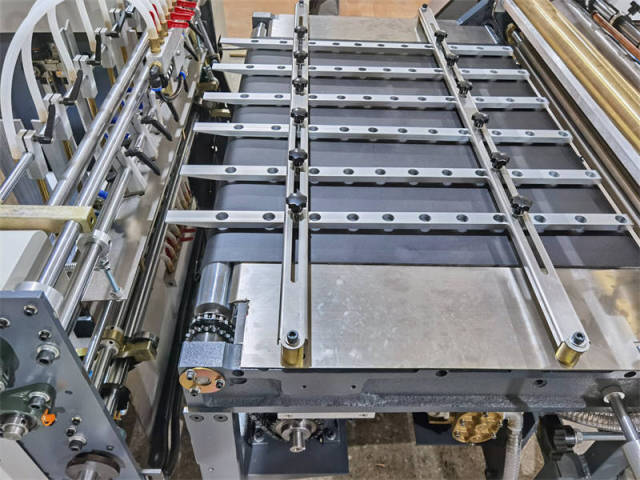

● With ball bearing design of feed table,the sheets are conveyed strait-through by pressure system;

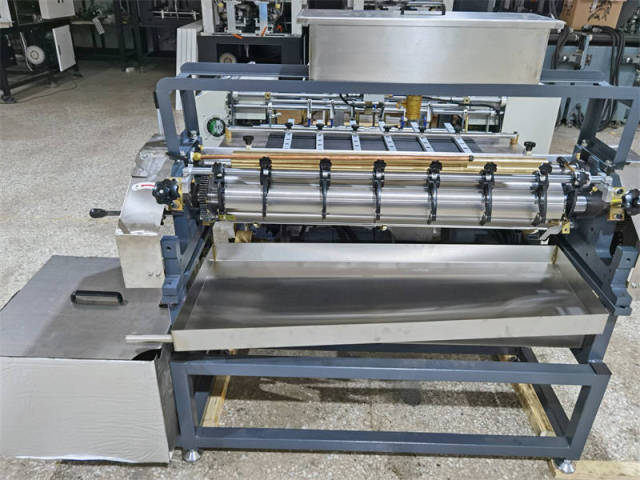

● Adjustable rollers apply smooth glue coating on the sheet surface;
● The circulating glue system with temperature controller assures the adequate glue consistency;

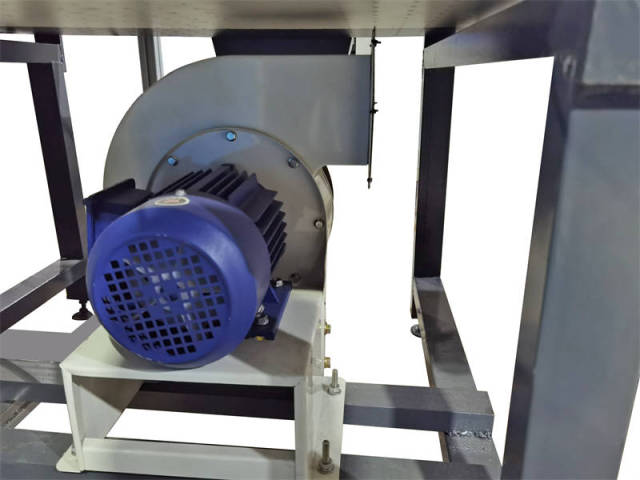

● Conveyor belt equipped with air-suction system to forward sheet flat and stably;
● Slant-conveyor design adapts small-size paper delivering and separated-motors controlling for the feeder,the gluing unit and the conveyor.
Email:admin@amamachine.com
Whatsapp:+86 17758110836
Main Technical Parameters：
|
MODEL |
AM-650B |
AM-850B |
AM-1050B |
|
Feeding Width of paper |
80mm-600mm |
80mm-800mm |
100mm- 1000mm |
|
Feeding length of paper |
150mm- 1000mm |
150mm- 1000mm |
160mm- 1000mm |
|
Thickness of paper |
100gsm-200gsm |
100gsm-200gsm |
100gsm-200gsm |
|
Gluing Speed |
10-40pcs/min |
10-40pcs/min |
10-40pcs/min |
|
Layout Dimension (L×W×H) |
(8300x 1700x1300)mm |
(8500x2000x1300)mm |
(8500x2200x1300)mm |
|
Conveyor size(L×W) |
6000mmx600mm |
6000mmx800mm |
6000mmx1000mm |
|
Net Weight |
950kg |
1050kgs |
1450kgs |
|
Power |
9kw |
11KW |
13kw |
|
Voltage Supply |
AC380V,50HZ |
AC380V,50HZ |
AC380V,50HZ |
