Intelligent Rigid Box Maker / A-600S Automatic Rigid Box Maker

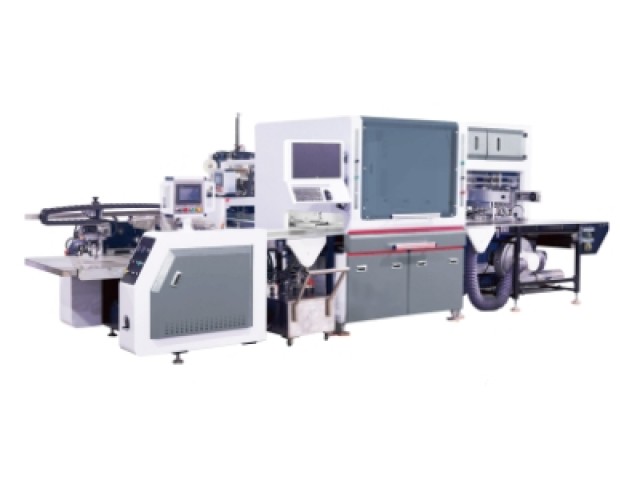

A-600S Automatic Rigid Box Maker

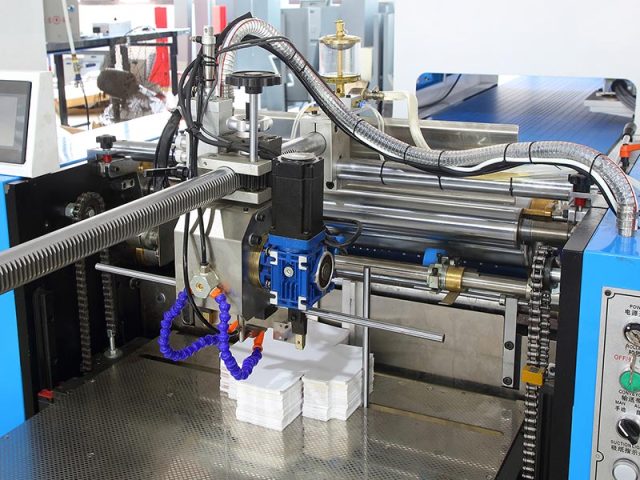

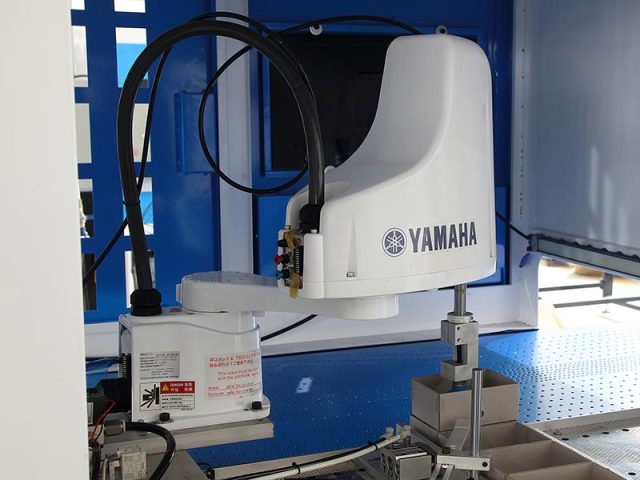

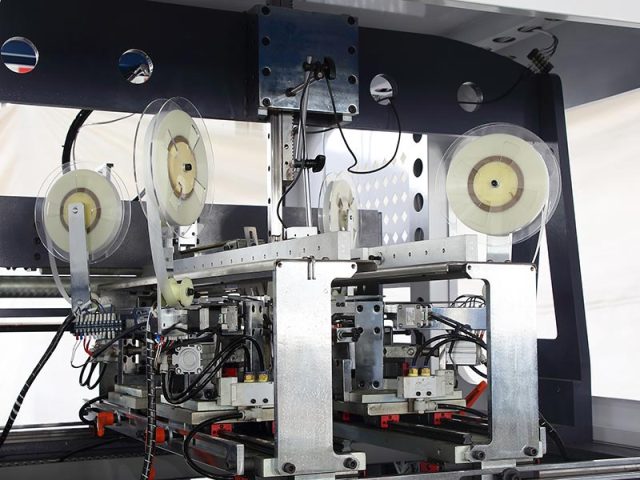

A-600S Automatic Rigid Box Making Machine consists of Automatic paper feeder,gluing unit, CCD Visual positioning system and YAMAHA SCARA,Automatic corner pasting section,Pneumatic box pressing section and Automatic Rigid Box wrapping section,to improve qualified rate of products and achieve intelligent operating;

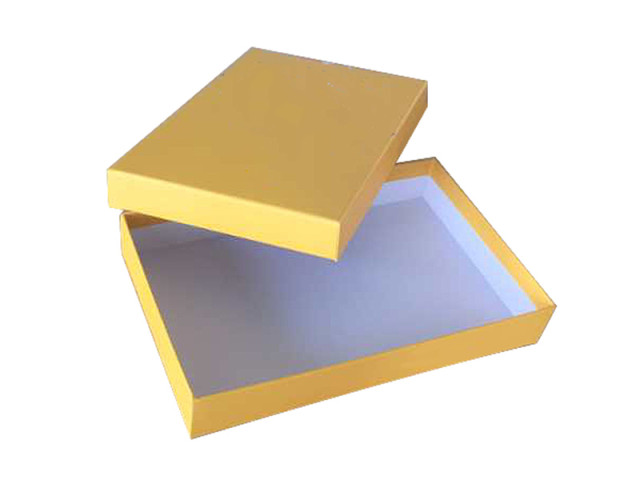

The machine is applicable to producing High-grade rigid box,plastic jewelry box,slant box,the certain corrugated box and the certain irregular boxes,it can automatically diagnose the troubles and alarm accordingly.

Email:admin@amamachine.com

Whatsapp:+86 17758110836

Online Inquiry

Performance characteristics:

1. The machine is fully automatic rigid box making line for mass production;

2. The machine in Modular design thus it can get a fine prospect of application and high utility value, each section can work separately or work in one line synchronously;

3. Budget-friendly solution for automatic rigid-box making and it can be extended to produce various products;

4. Automatic Mold-size setting and faster mold-replacing;

5. One piece 20 million pixel Industrial-camera in the visual positioning system, no need to move camera for different sizes;

6. Brand components ensure stable machine-running and durable quality:YAMAHA SCARA,Germany Balser camera,Japan Kowa LENS,Schneider and CHINT electric parts,AIRTAC/SMC pneumatic parts,HIWIN Guiderails;

7. Remote on-line support for the Visual system to ensure in-time after-sale online support.

8. Simple machine debugging and easy machine maintenance.


Main Technical Parameters:

MODEL

A-600S Automatic Rigid Box Maker

Cover Paper Size(D×C)

Max.850mm×610mm

Min.180mm×95mm

Box size of Visual positioning section(L×W×H)

Max.500×400×120mm

Min.50×50×12mm

Box size of Corner Pasting section(L×W×H)

Max.500×400×130mm

Min.80×80×15mm

Rigid Box Wrapping Size

(L×W×H)

Max.450×400×120mm

Min.90×70×18mm

Cover Paper Thickness

100gsm-200gsm

Max.cardboard-pile height

1000mm

Cardboard Thickness(t)

1mm-3mm

Turn in Depth Folding(R)

10-80mm

Ear corner-folding size

15-100mm

Precision

0.2-0.3mm

Positioning speed of box

1-16pcs/min

Corner-Pasting speed of box

30-40pcs/min.

Wrapping speed of rigid box

1-16pcs/min

Total Power

24kw

Voltage supply

AC380V,50Hz, 3-Phase 4-Line

Air Source Supply

0.8MPA

MachineDimension(L×W×H)

(6500×4500×2900)mm

Net Weight

6500kgs

Remark:

1. The max and mini sizes of the boxes are subjected to the sizes of cover paper and the quality of the paper.
2. Themachinespeed depends on the sizes of the boxes,glue condition ,cardboard thickness, turn in depth etc.

3.The max.and min.length,width and height of one box could not be made on same box.
