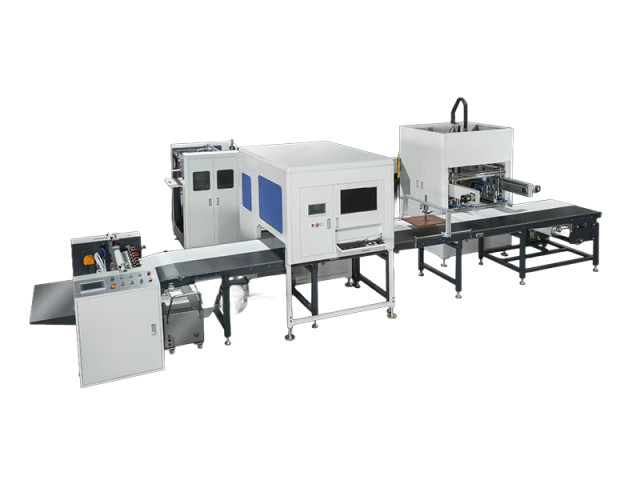

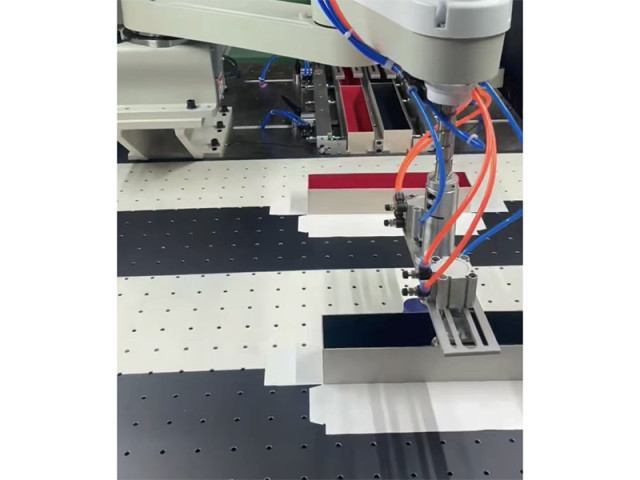

This fully automatic rigid box making machine consists of an automatic feeder paper-feed section, an automatic gluing section, a visual system and a robotic arm for automatic box positioning, an automatic corner-pasting section, a pneumatic box pressing section and an automatic forming section.
Email:admin@amamachine.com
Whatsapp:+86 17758110836
Products Diaplay
Features:
●This Fully Automatic Rigid Box Making Machine adopts a modular design, allowing each unit to operate independently or be integrated with other machines.Adjustments for changing box cover-paper and mold sizes are quick and easy, making it suitable for both large-batch production of a single size and smaller-quantity orders. It is a budget friendly solution for a fully automatic rigid box forming machine.
● The positioning system also handles certain irregular products,such as hexagonal box,octagonal box,circular box and so on.
Main Technical Parameters：
|
Model |
A-600SE |
||
|
Max.size of cover paper(W×L) |
780mm×1000mm |
||
|
Min.size of cover paper(W×L) |
70mm×90mm |
||
|
Corner Pasting |
Max.cardboard size |
620mm×680mm |
|
|
Min.cardboard size |
90mm×90mm |
||
| Box Height |
15mm-140mm |
||
|
Box Wrapping |
Max.rigid box(L×W) |
460mm×400mm |
|
|
Min.rigid box(L×W) |
80mm×60mm |
||
|
Rigid-box Height |
18mm-120mm |
||
|
Cardboard Thickness |
1mm-3.5mm |
|
|
|
Paper Thickness |
100gsm-250gsm |
||
|
Positioning speed |
5-20pcs/min. |
||
|
Air supply |
0.6-0.8MPA |
||
|
Voltage |
AC380V |
||
| Total Power | 22KW | ||
|
Overall Dimension(L×W×H) |
7200mm×4500mm×2500mm |
||
|
Net weight |
5500kgs |
||
