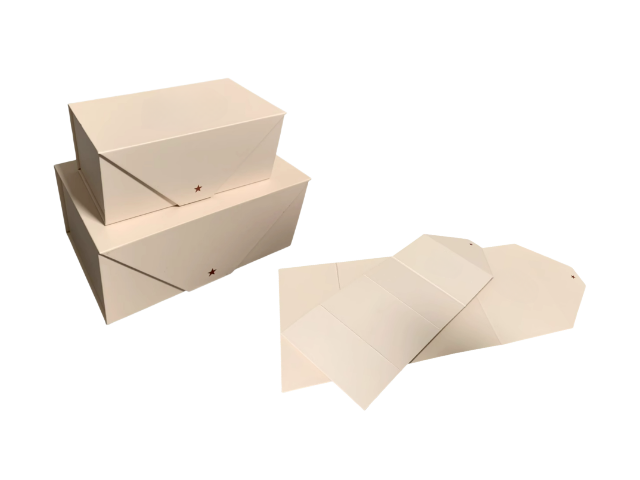

The machine adopts automatic visual positioning system with Robotic arm,it applies to producing high quality hardcover case and high-end packaging case,such as book cover, file folder, calendar case, album cover,luxury packaging case,phone case and so on.
Email:admin@amamachine.com
Whatsapp:+86 17758110836
Description:
The machine applies to producing high quality hardcover case and high-end packaging case,such as book cover, file folder, calendar case, album cover,luxury packaging case,phone case and so on.
It applied with Visual position system and Robotic arm for automatic cardboard positioning in high precision.
Main Technical Parameters
|
MODEL |
ZFM-700B |
|
Max.case size |
450mm×720mm |
|
Min.case size |
90mm×180mm |
|
Paper Thickness |
100-250g/㎡ |
|
Cardboard Thickness |
1-3mm |
|
Carboard Amount |
1-6pcs |
|
Min.width of spine |
8mm |
|
Min. width of Side-board |
25mm |
|
Positioning Precision |
0.1mm |
|
Working Speed |
20-35pcs/min. |
|
Power |
16kw |
|
Net weight |
3500kg |
|
Dimension(L×W×H) |
(8500×2600×1850)mm |
