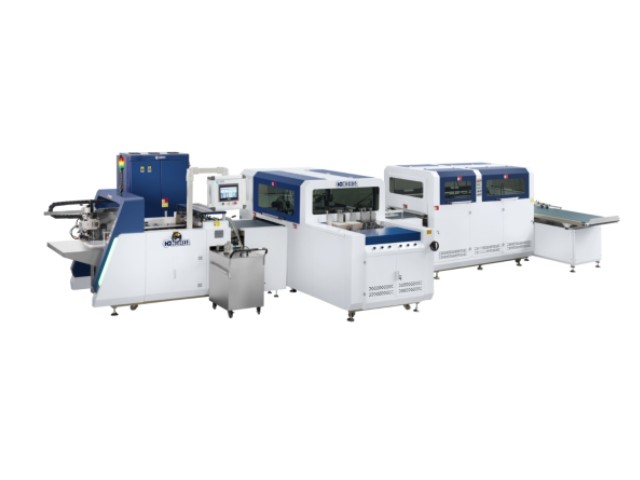

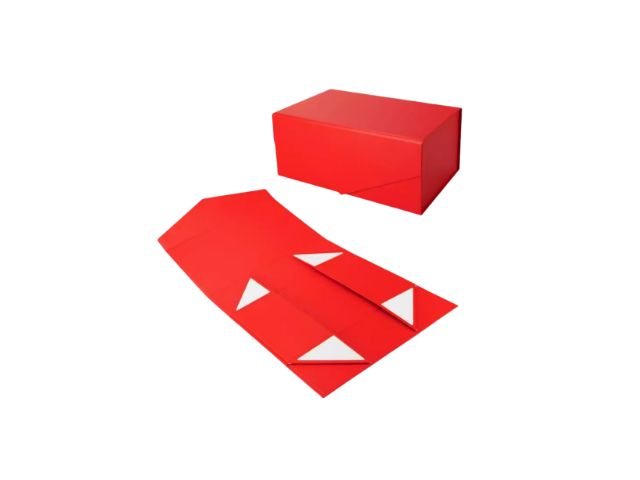

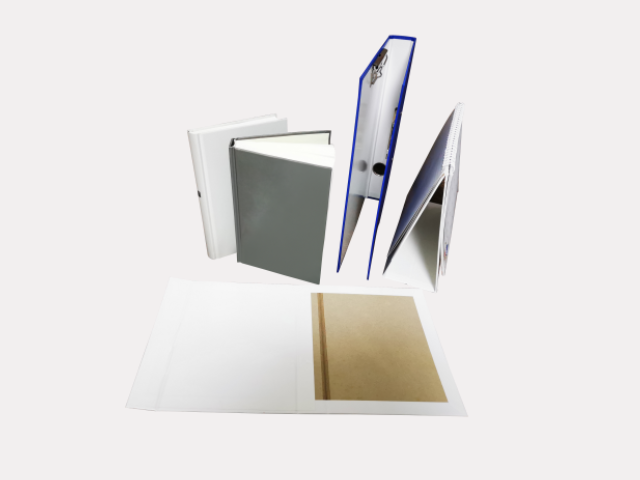

The machine is high-speed and fully-automatic case making machine for producing high quality hardcover case and high-end packaging case,such as book cover, gift case, file folder, calendar cover, album cover,luxury packaging case,phone case and so on.
Email:admin@amamachine.com
Whatsapp:+86 17758110836
Main Features:
Main Technical Parameters
|
MODEL |
ZFM-700A |
ZFM-900A |
|
Max.Case Size |
450mm×720mm |
450mm×950mm |
|
Min.Case Size |
90mm×180mm |
140mm×240mm |
|
Paper Thickness |
100-250g/㎡ |
100-250g/㎡ |
|
Cardboard Thickness |
1-3mm |
1-3mm |
|
Cardboard Amount |
1-6pcs |
1-6pcs |
|
Min.width of spine |
8mm |
8mm |
|
Positioning Precision |
±0.25mm |
±0.25mm |
|
Working Speed |
20-30pcs/min. |
15-25pcs/min. |
|
Power |
16KW | 17.5KW |
|
Voltage |
AC380V,3-PH |
AC380V,3-PH |
|
Dimension |
8.5m×2.6m×1.7m |
9.75m×2.6m×1.85m |
|
Net weight |
3500kg |
4000kg |
|
REMARK: 1. The maximum and minimum sizes of the covers are subjected to those of the paper and the quality of the paper. 2. The production speed may be affected by the cover sizes and the material and quality of paper and board. |
||
