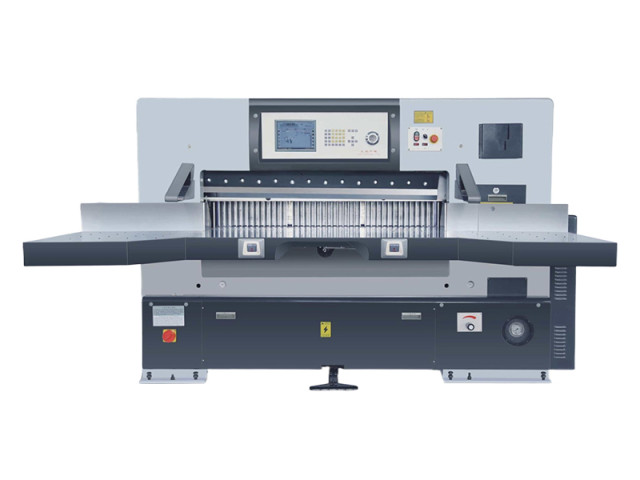

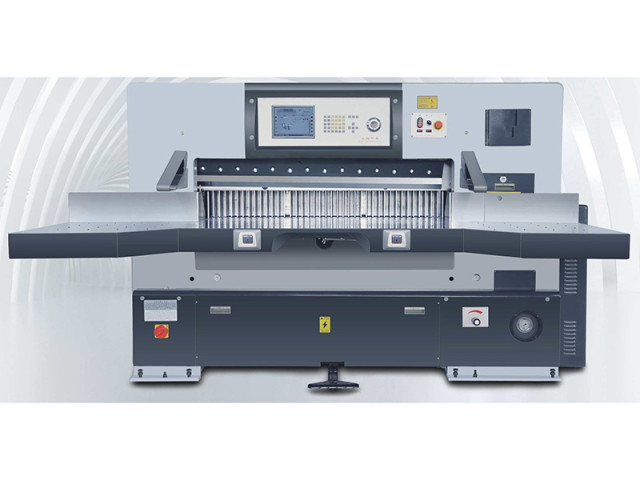

Y1150D Paper cutter is Double-hydraulic system and Double-guide Paper Cutting Machine.Double-guide paper feeding system which enables paper feeding high speed and high precision.
Email:admin@amamachine.com
Whatsapp:+86 17758110836
Machine Description:
Y1150D Paper cutter is Double-hydraulic system and Double-guide Paper Cutting Machine.Double-guide paper feeding system which enables paper feeding high speed and high precision.
The cutting system adopts the high wearable worm wheel decelerated transmission,friction clutch is controlled through hydraulic system to achieve bigger pressure from 200N to 55000N,ensuring cutting quality.

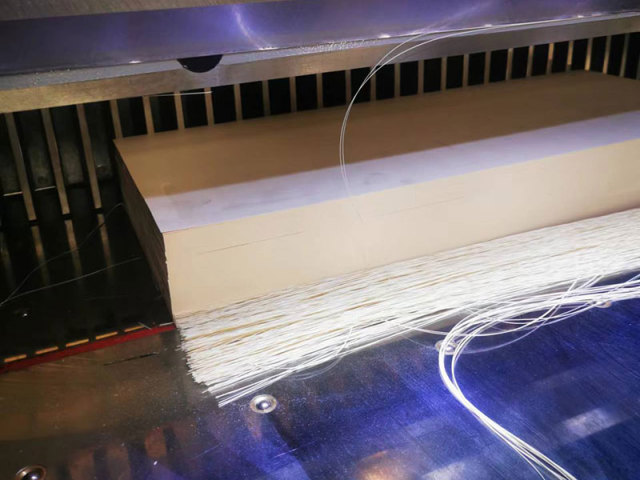

The machine applicable to cutting both cardboard and paper.
MAIN TECHNICAL PARAMETERS
|
MODEL |
Y1150D |
|
Max.cutting width |
1150mm |
|
Max.cutting length |
1160mm |
|
Max.cutting height |
165mm |
|
Main motor power |
4kw |
|
Min.cutting(without clamp) |
30mm |
|
Min.cutting(with clamp) |
100mm |
|
Working Speed |
45cycles/min. |
|
Width of machine(with side-way) |
2670mm |
|
Width of machine(without side-way) |
2370mm |
|
Net Weight |
3300kgs |
