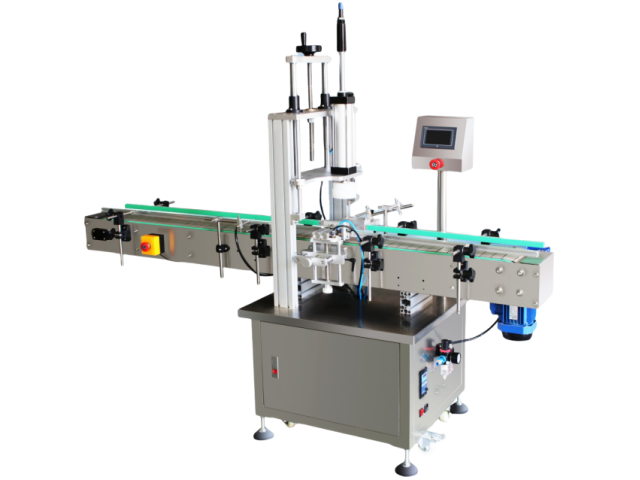

AM-150P Paper Lid Pressing Machine used for pressing the round disc inside the paper tube,automatic paper-tube delivering,automatic Fiber positioning for paper tube and automatic round disc pressing.

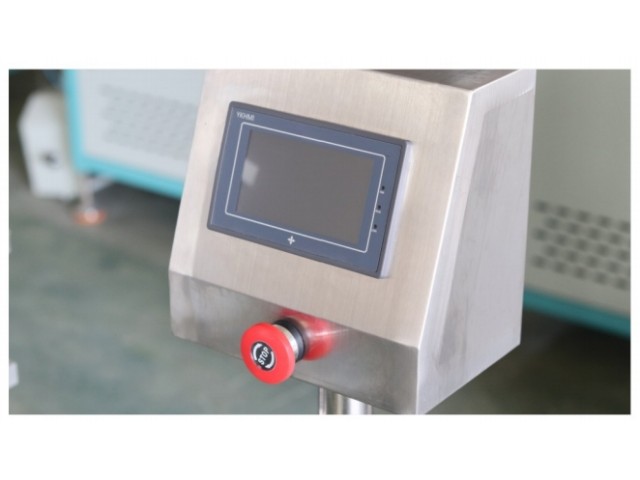

The machine applied with auto-stop when the paper-tubes run out,PLC system controlling and simple operating.
Email:admin@amamachine.com
Whatsapp:+86 17758110836
|
MODEL |
AM-150P Lid Pressing Machine |
AM-200P Lid Pressing Machine |
|
Diameter of Paper Tube |
⊘30mm-120mm |
⊘30mm-220mm |
|
Length of Paper Tube |
20mm-150mm |
20mm-200mm |
|
Working Speed |
30-50pcs/min |
30-50pcs/min |
|
Rated Power |
0.37KW |
0.37KW |
|
Air Supply |
0.4MPA-0.6MPA |
0.4MPA-0.6MPA |
|
Voltage |
AC220V,50Hz,1-PH |
AC220V,50Hz,1-PH |
|
Dimension(L×W×H) |
2000×680×1450mm |
2000×750×1450mm |
|
Net Weight |
100kgs |
120kgs |
