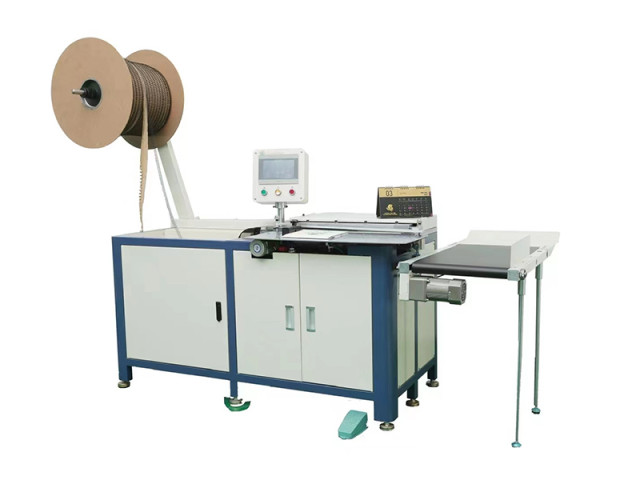

520AD Double-coil spiral binding machine used for automatically forming coil to Double spiral-loop,automatically double spiral-loop binding and automatically cutting and closing in line.The machine controlled by the PLC system,automatic trouble alarm and display,easy for trouble shooting and remedies.
Email:admin@amamachine.com
Whatsapp:+86 17758110836

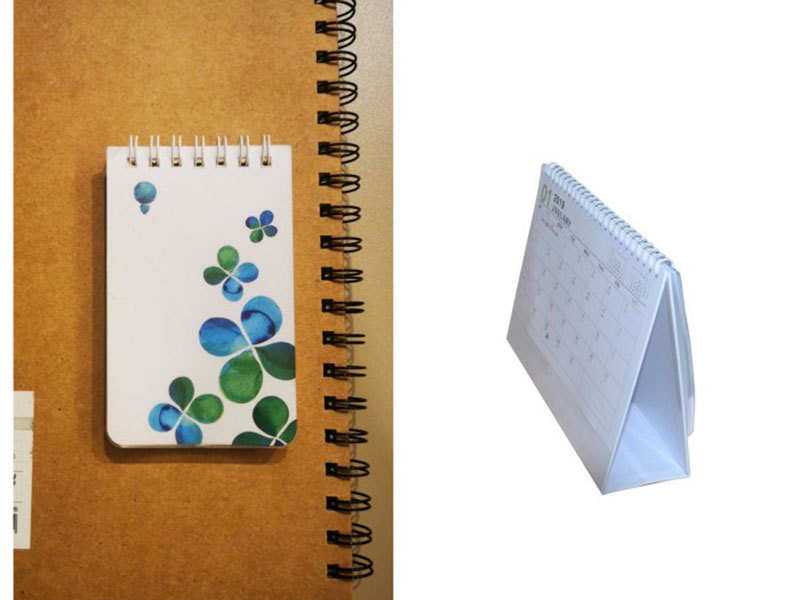

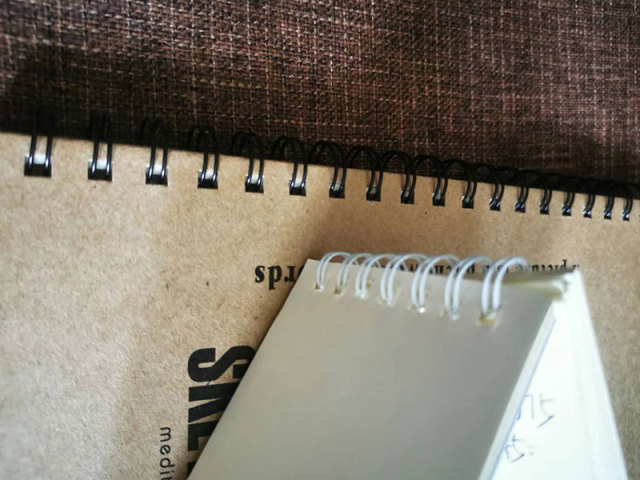

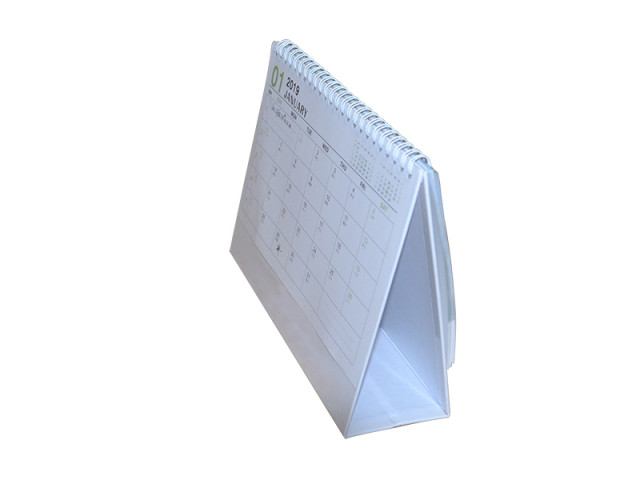

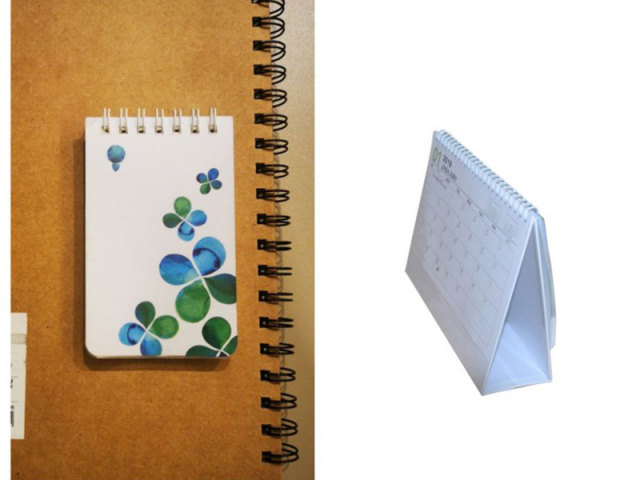

Double Spiral-binding Products Display
Main Technical Parameters
|
MODEL |
520AD Double-coil Binding Machine |
|
Applicable spiral-loop size |
1/4″-7/8″ |
|
Binding width |
70mm-520mm |
|
Working table |
660mm×300mm |
|
Binding thickness |
20mm |
|
Working speed |
5-20pcs/min. |
|
Power |
1.5KW |
|
Air supply |
0.6-0.8mpa |
|
Voltage |
AC220V,50Hz,Single-phase |
|
Layout Dimension(L×W×H) |
1880mm×1040mm×1640mm |
|
Net Weight |
450kgs |
