In the packaging and printing industry, cardboard grooving is a critical step in producing high-end gift boxes and precision packaging. A perfect V-shaped groove determines the smoothness of folding and the three-dimensional appearance of the finished product. However, many companies still face challenges such as insufficient grooving accuracy, excessive dust, and low efficiency. This article provides a systematic overview of efficient grooving solutions, covering equipment structure, technological evolution, and practical maintenance.
I. The Core Mission of a Grooving Machine: More Than Just "Cutting a Line"
The fundamental task of a cardboard grooving machine is to press precise V-shaped grooves into materials such as gray board, ivory board, and corrugated board. While this process may appear simple, it demands dual control over "force" and "position"—ensuring uniform groove depth and smooth edges without damaging the cardboard's fiber structure, which could affect subsequent folding or forming.
II. A "Hardware" Breakdown of Equipment Components
The precise operation of a high-performance automatic grooving machine relies on the coordination of the following key modules:
**Grooving Die (Grooving System)**
As the "executor" that directly contacts the cardboard, the tool holder is typically made of highly wear-resistant metal materials. The blades or creasing rules are custom-designed based on product requirements and must maintain sharpness and geometric precision under sustained high pressure—this is the first line of defense for clean groove quality.
**Feeding System**
Using belts combined with photoelectric sensors, the system achieves smooth and uniform cardboard delivery. This structure must include an alignment correction function to prevent cardboard skewing that could cause groove misalignment. For large-format cardboard in particular, stable feeding is a prerequisite for high yield rates.
**Precision Adjustment Mechanism**
Used for real-time adjustment of tool holder position, creasing depth, and groove spacing, enabling quick adaptation to different cardboard specifications.
**Stable Support Platform**
A high-strength tabletop combined with a pressing device ensures that the cardboard remains vibration-free and shift-free during high-speed operation, guaranteeing the straightness of grooving lines.
III. The Complete Grooving Workflow
The standard production process consists of four steps:
- **Preparation Stage**: Measure the cardboard according to order specifications and install the corresponding grooving tools.
- **Automatic Feeding**: The cardboard is smoothly fed into the machine through the feeding system, with the alignment correction device ensuring it stays centered during processing.
- **Precision Grooving**: As the cardboard passes through the grooving area, the cylinder and the belts hold it firmly while the grooving tools apply precise pressure to form V-shaped grooves. The entire process generates minimal dust and low noise, with no tearing damage to the cardboard.

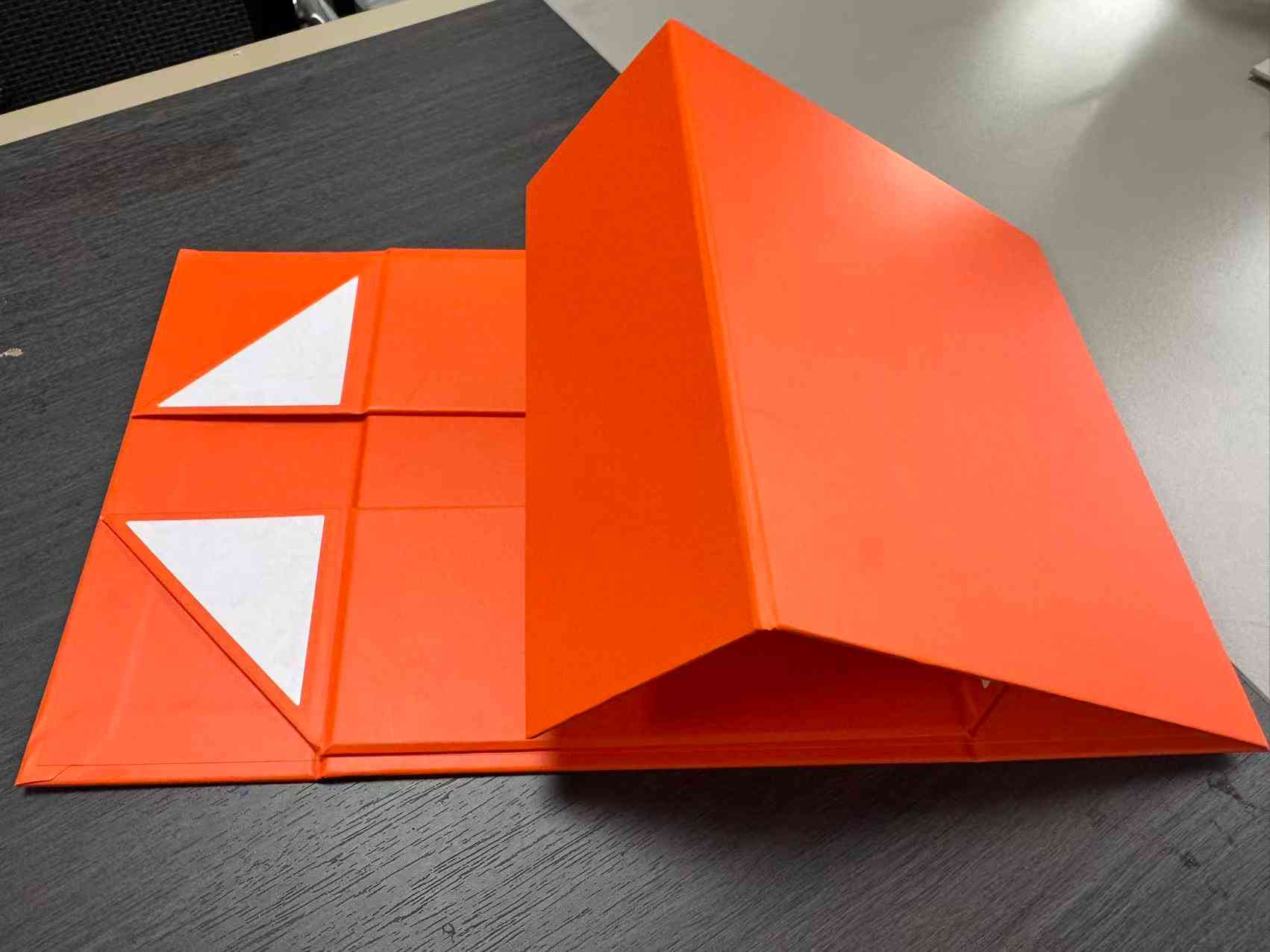

- **Finished Product Output**: The processed cardboard is neatly discharged and can proceed directly to box forming, cover making, calendar production, or other subsequent processes.
IV. Why the AM-KC1000A Is the Preferred Choice for High-End Packaging
Taking the
AM-KC1000A automatic grooving machine as an example, its technical highlights lie in the perfect combination of automation and mechanical rigidity:
- **Flexible Tool Adjustment**: Easily accommodates V-groove requirements as well as complex needs such as L-grooves and U-grooves.
- **Low-Noise and Eco-Friendly Design**: Utilizes low-noise transmission mechanisms and produces minimal dust, meeting green production standards.
- **Wide Applicability**: Compatible with various materials including gray board, corrugated board, and ivory board, meeting diverse needs for gift boxes, color boxes, and electronic packaging.
V. Routine Maintenance: The "Golden Rules" for Extending Equipment Life
Even the most sophisticated equipment requires systematic care. We recommend following the "Three Checks and Three Actions" maintenance plan:
- **Cleanliness Check**: Clean paper debris from the tool holder and feeding area daily to prevent tiny particles from affecting precision or scratching the cardboard surface.
The cardboard grooving machine is a key link in the packaging quality chain. From understanding equipment principles and mastering operational procedures to utilizing automated equipment and implementing standardized maintenance, every detail directly impacts the value of the final product. Choosing a grooving machine with high precision, fast response, and easy maintenance is not just a production investment—it is an investment in brand quality.
If you are seeking efficient and eco-friendly cardboard grooving solutions, we welcome you to follow our latest equipment updates and explore more possibilities in packaging technology together.
