Case Making Machinery / QCB450A/600A Automatic Case Making Machine

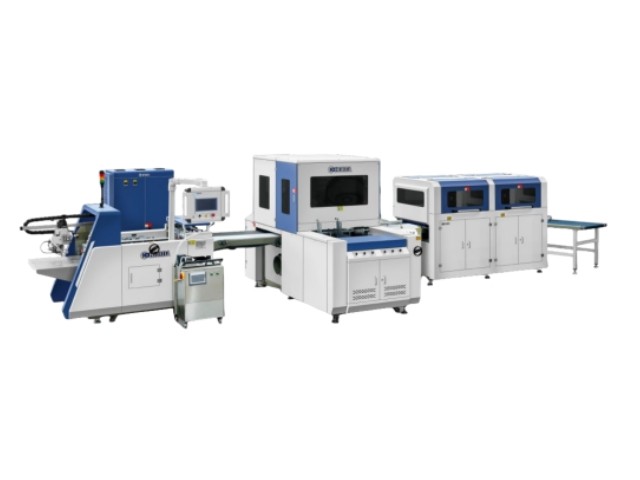

QCB450A/600A Automatic Case Making Machine

The machine adopts automatic visual positioning system with Robotic arm,it applies to producing high quality hardcover case and high-end packaging case,such as book cover, file folder, calendar case, album cover,luxury packaging case,phone case and so on.

Email:admin@amamachine.com

Whatsapp:+86 17758110836

Online Inquiry

Description:

The machine applies to producing high quality hardcover case and high-end packaging case,such as book cover, file folder, calendar case, album cover,luxury packaging case,phone case and so on.

The machine able to produce the regular 4 right-angle case and the Double-side irregular cases.

It applied with Visual position system and Robotic arm for automatic cardboard positioning in high precision.


Case-products Display



Main Technical Parameters

MODEL

QCB450A

QCB600A

Paper Length

190mm-830mm

190mm-1030mm

Paper width

100mm-460mm

100mm-630mm

Paper Thickness

80-200g/㎡

80-200g/㎡

Cardboard Thickness

1-3mm

1-3mm

Min.width of spine

8mm

8mm

Positioning Precision

0.1mm

0.1mm

Working Speed

≤30pcs/min.

≤30pcs/min.

Power

12kw

13kw

Net weight

4000kg

5000kg

Machine Dimension(L×W×H)

(9200×2100×2100)mm

(10000×2250×2100)mm
